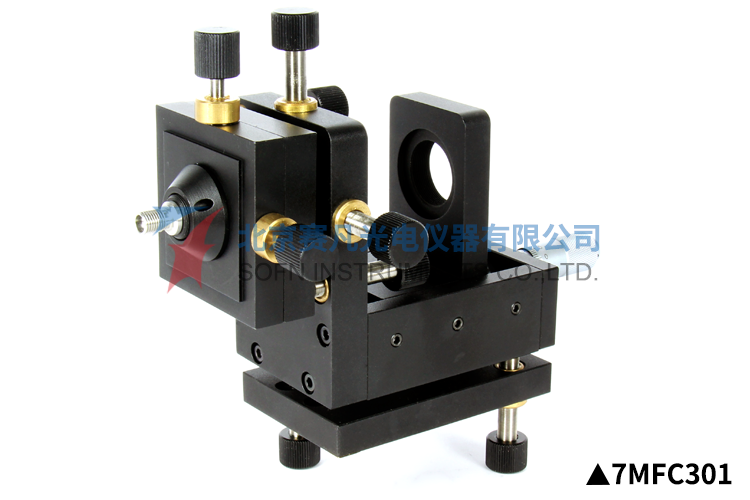

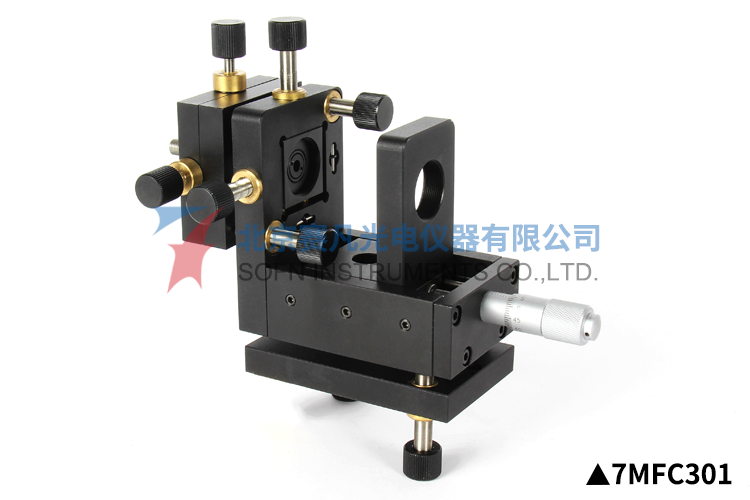

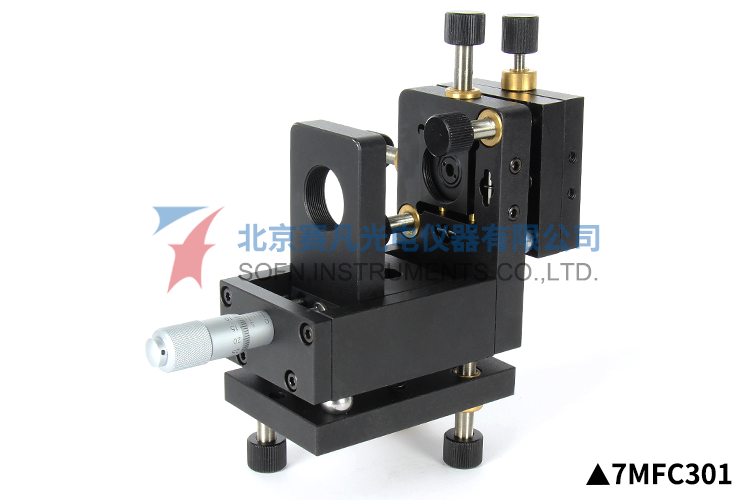

7MFC301 Fiber Coupler
7MFC301
1、Based on 7MFC3 fiber coupler, interchange with SMA905 plug and cancel the adjustment of X direction; 2、Micrometer makes microobjective movable and then makes the Tx range bigger and quantitative; 3、Precision lineat ball guide makes stable movement and high precision; 4、Biaxial inclination adjustable function,more convenient for coupling with the beam.
7MFC301 Fiber Coupler
Characteristics:
1、Based on 7MFC3 fiber coupler, interchange with SMA905 plug and cancel the adjustment of X direction;
2、Micrometer makes microobjective movable and then makes the Tx range bigger and quantitative;
3、Precision lineat ball guide makes stable movement and high precision;
4、Biaxial inclination adjustable function,more convenient for coupling with the beam.
Ancillary products:

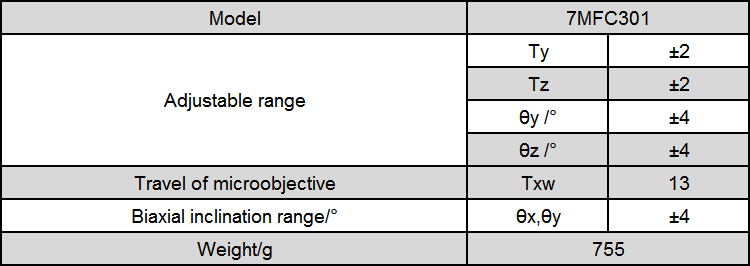

Specifications:

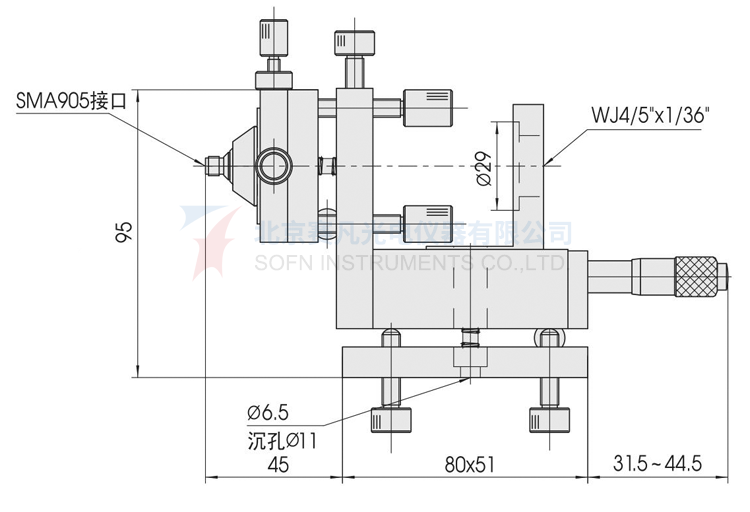

Product drawings:
7MFC301
