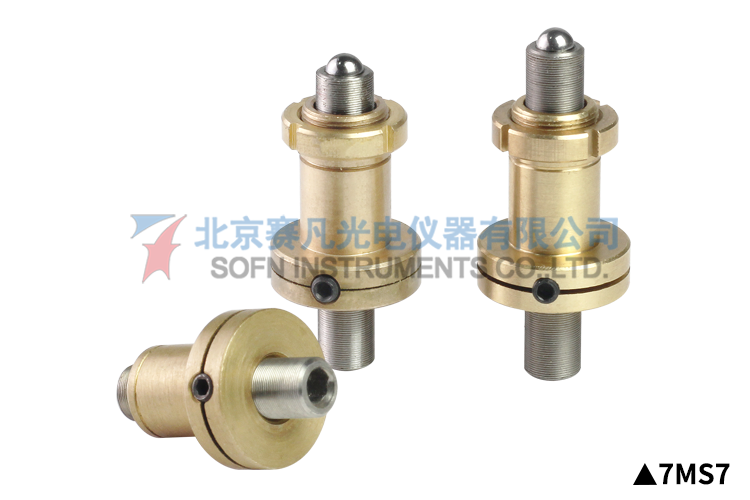

7MS7 Series Fine Screws
Model：
7MS706、7MS710、7MS713
Characteristics：
1、Ball head on the end,suitable for plane surface; 2、Without hand wheel on tail to save space,use the inner hexagon spanner to adjust; 3、Open nut,radial locking,saving space; 4、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by micrometer.
7MS7 Series Fine Screws
Characteristics:
1、Ball head on the end,suitable for plane surface;
2、Without hand wheel on tail to save space,use the inner hexagon spanner to adjust;
3、Open nut,radial locking,saving space;
4、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by micrometer.
Ancillary products:

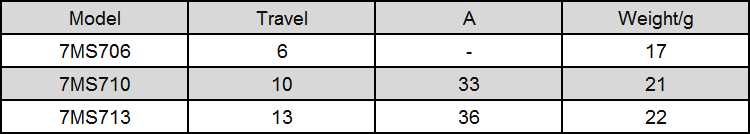

Specifications:

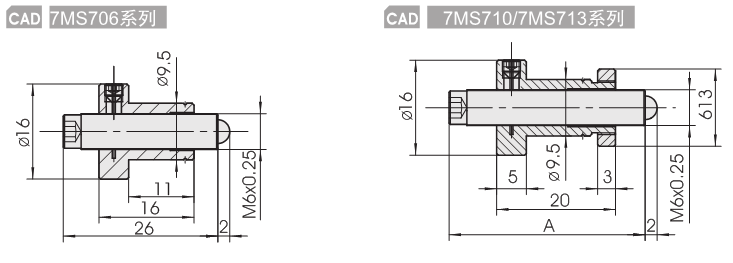

Product drawings:
7MS706、7MS710、7MS713
