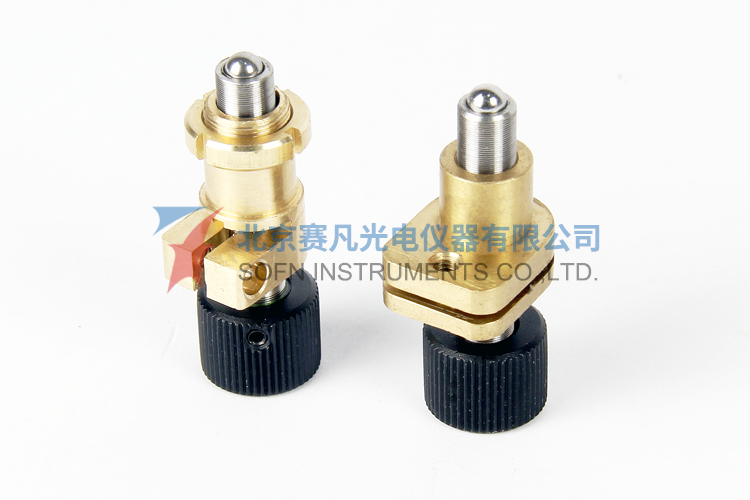

7MS5 Series Rxial Locking Screws / 7MS6 Series Radial Locking Screws
7MS513 / 7MS613、7MS525 / 7MS625
1、Ball head on the end,suitable for plane surface; 2、Hand wheel on the tail; 3、Open nut,axial locking (7MS5 series),saving space; 4、Open nut,radial locking (7MS6 series),saving space; 5、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by micrometer.

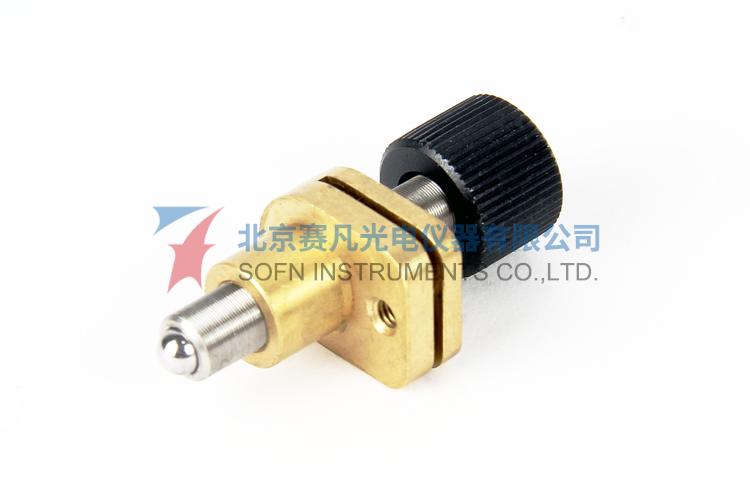

7MS5 Series Rxial Locking Screws

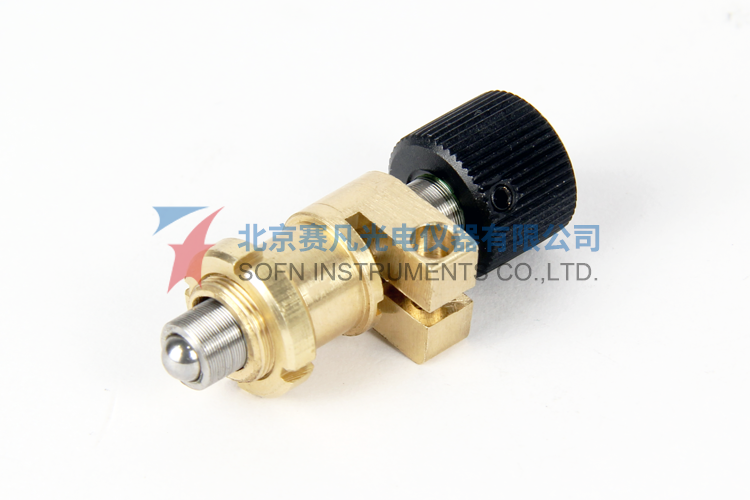

7MS6 Series Radial Locking Screws
Characteristics:
1、Ball head on the end,suitable for plane surface;
2、Hand wheel on the tail;
3、Open nut,axial locking (7MS5 series),saving space;
4、Open nut,radial locking (7MS6 series),saving space;
5、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by micrometer.
Ancillary products:

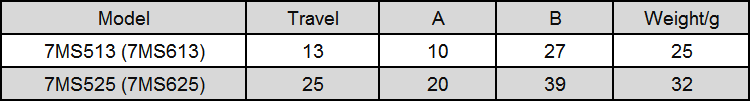

Specifications:

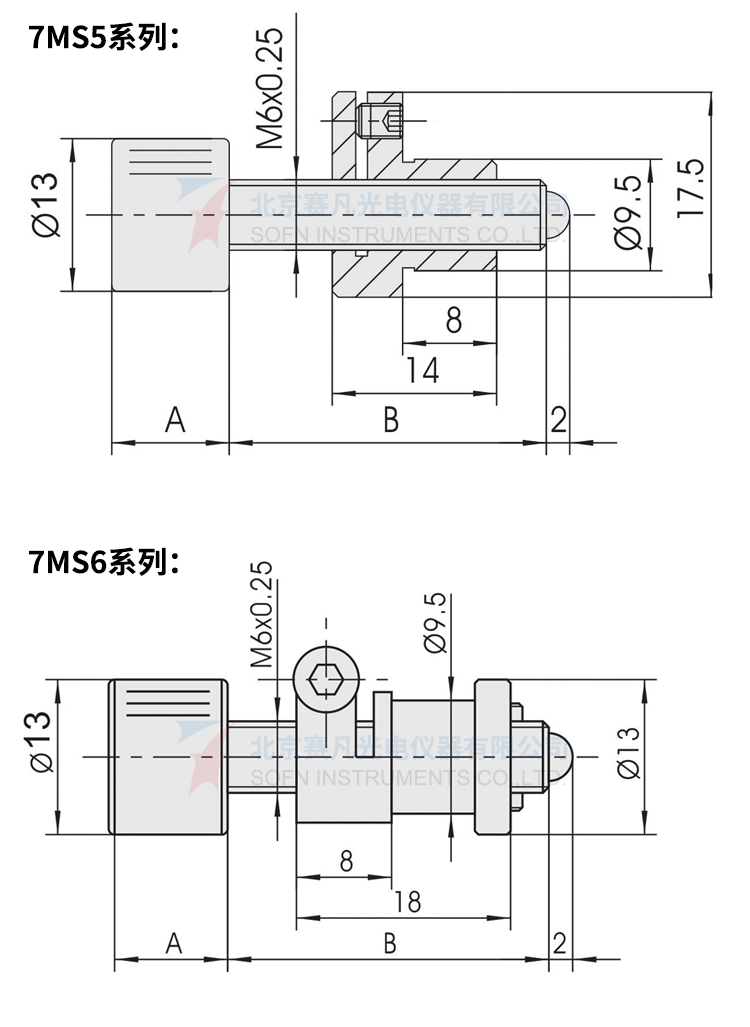

Product drawings:
7MS513、7MS525、7MS613、7MS625
