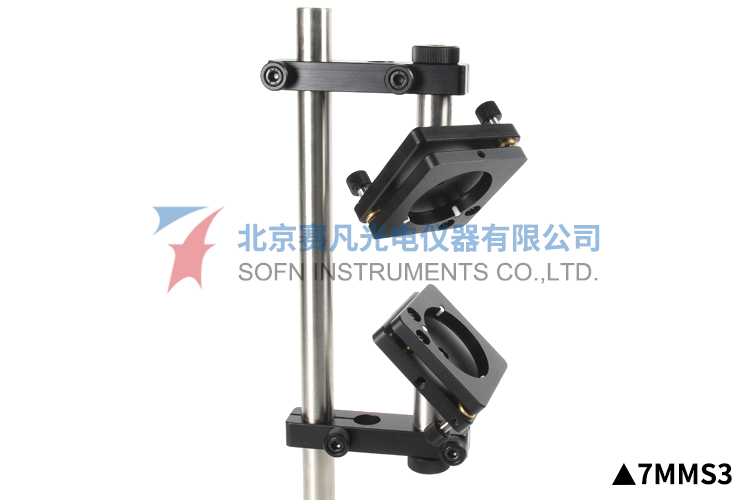

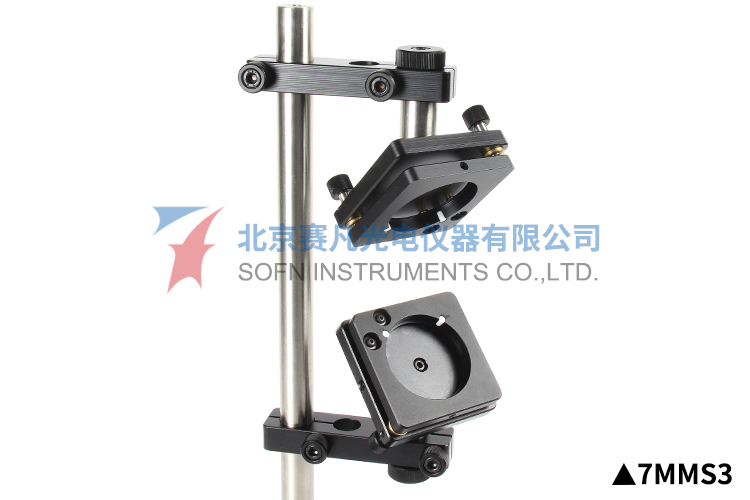

7MMS3 Series Beam Steerers
7MMS350、7MMS360
1、7MMS series beam steerers can change the direction or height of the beam; 2、For clamping large circular lens; 3、The mirror mount can be rotated 360° and tilt ±4°; 4、The adjustment uses M6×0.25 ultrafine screw; 5、They use belleville springs for reset with high precision and stability,standard stainless steele for support,convenient installation and good appearance.
7MMS3 Series Beam Steerers
Characteristics:
1、7MMS series beam steerers can change the direction or height of the beam;
2、For clamping large circular lens;
3、The mirror mount can be rotated 360° and tilt ±4°;
4、The adjustment uses M6×0.25 ultrafine screw;
5、They use belleville springs for reset with high precision and stability,standard stainless steele for support,convenient installation and good appearance.
Ancillary products:

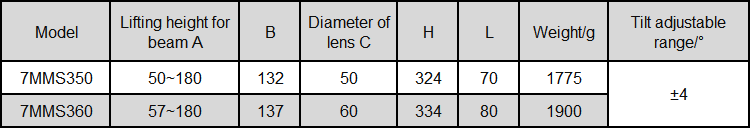

Specifications:

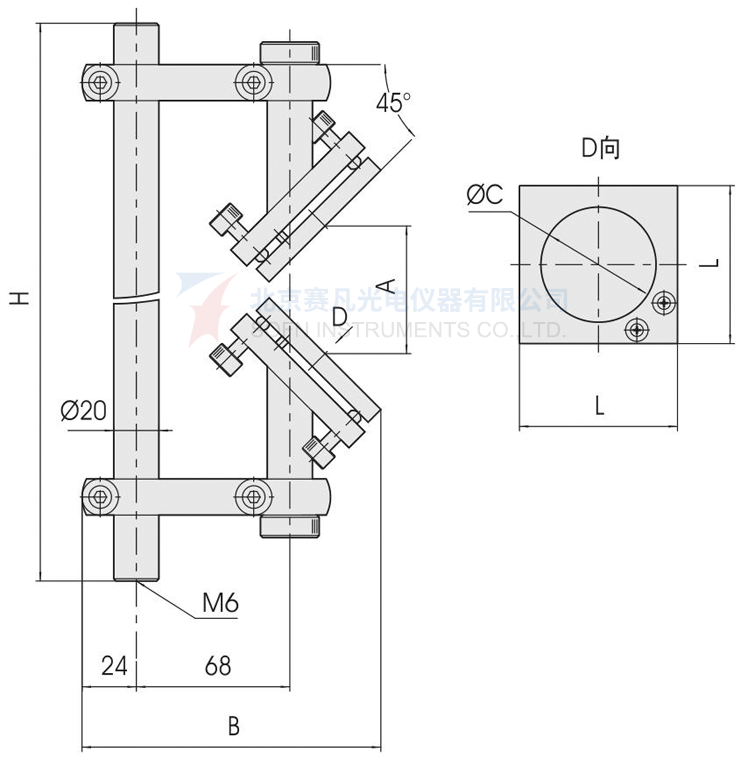

Product drawings:
7MMS350、7MMS360
