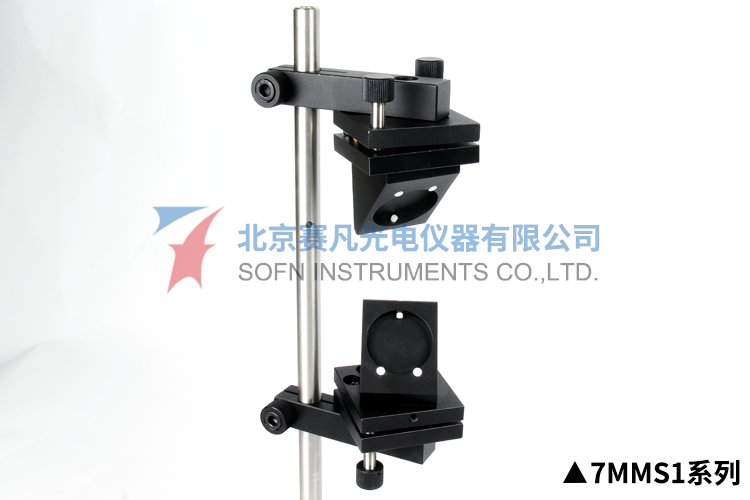

7MMS1 Series Beam Steerers
7MMS120、7MMS125、7MMS130
1、7MMS series beam steerers can change the direction or height of the beam; 2、Mirrors and prisms with various diameters can be clamped; 3、The mirror mount can be rotated 360° and tilt ±4°; 4、The adjustment uses M6×0.25 ultrafine screw; 5、They use belleville springs for reset with high precision and stability,standard stainless steele for support,convenient installation and good appearance; 6、For clamping small circular lens.
7MMS1 Series Beam Steerers
Characteristics:
1、7MMS series beam steerers can change the direction or height of the beam;
2、Mirrors and prisms with various diameters can be clamped;
3、The mirror mount can be rotated 360° and tilt ±4°;
4、The adjustment uses M6×0.25 ultrafine screw;
5、They use belleville springs for reset with high precision and stability,standard stainless steele for support,convenient installation and good appearance;
6、For clamping small circular lens.
Ancillary products:
Specifications:

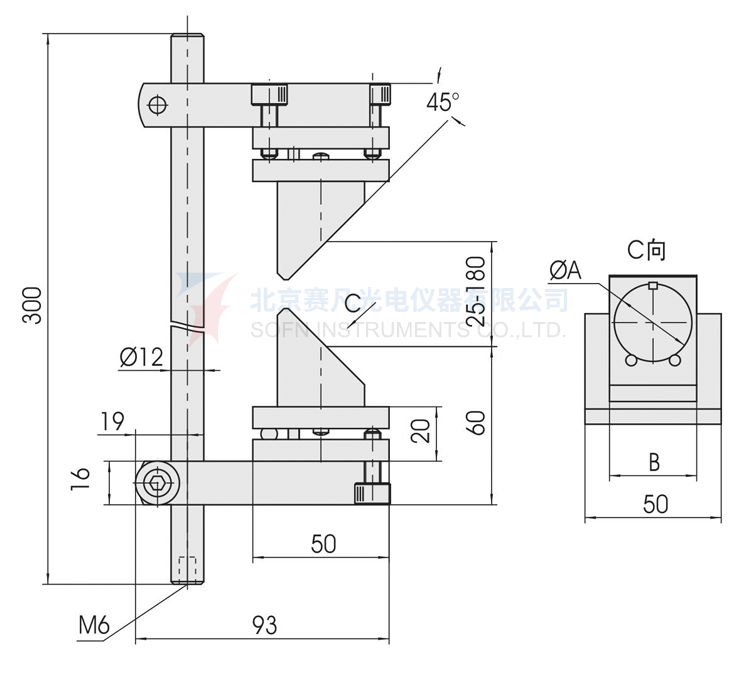

Product drawings:
7MMS120、7MMS125、7MMS130
