7SGA2 Series Motorized Goniometers
7SGA215、7SGA230
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Rotary adjustment,horizontal mounting surface,convenient for installation and fixing; 3、Driving by worm gear paired,ring balls guide rail combined with annualr steel,comfortable movement,precise and reliable; 4、High quality elastic coupling for connecting motor and worm,synchronous transmission and little noise; 5、With zero and limit switch,convenient for accurate positioning and protection.

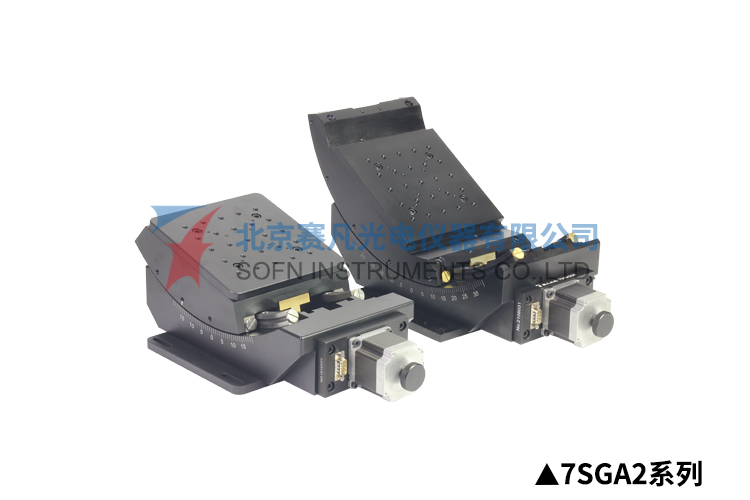

7SGA2 Series Motorized Coniometers
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Rotary adjustment,horizontal mounting surface,convenient for installation and fixing;
3、Driving by worm gear paired,ring balls guide rail combined with annualr steel,comfortable movement,precise and reliable;
4、High quality elastic coupling for connecting motor and worm,synchronous transmission and little noise;
5、With zero and limit switch,convenient for accurate positioning and protection.
Ancillary products:

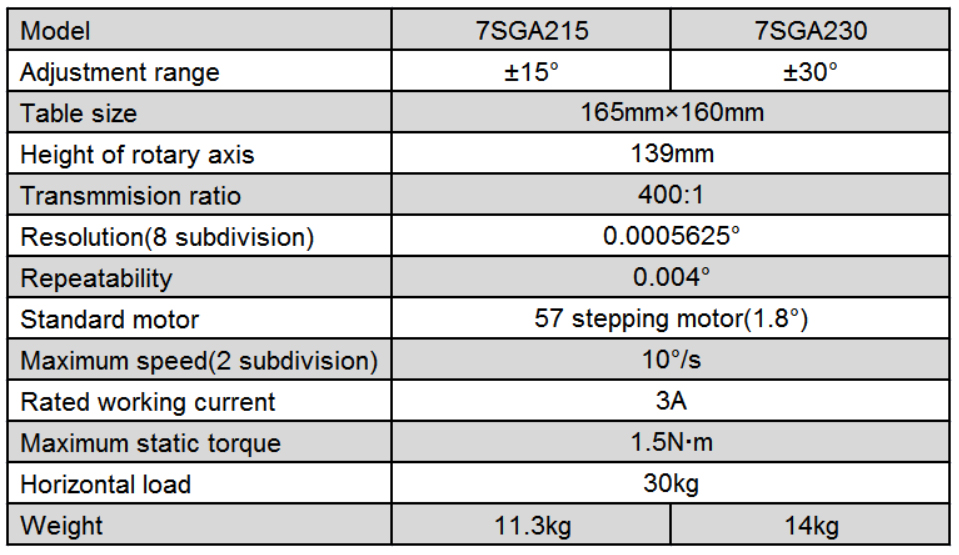

Specifications:

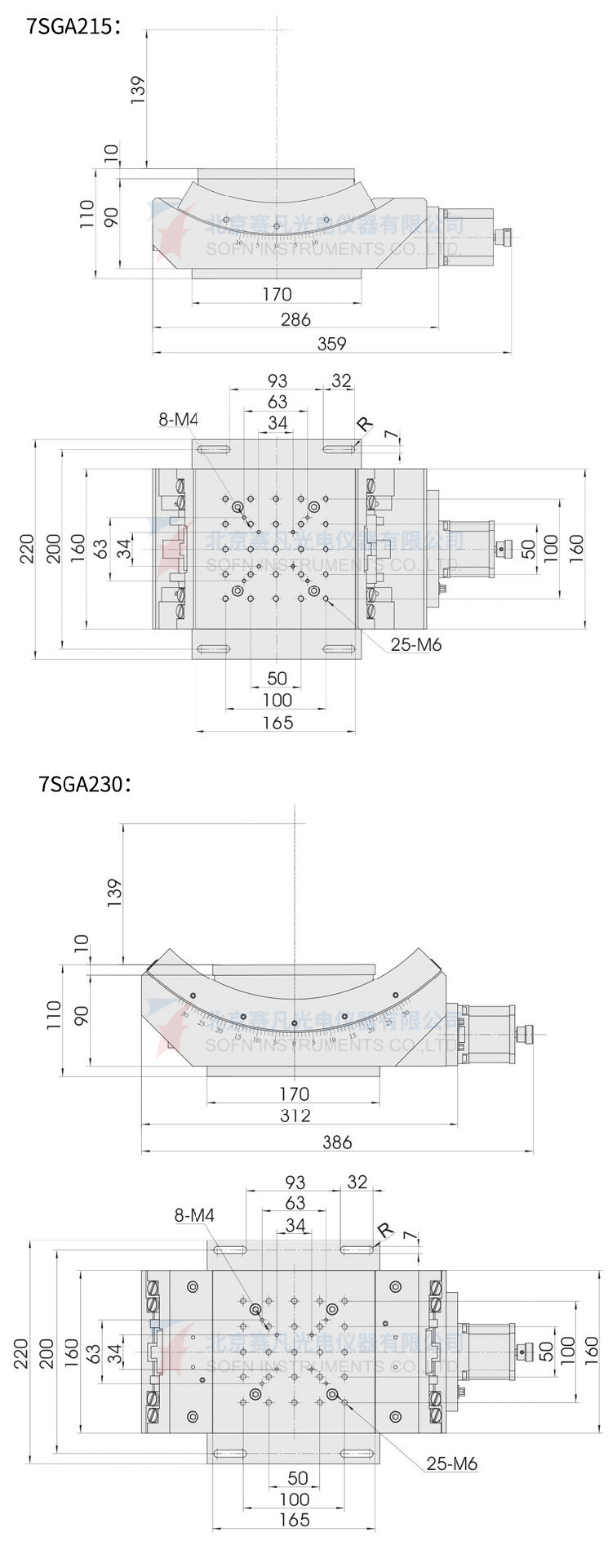

Product drawings:

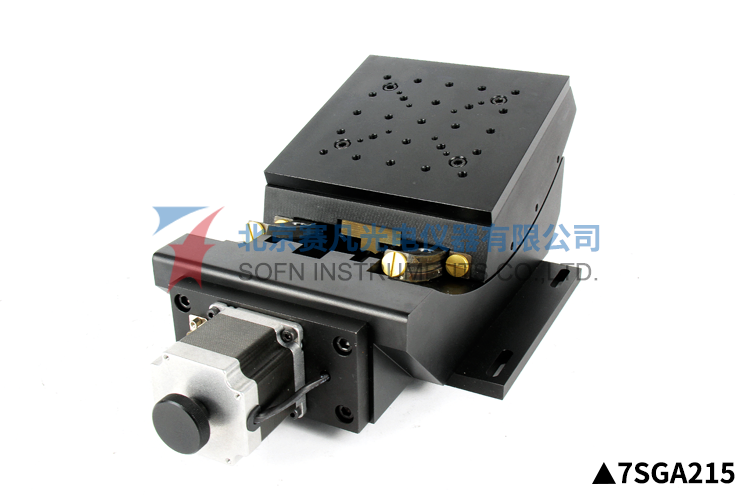

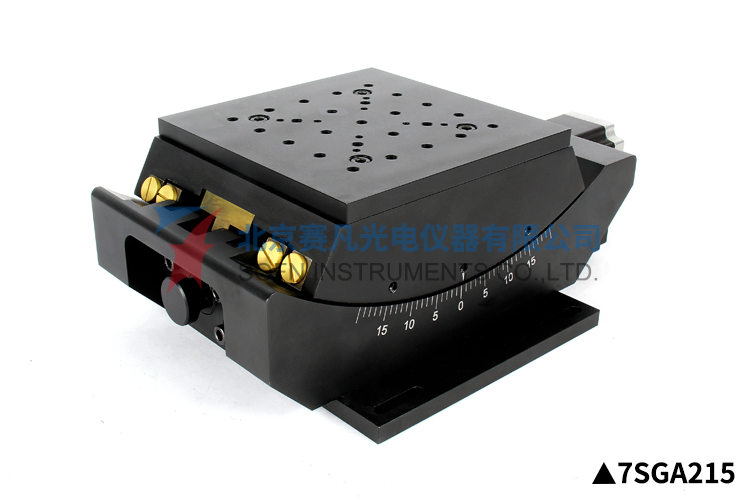

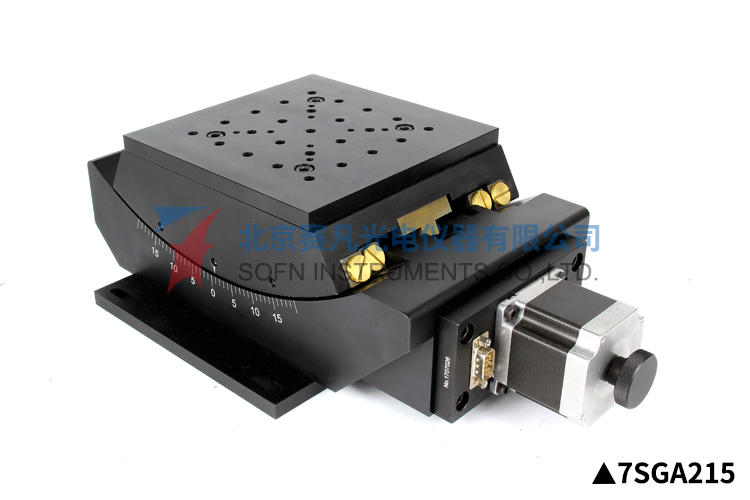

7SGA215、7SGA230
