7SGA1 Series Motorized Goniometers
7SGA110、7SGA115
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Rotary adjustmen,horizontal mounting surface,convenient for installation and fixing; 3、Driving by worm gear paired,ring balls guide rail combined with annular steel,comfortable movement,precise and reliable; 4、Design for paired use,rotary center is the same point after superposition,suitable for orthogonal biaxial rotating adjustment; 5、High quality elastic coupling for connecting motor and worm,synchronous transmission and little noise; 6、With zero and limit switch,convenient for accurate positioning and protection.
7SGA1 Series Motorized Goniometers
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Rotary adjustmen,horizontal mounting surface,convenient for installation and fixing;
3、Driving by worm gear paired,ring balls guide rail combined with annular steel,comfortable movement,precise and reliable;

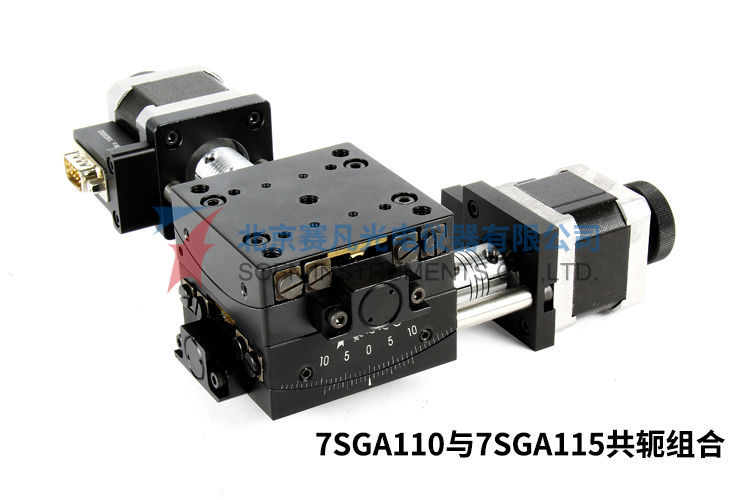

4、Design for paired use,rotary center is the same point after superposition,suitable for orthogonal biaxial rotating adjustment;
5、High quality elastic coupling for connecting motor and worm,synchronous transmission and little noise;
6、With zero and limit switch,convenient for accurate positioning and protection.
Ancillary product:

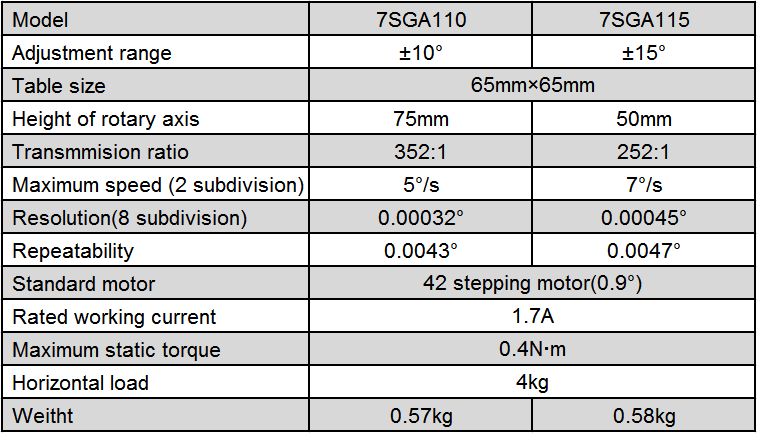

Specifications:

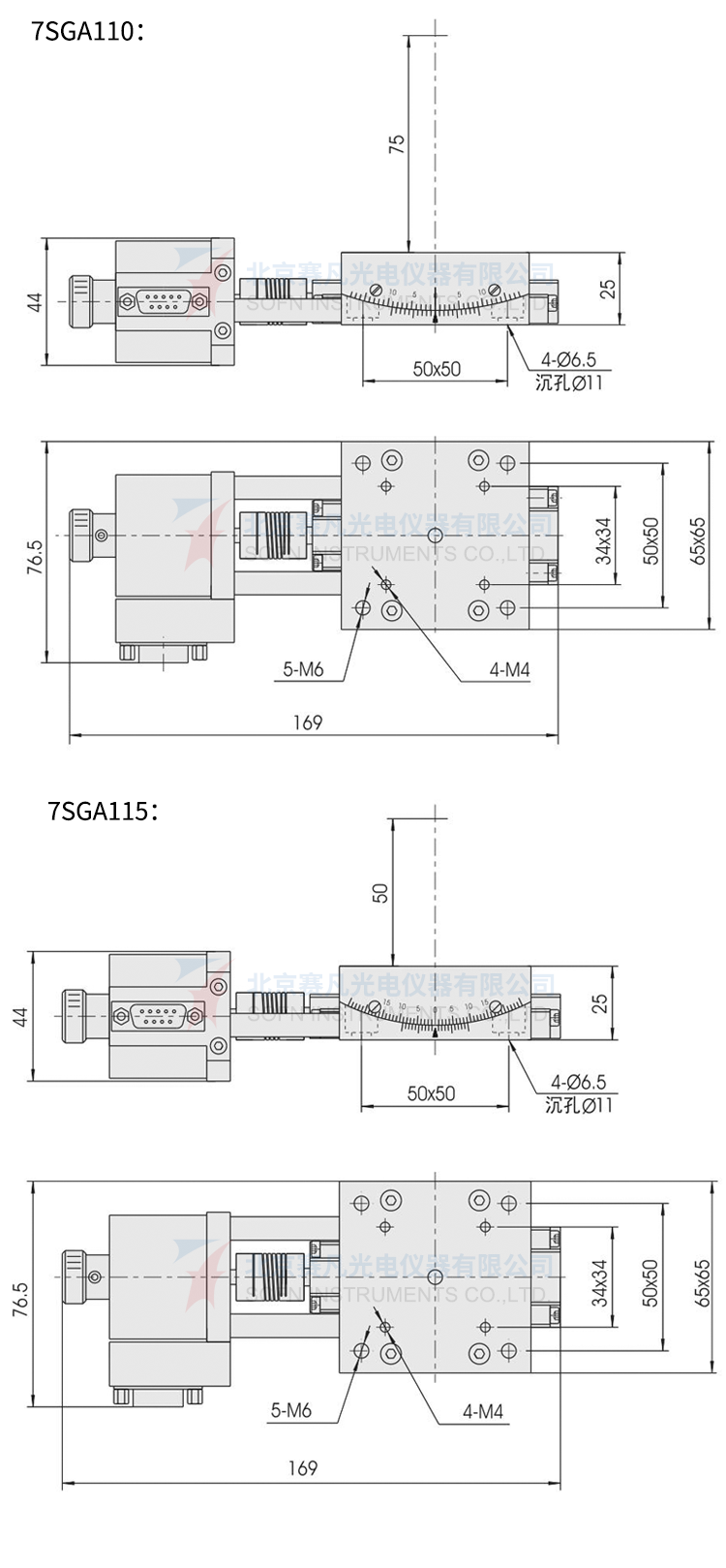

Product drawings:

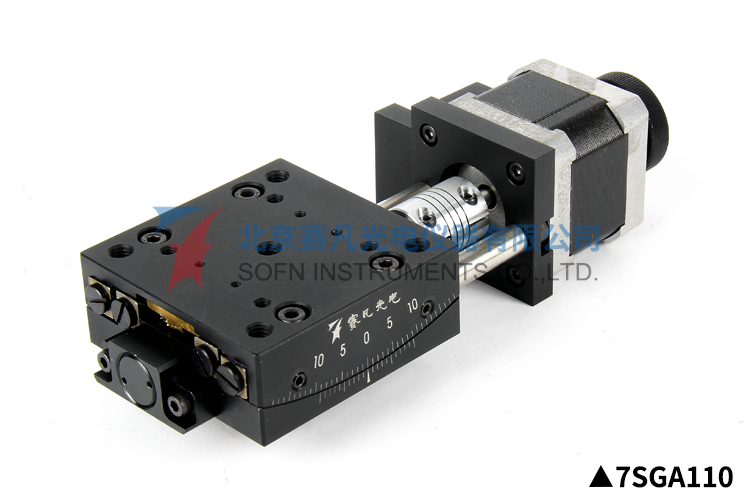

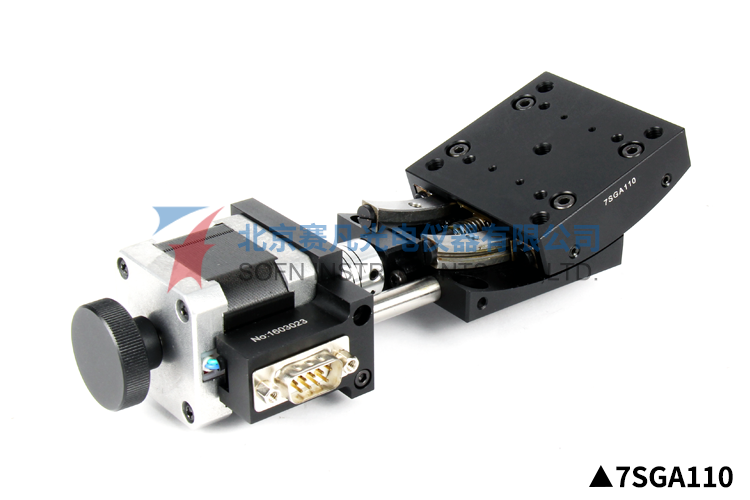

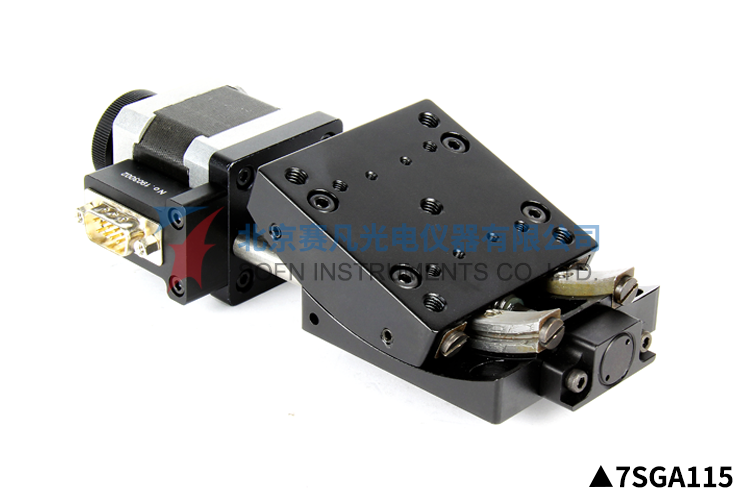

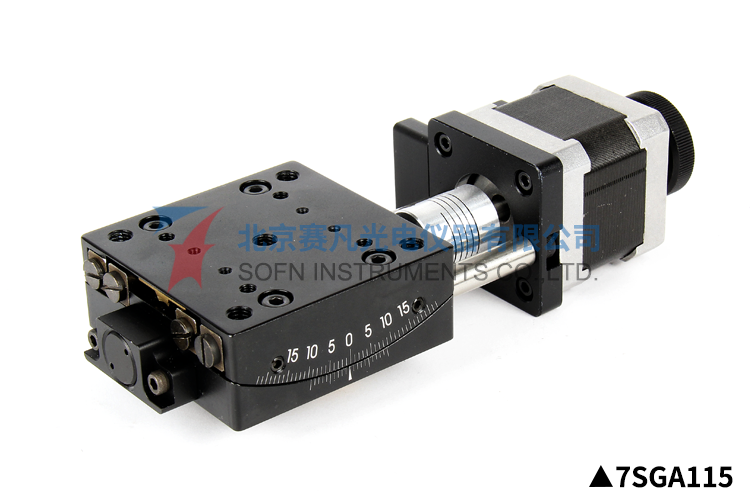

7SGA110、7SGA115
