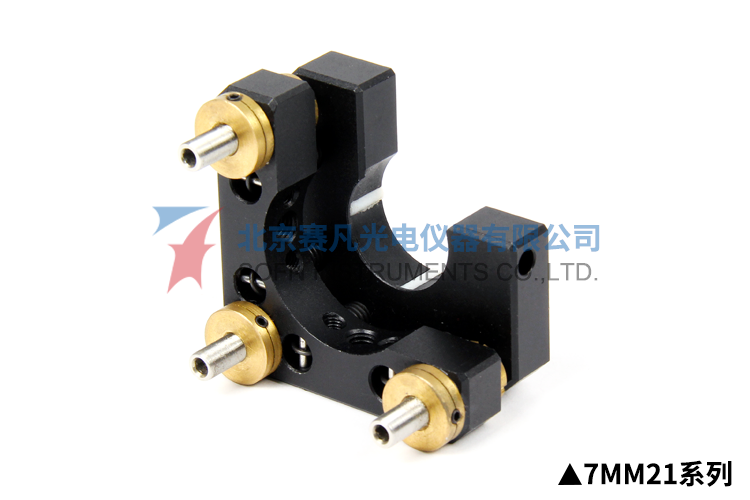

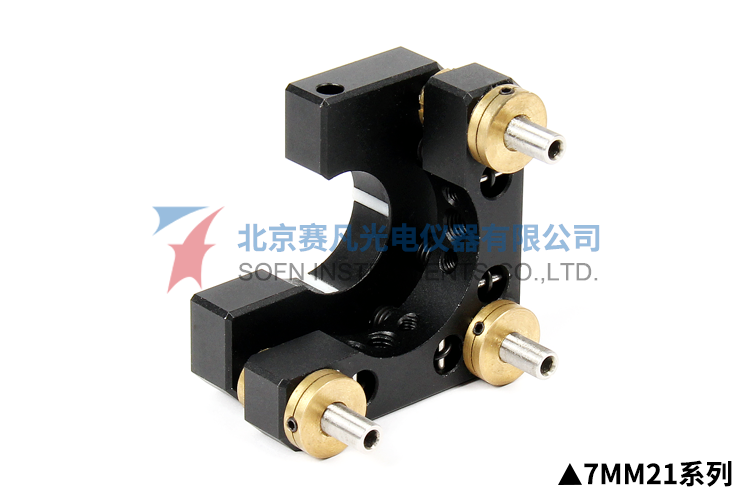

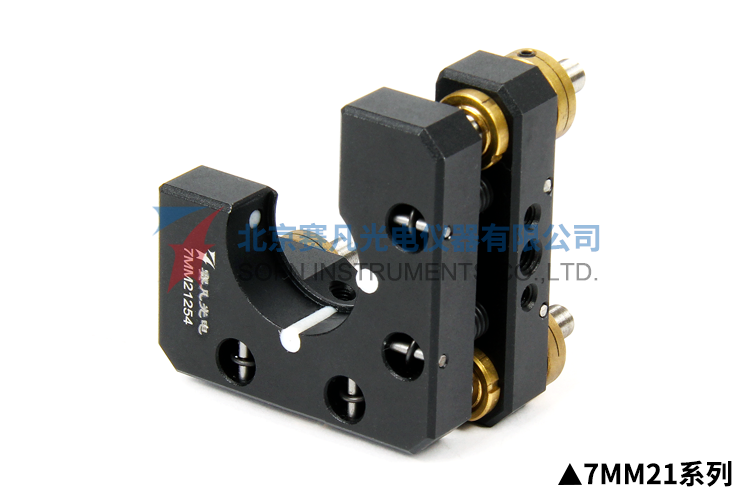

7MM21 Three-dimensional Mirror Mounts
7MM2115、7MM2120、7MM21254、7MM2130、7MM2140、7MM21508等
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked radially to prevent loosening caused by vibration; 2、Range of adjustment ±3°; 3、One-dimensional axial translation and two-dimensional inclination adjustment; 4、High performance tension spring for reset with uniform resetting force to reduce stress; 5、Open structur,fast clamping ,larger aperture; 6、Three PTFE supporting,protecting lens; 7、Mounting holes in two directions,suitable for different optical path.
7MM21 Three-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked radially to prevent loosening caused by vibration;
2、Range of adjustment ±3°;
3、One-dimensional axial translation and two-dimensional inclination adjustment;
4、High performance tension spring for reset with uniform resetting force to reduce stress;
5、Open structur,fast clamping ,larger aperture;
6、Three PTFE supporting,protecting lens;
7、Mounting holes in two directions,suitable for different optical path.
Ancillary products:

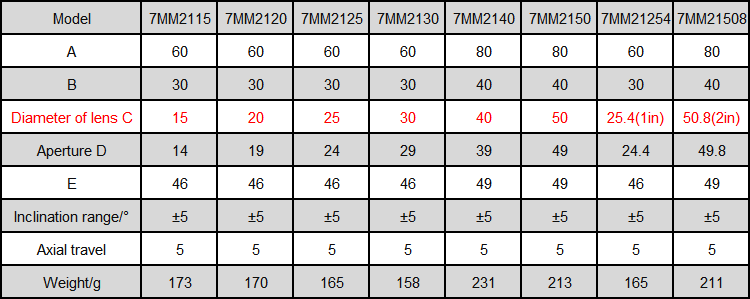

Specifications:
Unit:mm

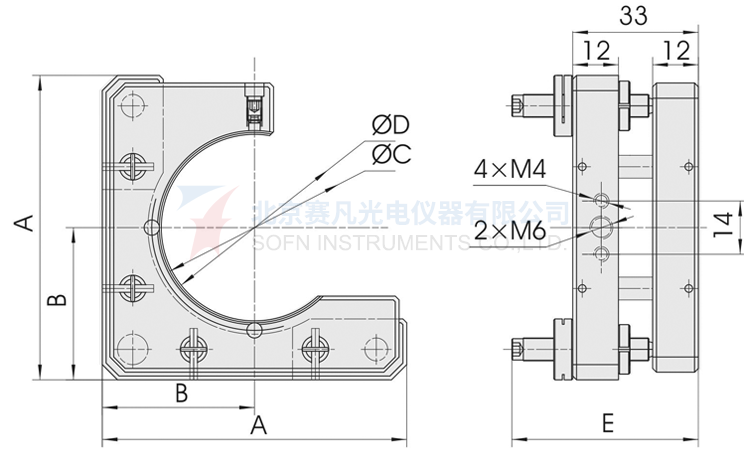

Product drawings:
7MM2115、7MM2120、7MM2125、7MM21254、7MM2130、7MM2140、7MM2150、7MM21508
