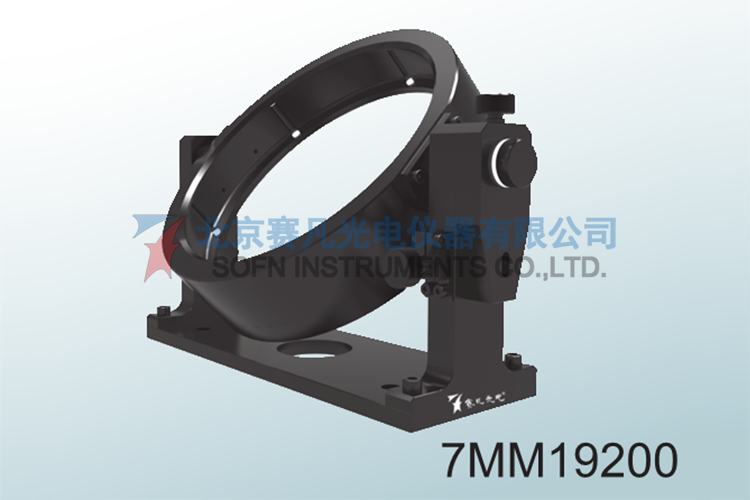

7MM19200 Mirror Mount for Large Diameter
Model：
7MM19200
Characteristics：
1、For mirrors or other optical components with 200mm diameter and 30mm thickness;2、Coarse positioning in 45°, 90° ,135° three positions;3、Fine pitching in ±3° adjusted by fine thread and can be locked;4、Can be customized.
7MM19200 Mirror Mount for Large Diameter
Characteristics:
1、For mirrors or other optical components with 200mm diameter and 30mm thickness;
2、Coarse positioning in 45°, 90° ,135° three positions;
3、Fine pitching in ±3° adjusted by fine thread and can be locked;
4、Can be customized.

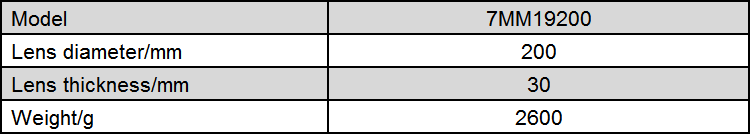

Specifications:

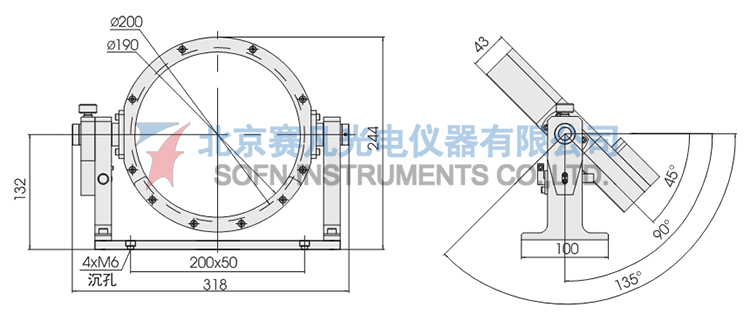

Product drawings:
7MM19200
