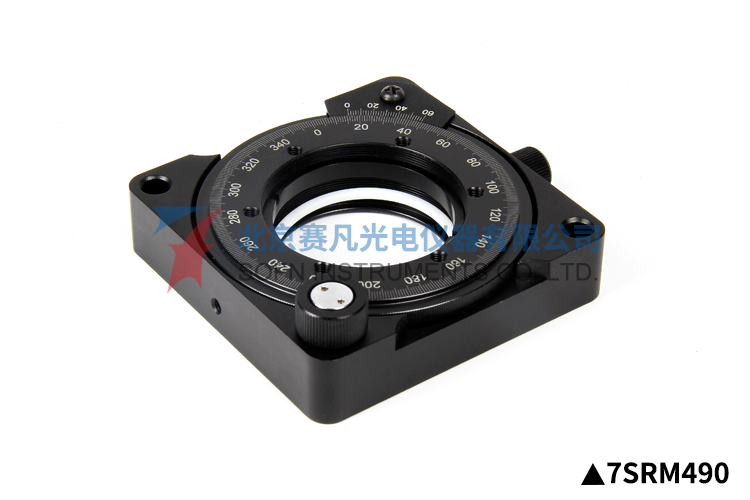

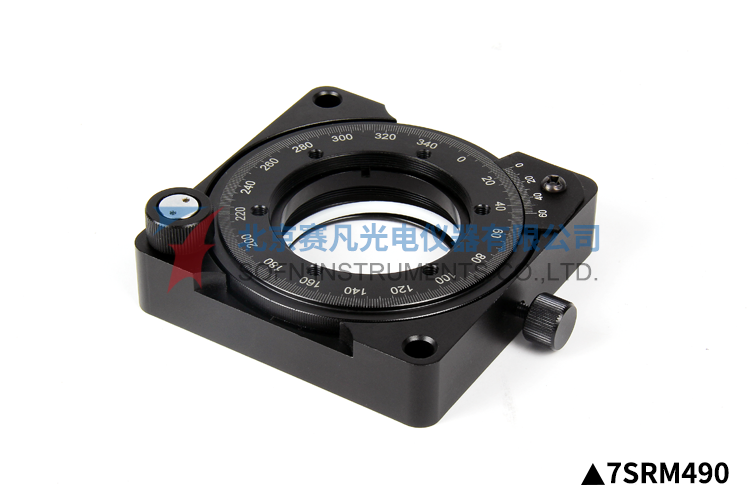

7SRM490 Precision Rotary Stage
Model：
7SRM490
Characteristics：
1、Precision shafting,stable and comfortable; 2、Fast angle adjustment or fine adjustment with flexible friction wheel; 3、360° graduations,quantitative visual angle; 4、M52×1 screw in the center to fix optics with 2 inches or 50mm in diameter,or other mounts.
7SRM490 Precision Rotary Stage
Characteristics:
1、Precision shafting,stable and comfortable;
2、Fast angle adjustment or fine adjustment with flexible friction wheel;
3、360° graduations,quantitative visual angle;
4、M52×0.75 screw in the center to fix optics with 2 inches or 50mm in diameter,or other mounts.
Ancillary product:

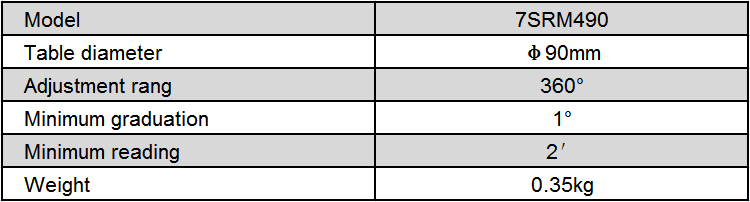

Specifications:

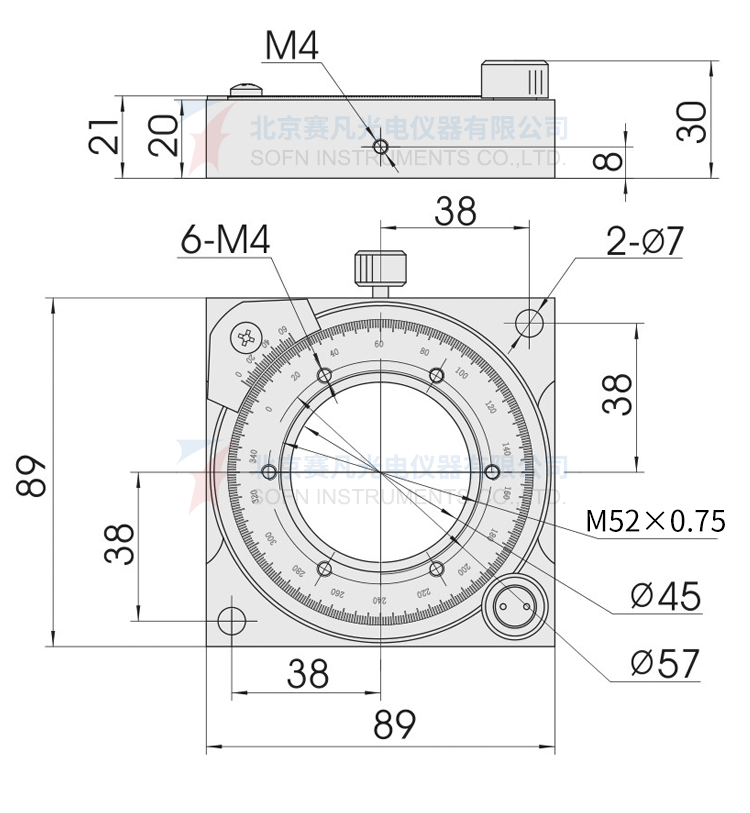

Product drawings:
7SRM490
