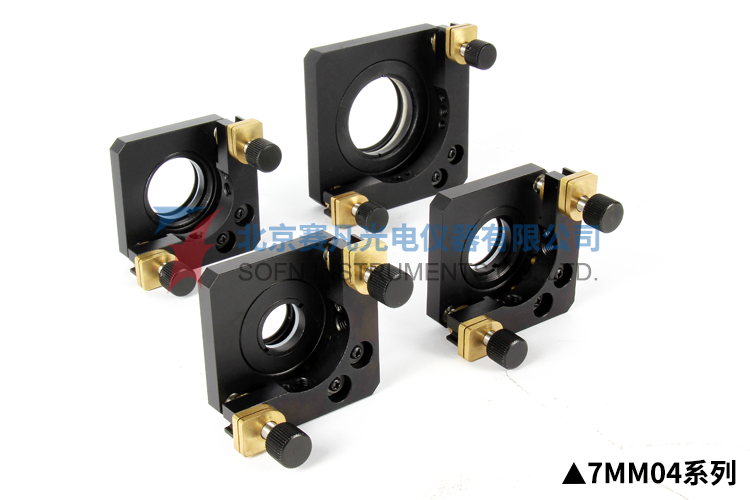

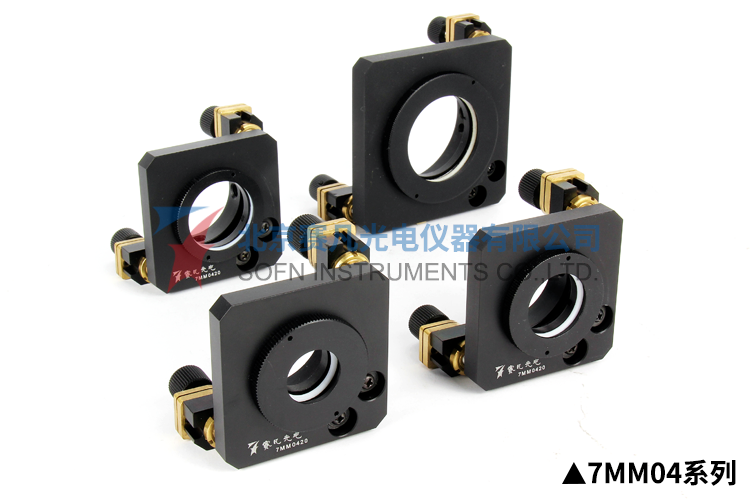

7MM04 Two-dimensional Mirror Mounts
7MM0420、7MM0425、7MM0430、7MM0440
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibration; 2、Belleville spring for reset,reset force can be adjusted,from zero to rigidity; 3、Range of adjustment ±3°; 4、Barrel clamping lens,lens can be installed and fixed to the adjusting frame; 5、PTFE gasket,protecting lens; 6、Mounting holes in two directions,suitable for different optical path.
7MM04 Two-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibration;
2、Belleville spring for reset,reset force can be adjusted,from zero to rigidity;
3、Range of adjustment ±3°；

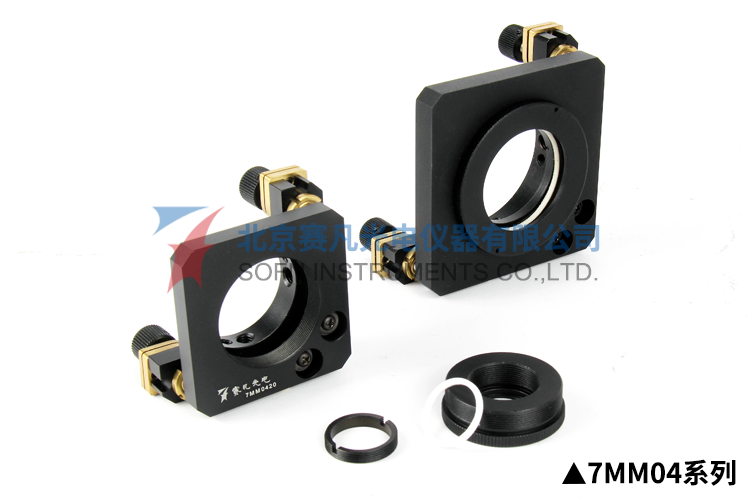

4、Barrel clamping lens,lens can be installed and fixed to the adjusting frame;
5、PTFE gasket,protecting lens;
6、Mounting holes in two directions,suitable for different optical path.
Ancillary products:

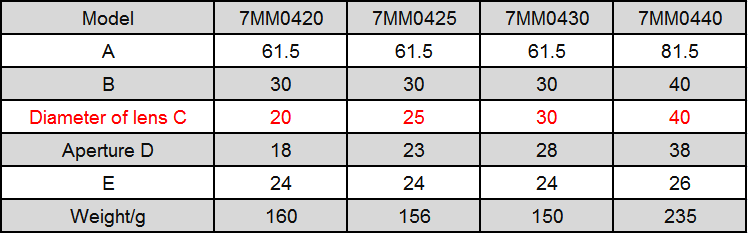

Specifications:
Unit:mm

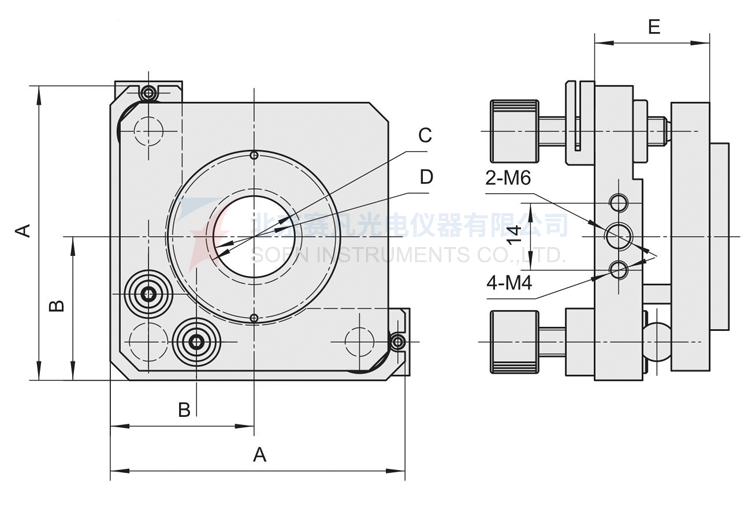

Product drawings:
7MM0420、7MM0425、7MM0430、7MM0440
