7SVA5 Series Motorized Precision Vertical Translation Stages
7SVA550、7SVA5100、7SVA5200、7SVA5300、7SVA5400等
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Driving force is in the center of horizontal platform without unbalance loading problem; 3、Precision worm and worm gear reducer,big load capacity,fast lifting; 4、Trapezoidal screw rod,with self-locking function; 5、Linear bearing guide rail with comfortable movement; 6、With zero and limit switch,convenient for accurate positioning and protection.

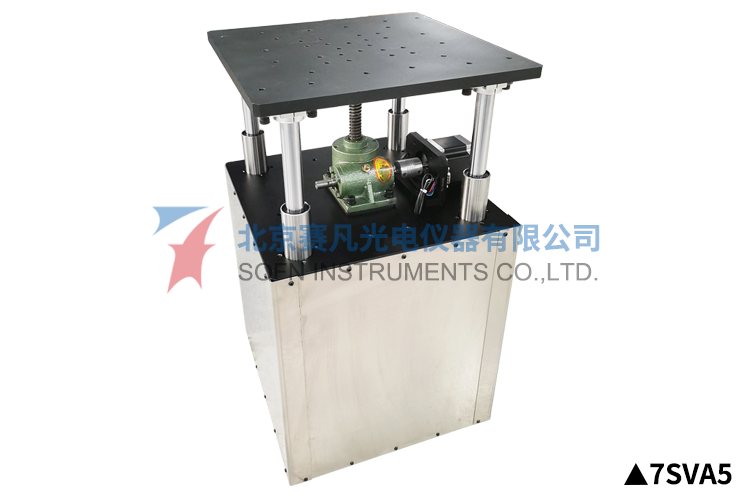

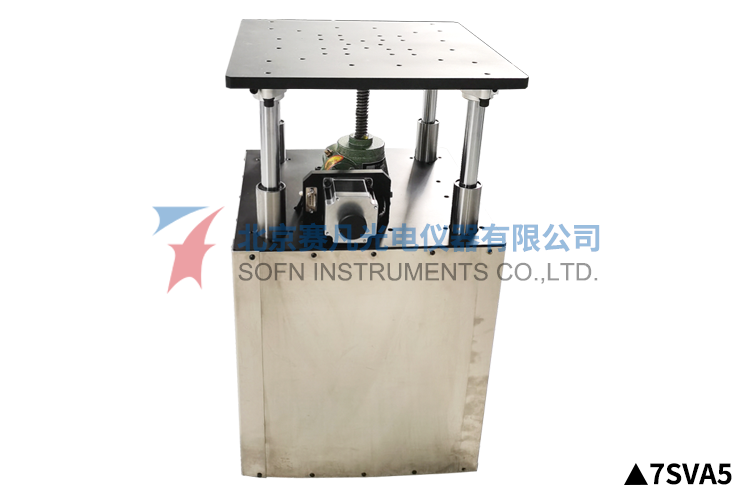

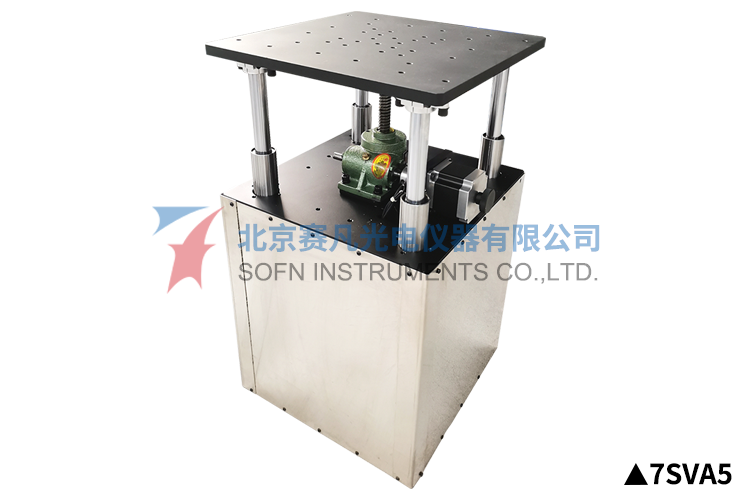

7SVA5 Series Motorized Precision Vertical Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Driving force is in the center of horizontal platform without unbalance loading problem;
3、Precision worm and worm gear reducer,big load capacity,fast lifting;
4、Trapezoidal screw rod,with self-locking function;
5、Linear bearing guide rail with comfortable movement;
6、With zero and limit switch,convenient for accurate positioning and protection.
Ancillary products:

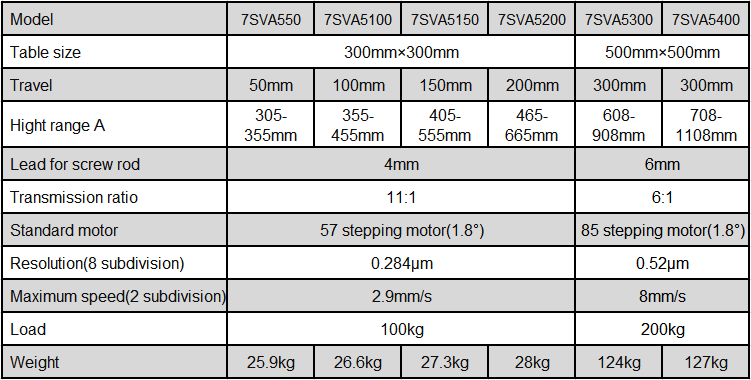

Specifications:

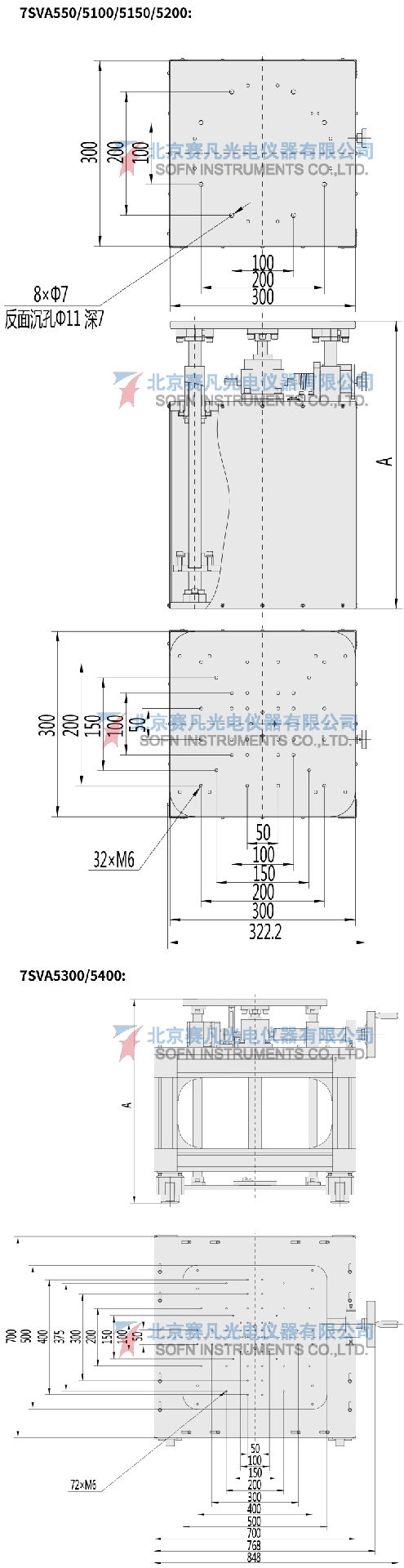

Product drawings:
7SVA550、7SVA5100、7SVA5150、7SVA5200、7SVA5300、7SVA5400
