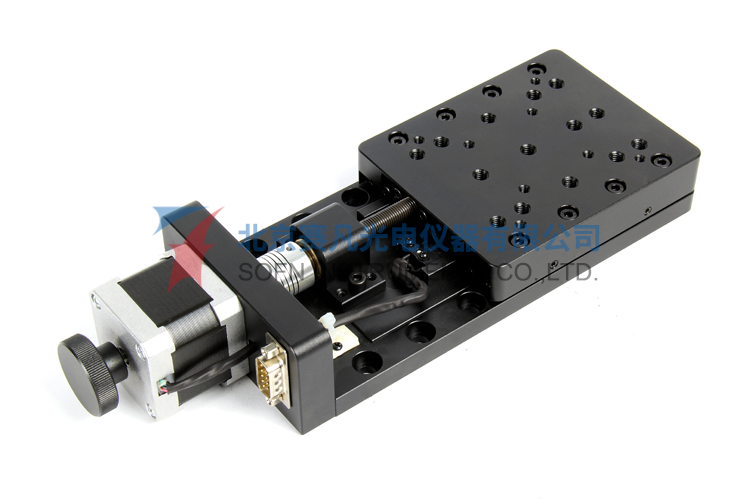

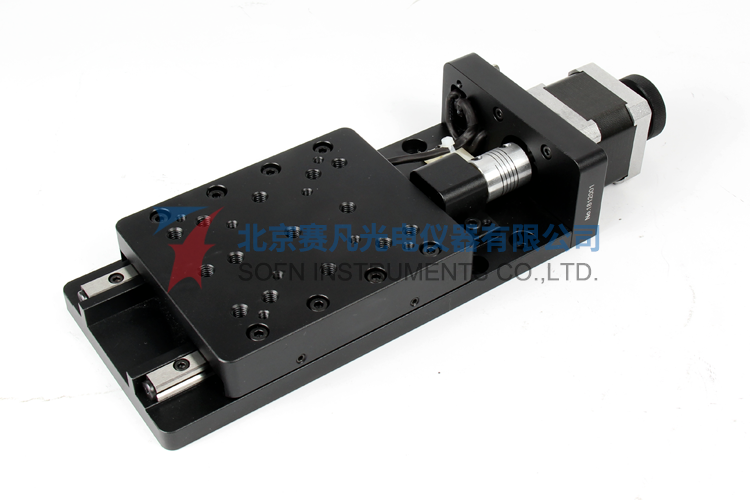

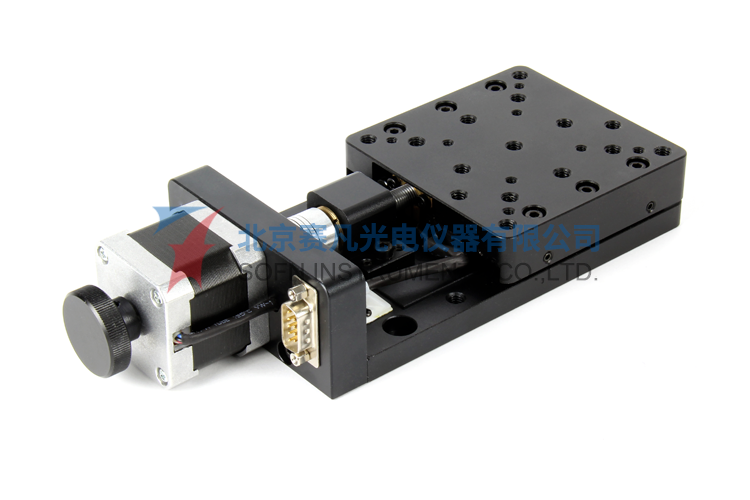

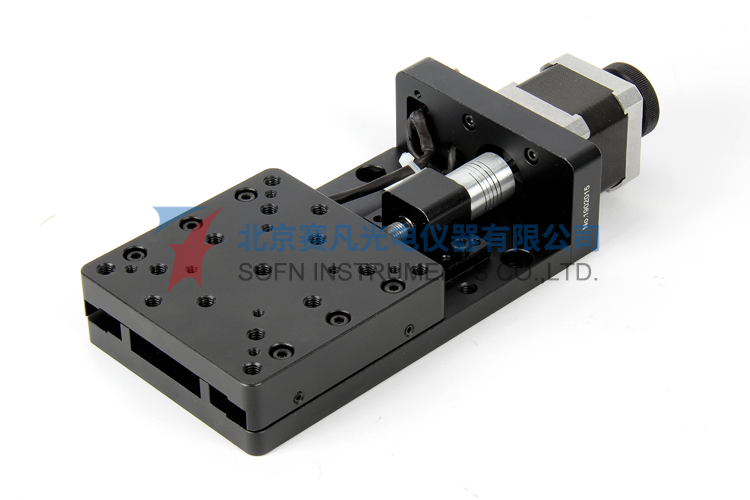

7STA10 Series Motorized Precision Translation Stages
7STA1030、7STA1050、7STA10100
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;2、Ultra-thin,space saving;3、Precision grinding screw rod,high resolution;4、Cross roller guide with comfortable movement,high precision and big load;5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;6、Hand wheel to adjust by manual;
7STA10 Series Motorized Precision Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Ultra-thin,space saving;
3、Precision grinding screw rod,high resolution;
4、Cross roller guide with comfortable movement,high precision and big load;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes with standard distance are distributed on the surface and the base for installation and combination.
Ancillary products:

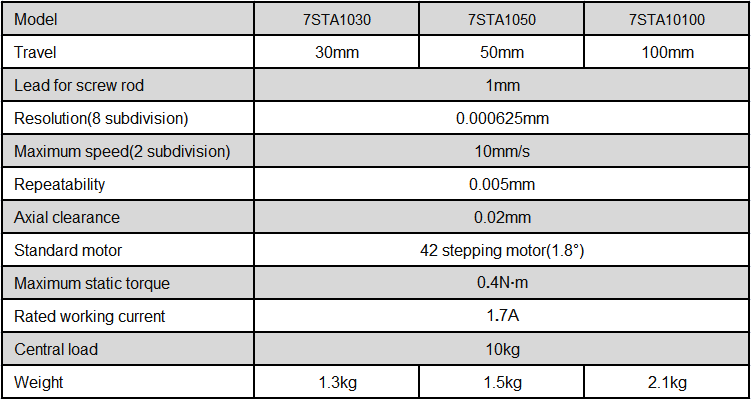

Specifications:

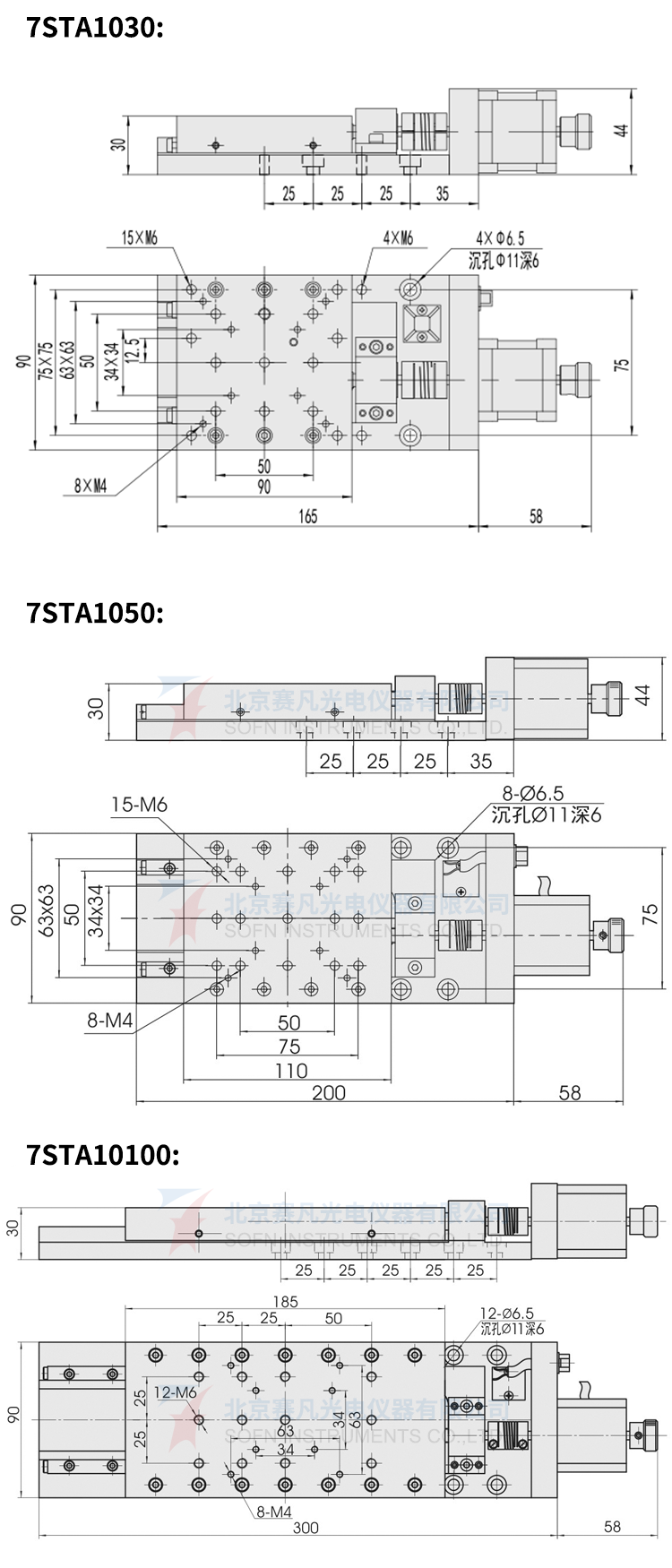

Product drawings:
7STA1030、7STA1050、7STA10100
