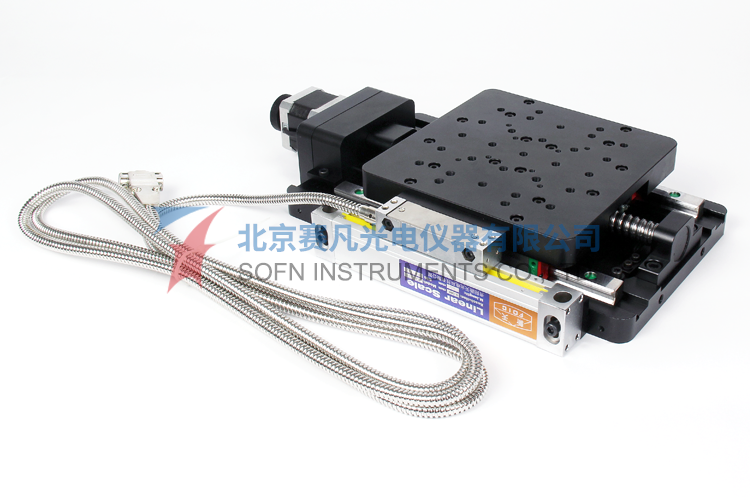

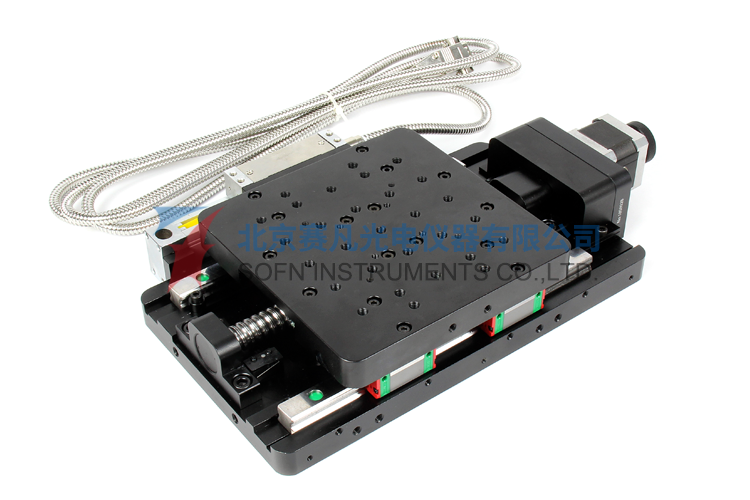

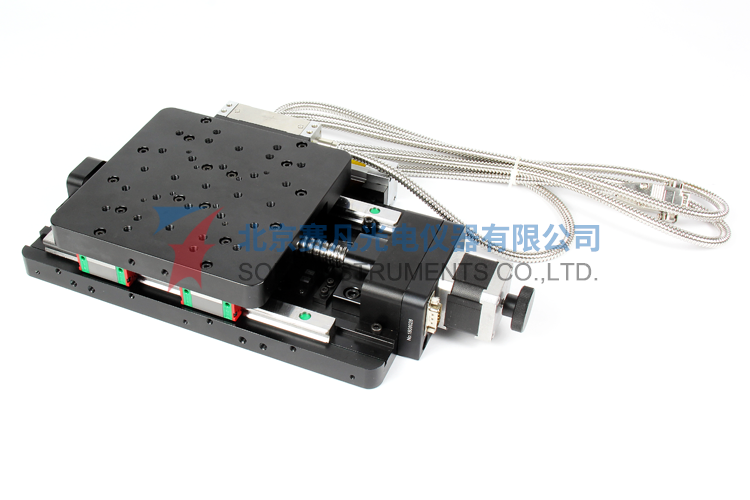

7STA08B Series Motorized Precision Translation Stages
7STA0850B、7STA08100B、7STA08200B、7STA08300B等
1、Based on 7STA03B series motorized translation stages,and add the grating ruler to realize closed loop automatic control together with the motion controller,the accuracy can reach micron level;2、Driving by high quality ball screw rod,good rupeatability and accurary,long life;3、Screw rod adopts three bdaring mounting structure,locking the end of axis to prevent loose,suitable for high soeed reciprocating use;4、Linear motion guide(square type,whole body is connected with the base plate),comfortable movement,large bearing capacity,suitable for single axis with hesvy loading or for multi axis combination;
7STA08B Series Motorized Precision Translation Stages




Characteristics:
1、Based on 7STA03B series motorized translation stages,and add the grating ruler to realize closed loop automatic control together with the motion controller,the accuracy can reach micron level;
2、Driving by high quality ball screw rod,good rupeatability and accurary,long life;
3、Screw rod adopts three bdaring mounting structure,locking the end of axis to prevent loose,suitable for high soeed reciprocating use;
4、Linear motion guide(square type,whole body is connected with the base plate),comfortable movement,large bearing capacity,suitable for single axis with hesvy loading or for multi axis combination;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes with standard distance are distributde on the surface and the base for installation and combination.
