7STM08113 Precision Translation Stage
7STM08113
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing; 2、Adjustment by fine pitch screw or micrometer; 3、Fine pitch screw or micrometer in te center of the stage,convenient for operation; 4、Spring reset to eliminate the axial clearance; 5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination; 6、Can be combined with other series stages to compose a multi dimensional adjusting rack; 7、It can be combined with other series stages to compose a multi dimensional adjusting tack; 8、With 12mm×12mm square hole in the center for passing light.
7STM08113 Open-hearted precision Translation Stage
Characteristics:
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing;
2、Adjustment by fine pitch screw or micrometer;
3、Fine pitch screw or micrometer in te center of the stage,convenient for operation;
4、Spring reset to eliminate the axial clearance;
5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
6、Can be combined with other series stages to compose a multi dimensional adjusting rack;
7、It can be combined with other series stages to compose a multi dimensional adjusting tack;
8、With 12mm×12mm square hole in the center for passing light.
Ancillary product:

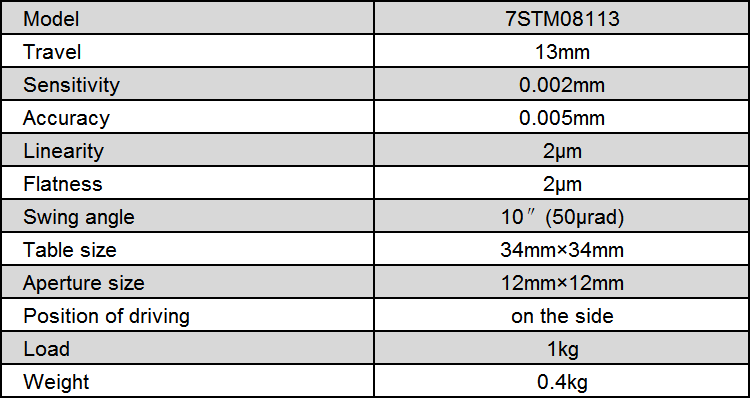

Specifications:

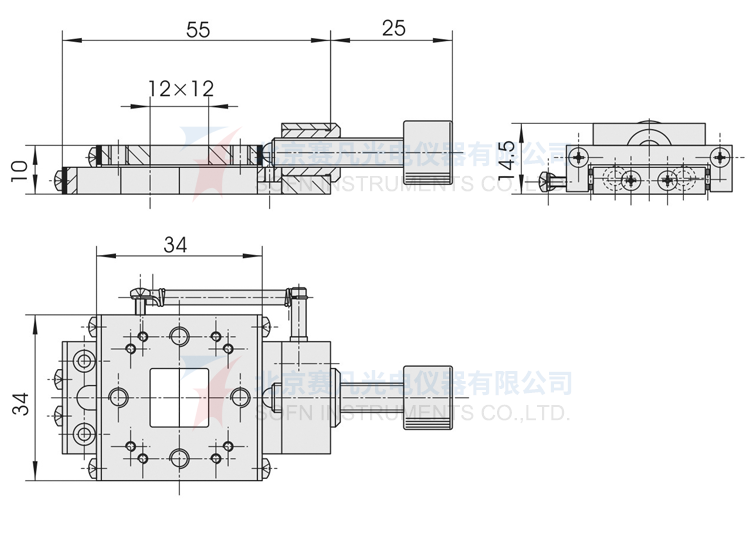

Product drawings:
7STM08113
