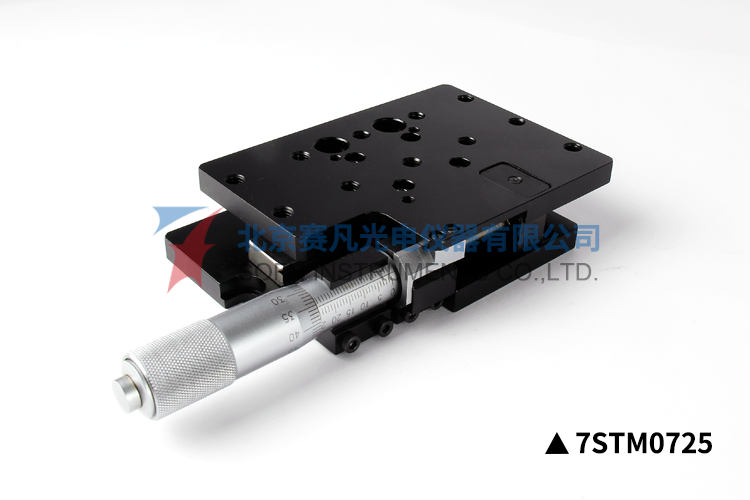

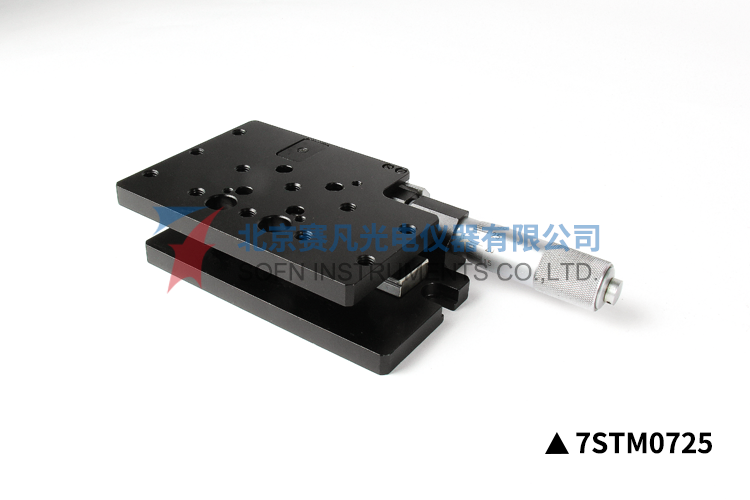

7STM0725 Precision Translation Stage
7STM0725
1、High precision ultrathin linear motion guide ensures high accuracy of movement; 2、Translation adjustment by fine grinding screw with large drving force and high precision; 3、Micrometer for quantitative and intuitive reading; 4、Compact and beautiful,little space occupied; 5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination; 6、Can be combined with other series stages to compose a multi dimensional adjusting rack.
7STM0725 Ultra-fine Precision Translation Stage
Characteristics:
1、High precision ultrathin linear motion guide ensures high accuracy of movement;
2、Translation adjustment by fine grinding screw with large drving force and high precision;
3、Micrometer for quantitative and intuitive reading;
4、Compact and beautiful,little space occupied;
5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
6、Can be combined with other series stages to compose a multi dimensional adjusting rack.
Ancillary products:

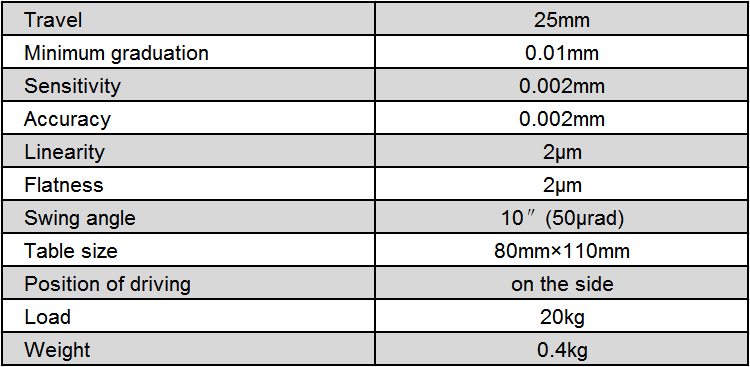

Specifications:

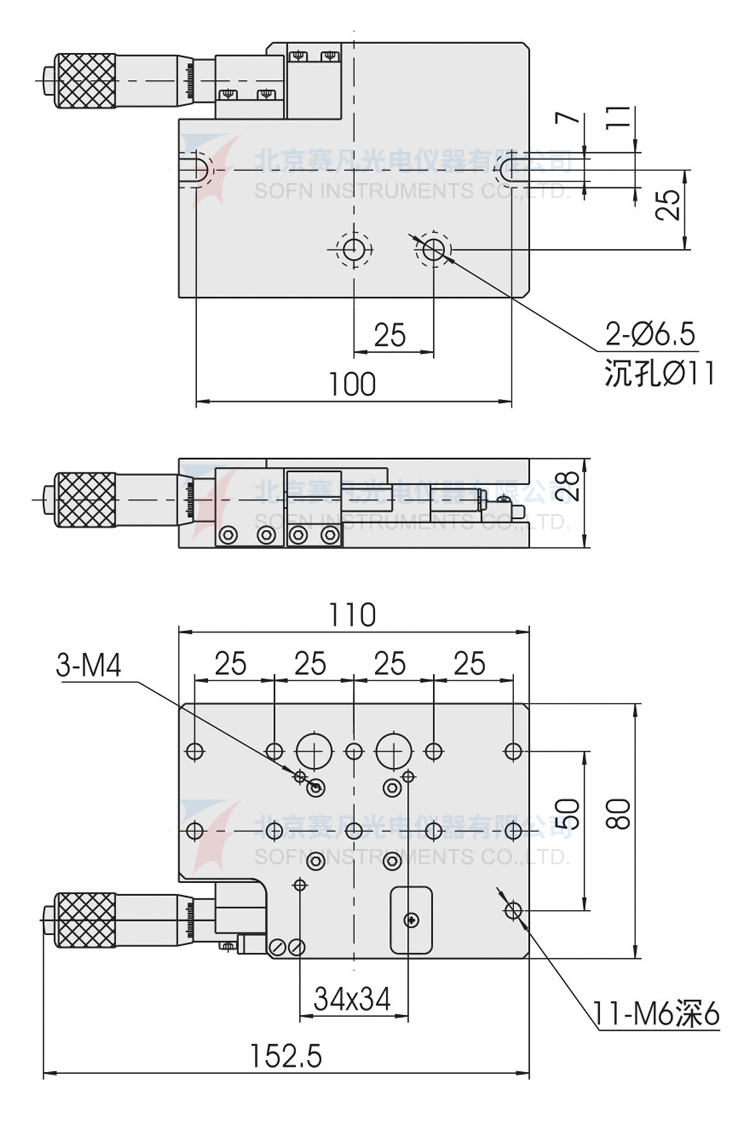

Product drawings:
7STM0725
