7-IV Series Solar Cell IV Tester
Product Introduction：
Under a certain solar light, the test of Solar cell I-V characteristic is to output a relative curve of the current and the voltage loaded. IV characteristic can fully express the conversion efficiency of solar cells,and can get the final performance index of cells. The final performance index provides the basis for theproduction of components and for determining the price.SoFn Instruments Co., Ltd provides solar cell IV measurement system with a scientific grade and related equipment and the products will be suitable for research, test and evaluation of various optoelectronic materials, photovoltaics parts and solar cells
Features:
⚫ Equipped steady solar simulator with AAA grade
⚫ Special high precision test source meter
⚫ Special vacuum adsorption stage (temperature
control is optional)
⚫ Special high precision test meter
⚫ Special IV test software at independent developed
Parameters of measurement
⚫ The complete I-V curve and P-V curve measurement,
⚫ Measurements of short-circuit current Isc, open circuit voltage Voc and short-circuit current density
Jsc
⚫ Measurements of peak power Pm, peak power current Im, peak power voltage Vm.
⚫ Measurements of efficiency η, the fill factor FF, series resistance Rs and the shunt resistance Rsh
⚫ Extended measurement function: measurement etc in the weak light or dark conditions.
Main technical parameters:
⚫ Accuracy of voltage measurement: 0.015%;
⚫ Accuracy of current measurement: 0.15%;
⚫ Repeatability of measurement: 1%;

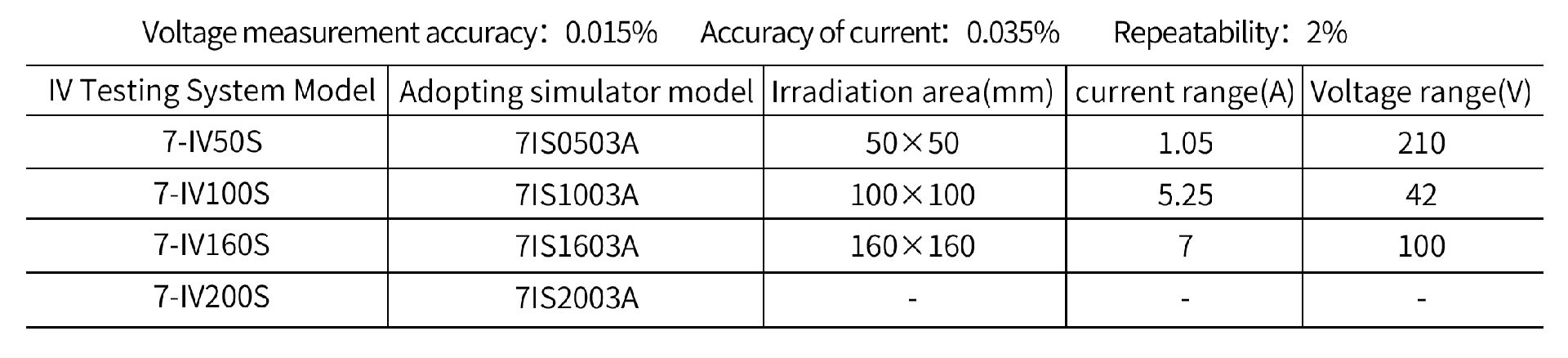

Technical Specifications：
