LED Solar Simulator
Overview & Applications

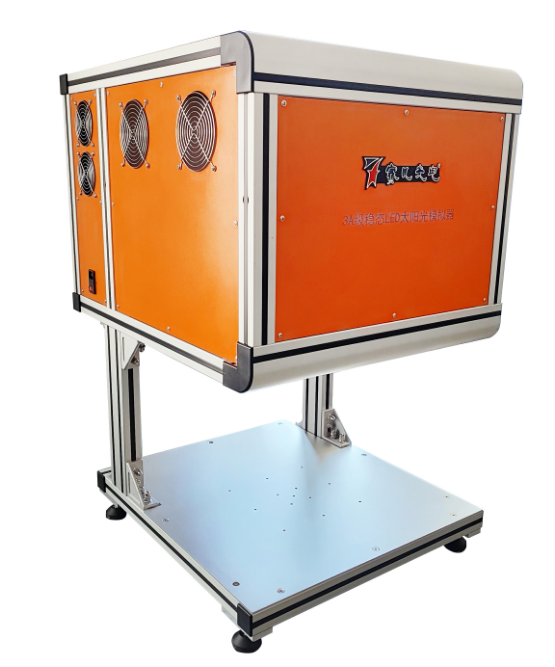

Model 7IS0503A-LED Solar Simulator (LED) is an ideal illumination source for scientific research and industrial cell fabrication. Utilizing LEDs covering the 400nm-1100nm wavelength range, it employs spectral fitting, light mixing, and homogenization technologies to achieve a Class 3A solar simulation standard.
This simulator is widely applicable in fields such as solar cell performance testing, photocatalytic research, and material aging tests, empowering researchers to overcome technical challenges and advance related industries.
Technical Features
Exceptional Spectral Simulation: Precisely covers 400nm-1100nm wavelengths with A+ grade spectral matching (0.875-1.125). Excellent spectral consistency across all points creates a highly realistic simulated solar environment for research and testing.
High Uniformity & Stability: Achieves Class A spatial non-uniformity and temporal stability (better than ±2%). With 70mm spot size, it delivers uniform and stable illumination for more reliable and reproducible experimental data.
Extended Lifespan & Low Power Consumption: 100,000-hour light source lifespan reduces replacement frequency. Low overall power consumption with rated power of only 650W for energy efficiency.
User-Friendly Operation: Comprehensive control software enables easy adjustment of intensity through simple configuration of serial port, parameter path, and irradiance. Ready for use after just 15-minute stabilization with intuitive operation.
