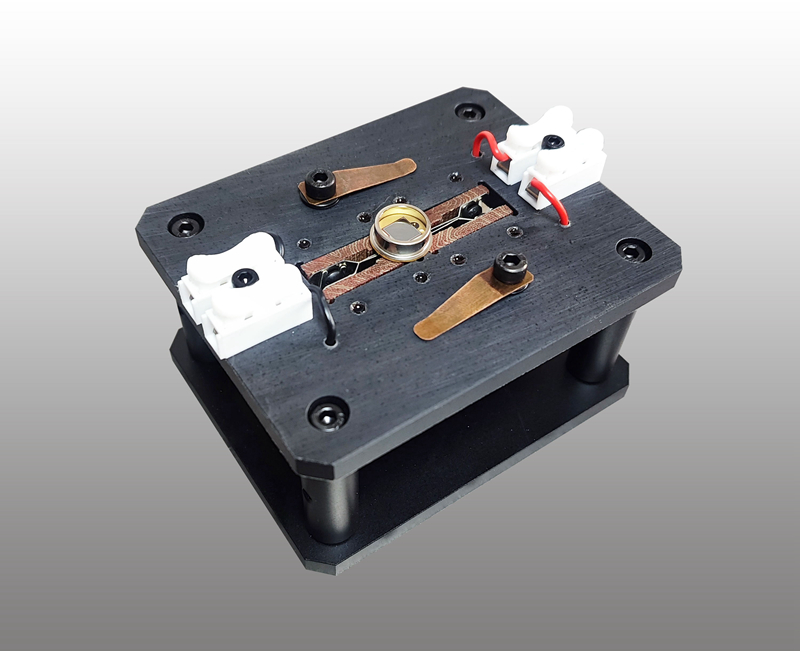

DRS020-3.0 photodetector fixture
DRS020-3.0
1. Used for fixing samples and picking up electrodes during photodetector performance testing. It can clamp packaged or unpackaged photodetectors with leads. The placement and removal of the detector is simple and convenient.2. The diameter of the encapsulated photoelectric detector pin is within 3mm, and the distance between the two pins is within the range of 2.5mm~25mm. The two pins of the detector can be inserted into the gap of the crimping piece.3. The area of the unpackaged photodetector is applicable within 30mmx30mm. During the test, place the unpackaged photodetector on the fixture table and press it with a pressing piece to fix the test.The detector electrode wire replaces the wiring of the terminal block, and the other end is connected to the corresponding wire of the collection device according to the positive and negative poles.4. Push-type terminal block, quick to connect and easy to operate.
Usage and features:
1.Used for fixing samples and picking up electrodes during photodetector performance testing. It can hold packaged or unpackaged photodetectors with leads. The placement and removal of the detector is simple and convenient.
2. The diameter of the encapsulated photoelectric detector pin is within 3mm, and the distance between the two pins is within the range of 2.5mm~25mm. The two pins of the detector can be inserted into the gap of the crimping piece.
3. The area of the unpackaged photodetector is applicable within 30mmx30mm. During the test, place the unpackaged photodetector on the fixture table and press it with a pressing piece to fix the test.The detector electrode wire replaces the wiring of the terminal block, and the other end is connected to the corresponding wire of the collection device according to the positive and negative poles.
4. Push-type terminal block, quick to connect and easy to operate.
