7IDA4 Data acquisition
The 7IDA4 data collector is a weak signal measurement and acquisition device that uses dual conversion output channels and independent software for control. It has a wide measurement range and high measurement accuracy, and can be used as a separate weak signal collector. It can also be used in conjunction with our company's monochromator and detector to build an optoelectronic testing system.
Features and parameters:
1 Standard USB2.0 interface
2 Maximum sampling rate: continuous 100kHz sampling
3 High performance operational amplifier, 16BitsA/D converter, high dynamic range signal acquisition, high measurement accuracy
4 1, 2, 4, 8, 16, 32, 64128 times gain conversion, wide measurement range
5 Dual input, can be set as DC voltage input or DC current input
Current: ± 10pA~± 40 µ A
Voltage: ± 1 µ V~± 4V
6 Dual D/A conversion output channel, which can be used to control other experimental equipment
7 Output amplitude: 0-10V
8 D/A conversion accuracy: 16Bits
9 One trigger input and one trigger output channel each for synchronous experiments
10 Equipped with+5V DC power supply
11 Support secondary development in environments such as labview, VB, VC, and C #
12 Weight: 1.35kg

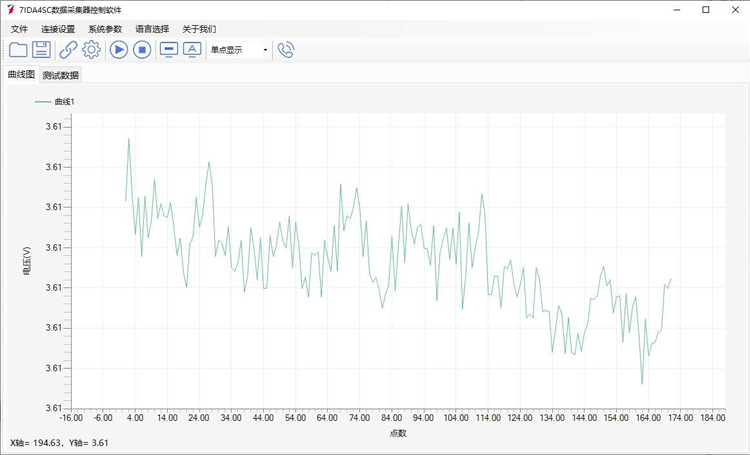

7IDA4 dedicated software interface:

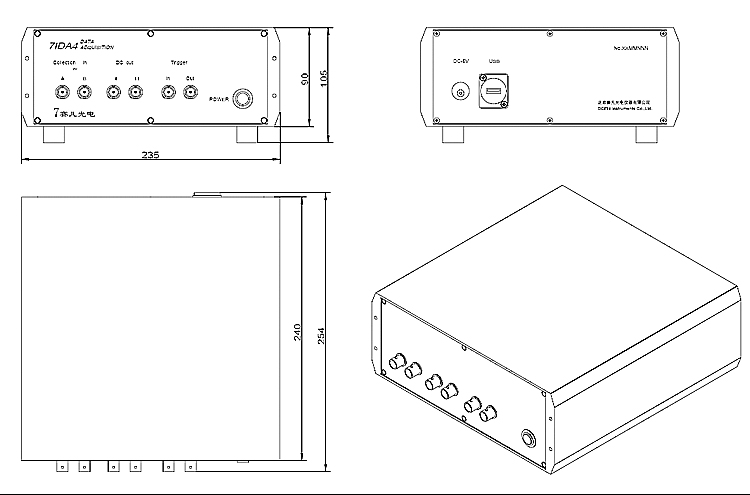

Outline dimension drawing:
