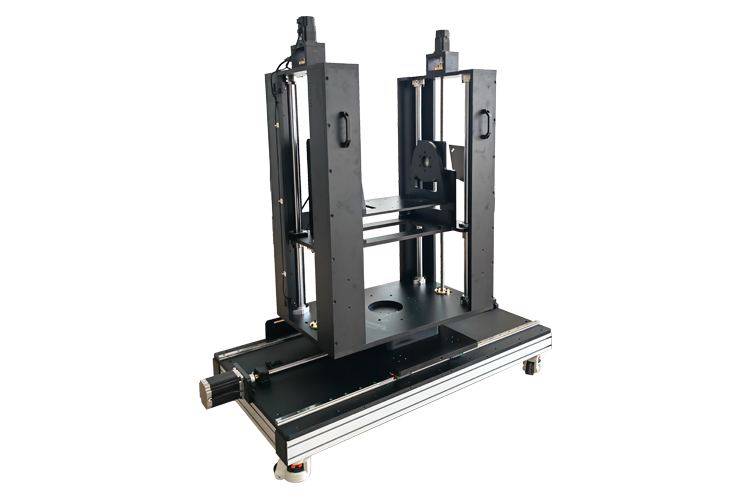

Light tube four-dimensional adjustment table
2302009-SWTZA
1. X-axis stroke: 800 mm; Resolution: ≤ 0.05mm; Maximum speed: 30mm/s; 2. Z-axis stroke: 800mm; Resolution: ≤ 0.05mm; Maximum speed: 10mm/s; 3. Pitch and azimuth fine adjustment ≥ 3 °, step resolution better than 2 ″; 4. Reserve fixed screw holes for the light tube array; Equipped with self-locking function;
1. X-axis stroke: 800 mm; Resolution: ≤ 0.05mm; Maximum speed: 30mm/s;
2. Z-axis stroke: 800mm; Resolution: ≤ 0.05mm; Maximum speed: 10mm/s;
3. Pitch and azimuth fine adjustment ≥ 3 °, step resolution better than 2 ″;
4. Reserve fixed screw holes for the light tube array; Equipped with self-locking function;

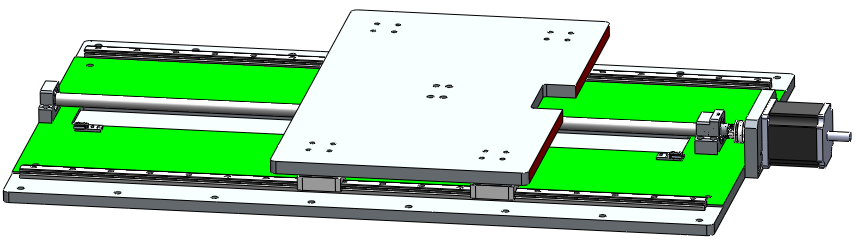

1. X-axis: Ball screw drive, high repeated positioning accuracy, long service life; Precision linear slider square guide rail, comfortable to move and with large load capacity; Equipped with a handwheel, it can be manually adjusted under special circumstances; The screw adopts a three bearing installation structure, suitable for high-speed reciprocating motion; Zero and limit switches are installed at both ends; Convenient positioning and protection of products; Adopting an 85 step motor; Other forms of motors can also be installed;
Screw lead 5mm, resolution (8 subdivisions) 0.0025mm, repeated positioning accuracy 0.005mm;

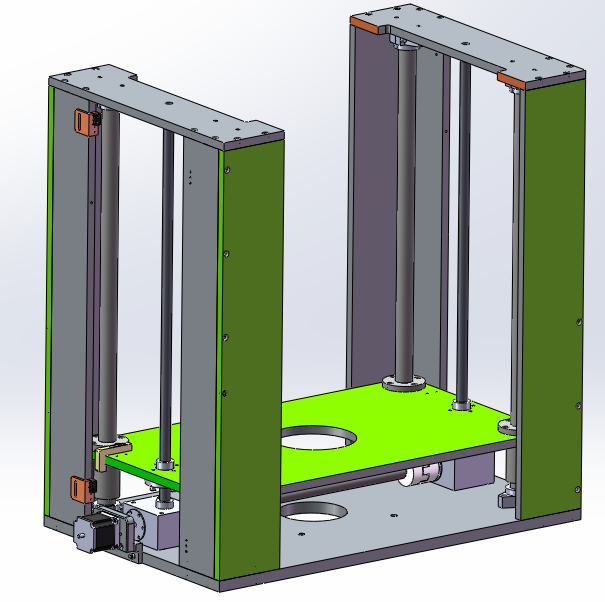

2. Z-axis: Adopting a gantry lifting structure; Adopting two high-quality elevators for linkage, with a stable structure; The four corners use a 30mm diameter linear bearing guide rod; 85 stepper motor drive, other forms of motor can also be used; Limit switches at the upper and lower ends for easy positioning and protection of the product;
The lead of the trapezoidal screw is 4mm, the resolution (8 subdivisions) is 0.001mm, and the repeated positioning accuracy is 0.01mm;
3. Azimuth rotation: Adopting an integrated structure of shaft ring, worm gear, and worm gear; High precision, large bearing capacity, and long service life; Adjustable clearance caused by long-term use, with minimal air return; 57 stepper motor; The rotation center coincides with strict eccentricity tolerance and end face runout tolerance; There is a zero setting; This is a company standard product;
The worm gear transmission ratio is 720:1, the repeated positioning accuracy is 0.00125 °, the separation rate is 2 ″, and the load is 100 kilograms;

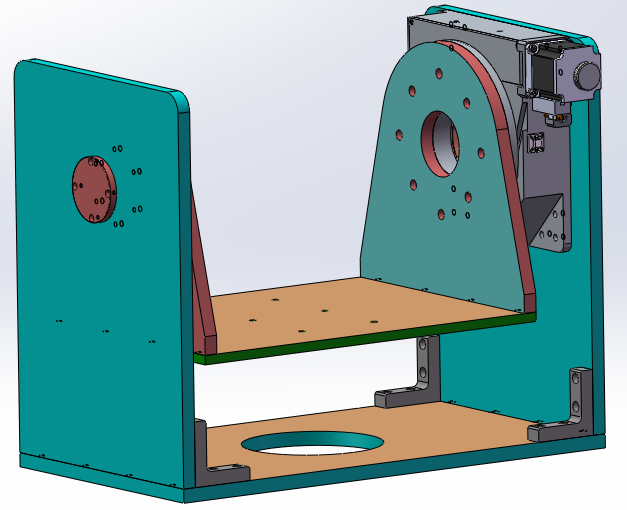

4. Pitching structure: Adopting a U-shaped support structure, the structure is stable; The rotating part adopts the standard 7SRA5200 rotary table, which is an integrated structure of shaft ring, worm gear, and worm gear; High precision, large bearing capacity, and long service life; 57 stepper motor; The rotation center coincides with strict eccentricity tolerance and end face runout tolerance; There is a zero setting; Built in grating loop closed-loop control;
The worm gear transmission ratio is 180:1, the repeated positioning accuracy is 0.005 °, the separation rate is 2 ″, and the load is 50 kilograms;

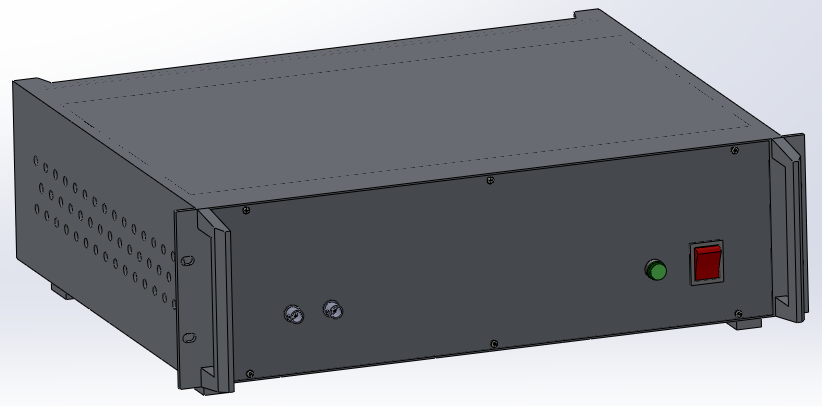

5. Controller: each motor is equipped with a standard interface and a 7SC504B motion controller, which can realize automatic control, and can be connected with a grating ruler and encoder to achieve closed-loop control; Suitable for cabinet installation;
Built in graphics LCD display module, 128X64 dot matrix; Equipped with a standard RS232 interface, combined with control software, displacement can be controlled through a computer; Equipped with OCX controls for user secondary development; The shell is equipped with ears at both ends, suitable for installation in a 19 inch standard cabinet;
