Home > PRODUCTS > Opto-mechanics > Mirror mounts

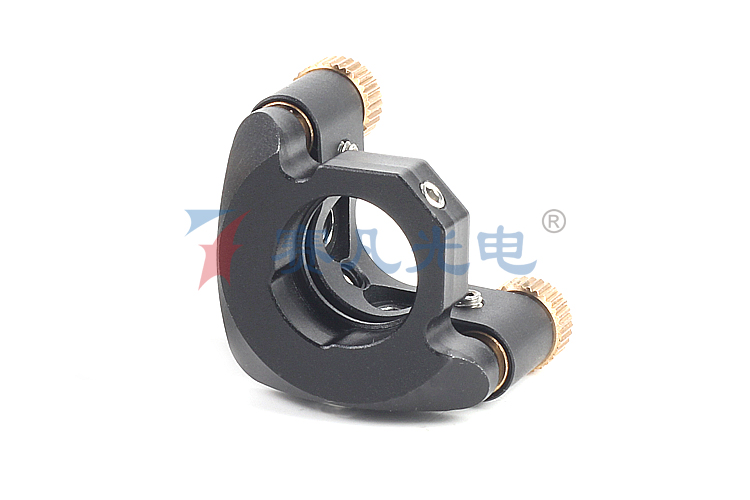

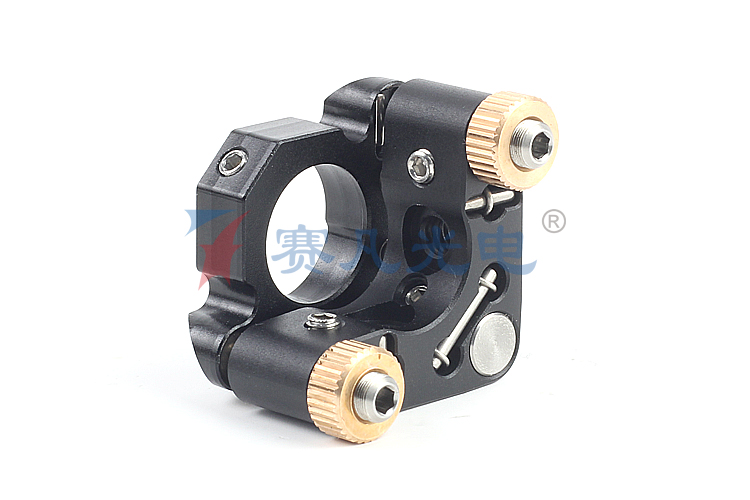

    7MM24127 两维调整镜架

    Model：

    7MM24127

    Characteristics：

    微型化紧凑结构，适用于空间较小的实验、生产场合; 采用聚四氟乙烯端头顶丝固定镜片，装卸镜片方便快捷; 镜架可做二维角度调整; 调整部采用两个细牙螺纹副驱动，调整精度高; 两个方向带沉头的 M4 螺纹安装孔位，方便向下连接组合

    Product?Inquiry Product Inquiry
    CAD?Download CAD Download
    Overviews Details

    7MM24127 两维调整镜架

    特点：

    1.微型化紧凑结构，适用于空间较小的实验、生产场合

    2.采用聚四氟乙烯端头顶丝固定镜片，装卸镜片方便快捷

    3.镜架可做二维角度调整

    4.调整部采用两个细牙螺纹副驱动，调整精度高

    5.两个方向带沉头的 M4 螺纹安装孔位，方便向下连接组合



    型号

    角度调整范围

    装卡镜片直径

    自重


    7MM24127

    θy、θz：±3°

    φ12.7mm（0.5 英寸）

    19  g

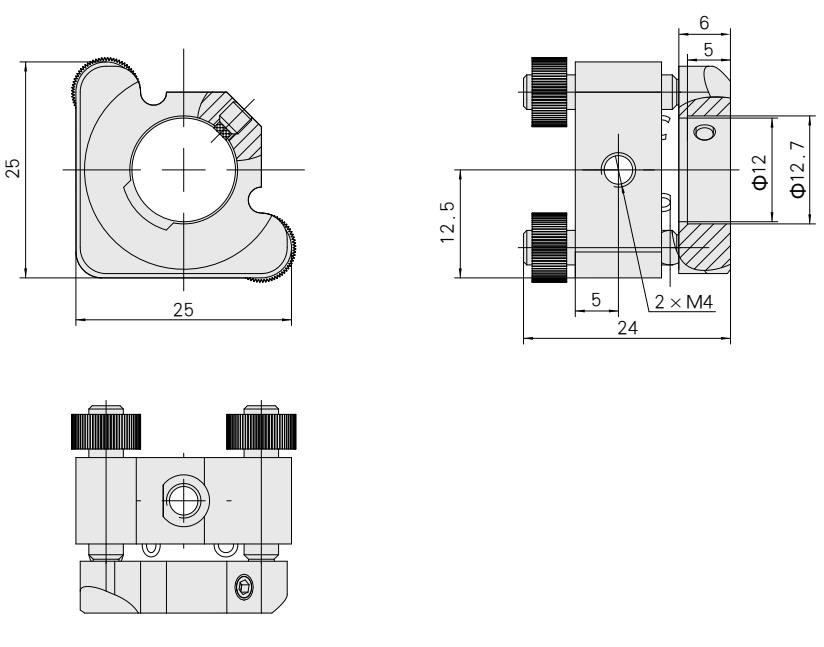

    7MM24127:
