7ISW30 / 7ISU30 Series Three Gratings Scanning Monochromators/Spectrometers
7ISW301、7ISW302、7ISW303、7ISW304、7ISW3051、7ISW3052
1、Asymmetrical Gzerny-Turner optical design eliminates aberration to improve specteal symmetry and resolution; 2、Design of Eliminating second dispersion,effective suppression of stray light; 3、Multi gratings are optional; 4、7ISW series through RS232 interface and 7ISU series through USB interface connect with the computer and realize automatic control; 5、7ISU Series（USB interface）support hot plug,plug and play,fast transmission; 6、Can be connected with all kinds of lamps produced by our company; 7、Can be equipped with a variety of fiber interface,connection of various kinds of fibers;
7ISW30/7ISU30 Series Three Gratings Scanning Monochromators/Spectrometers
Characteristics:

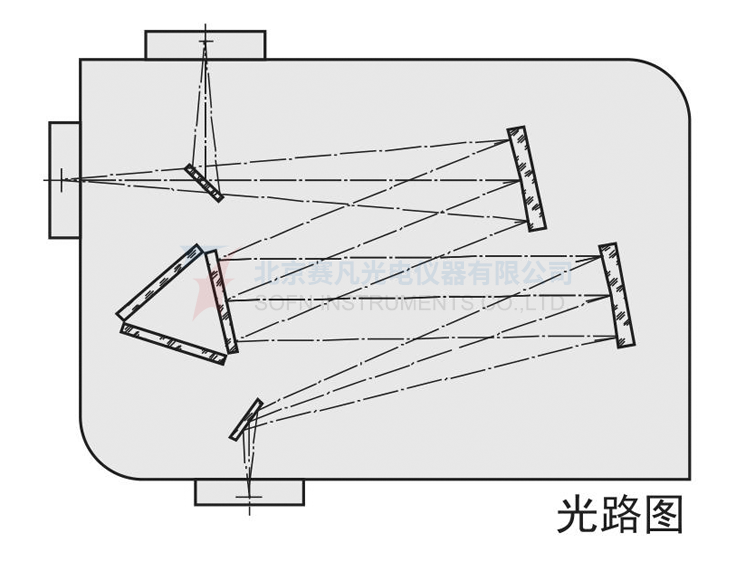

1、Asymmetrical Gzerny-Turner optical design eliminates aberration to improve specteal symmetry and resolution;
2、Design of Eliminating second dispersion,effective suppression of stray light;
3、Multi gratings are optional;
4、7ISW series through RS232 interface and 7ISU series through USB interface connect with the computer and realize automatic control;
5、7ISU Series（USB interface）support hot plug,plug and play,fast transmission;
6、Can be connected with all kinds of lamps produced by our company;
7、Can be equipped with a variety of fiber interface,connection of various kinds of fibers;
8、Can be connected with single point detectors,CCD and accessories produced by our company;
9、7ISW30/7ISW50/7ISW75 series and 7ISU30/7ISU50/7ISU75 series have two exits,either one can be equipped with CCD;
10、Precision guinded worm and gear,long life of use,ensure accuracy and reproducibility;
11、Equipped with a special interface for filling with nitrogen,convenient for UV and NIR application;
12、Strictly separate optical chamber and mechanical chamber,avoid the generation of stray light and pollution of lubricating oil trace for optical parts;
13、Good materials,optimum processes,best quality,good performance and consistency;
14、Casting structure guarantee the stability.
Ancillary products:

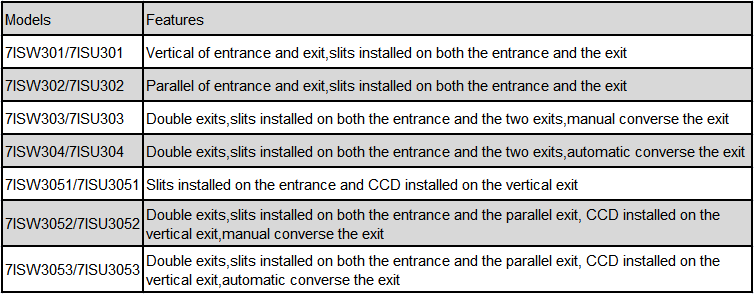

Model description:

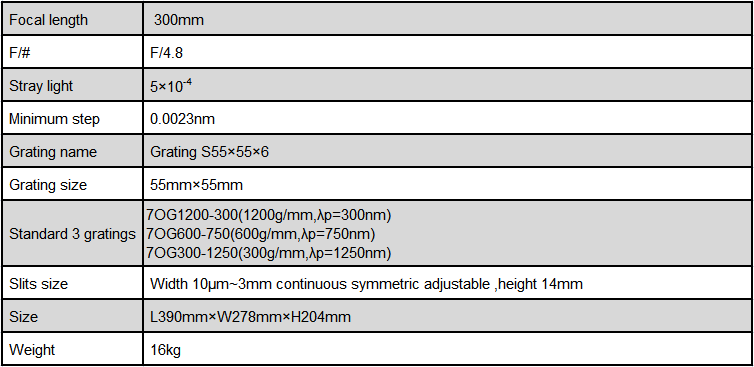

Specifications:

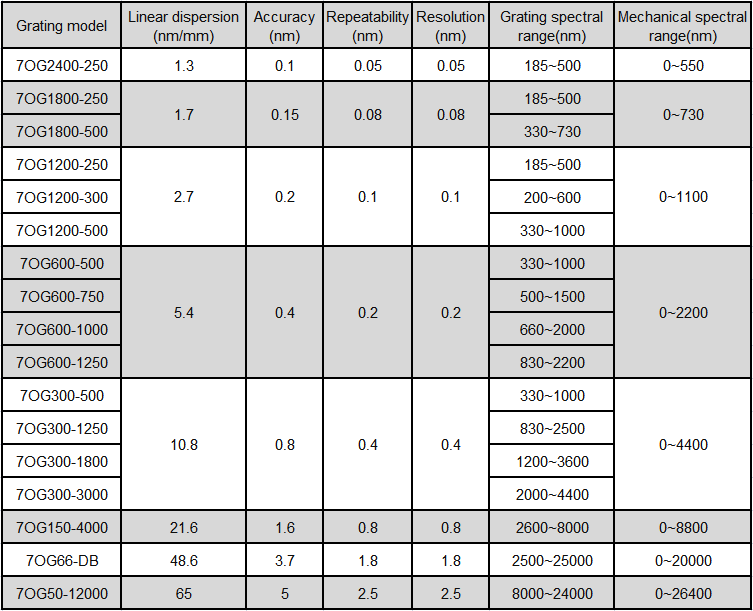

Specifications with different gratings:
Product drawings:
7ISW301、7ISW302、7ISW303、7ISW304、7ISW3051、7ISW3052、7ISW3053
