7ISW15/7ISU15 series double gratings scanning monochromators/spectrometers
7ISW151、7ISU151、7ISW152、7ISU152
1、Asymmetrical Czerny-Turner optical design eliminates aberration to improve spectral symmetry and resolution; 2、Design of Eliminating second dispersion, effective suppression of stray light; 3、Multi gratings are optional; 4、7ISW series through RS232 interface and 7ISU series through USB interface connect with the computer and realize automatic control; 5、7ISU Series (USB interface) support hot plug, plug and play, fast transmission; 6、Can be equipped with a variety of fiber interface, connection of various kinds of fibers; 7、Can be connected with all kinds of lamps produced by our company; 8、Can be connected with single point detectors, CCD and accessories produced by out company.
7ISW151 Double grating scanning monochromator




Characteristics:

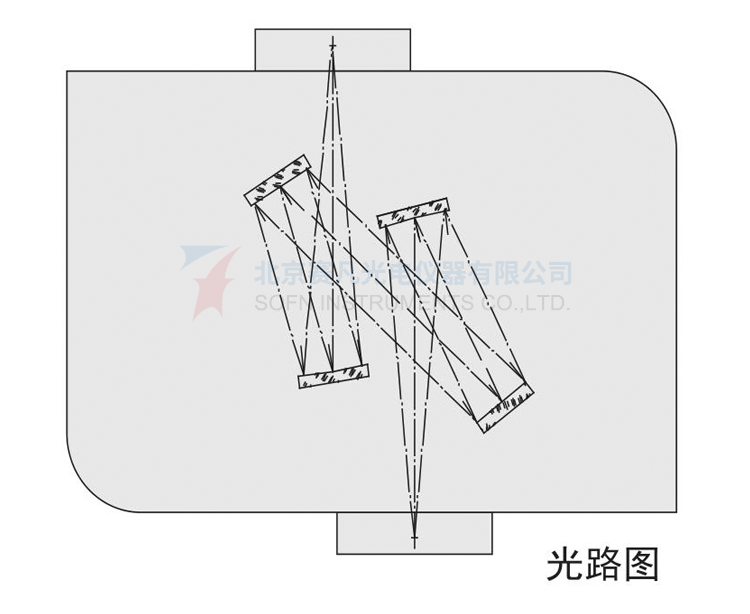

1、Asymmetrical Czerny-Turner optical design eliminates aberration to improve spectral symmetry and resolution;
2、Design of Eliminating second dispersion, effective suppression of stray light;
3、Multi gratings are optional;
4、7ISW series through RS232 interface and 7ISU series through USB interface connect with the computer and realize automatic control;
5、7ISU Series (USB interface) support hot plug, plug and play, fast transmission;
6、Can be equipped with a variety of fiber interface, connection of various kinds of fibers;
7、Can be connected with all kinds of lamps produced by our company;
8、Can be connected with single point detectors, CCD and accessories produced by out company.
Ancillary products:

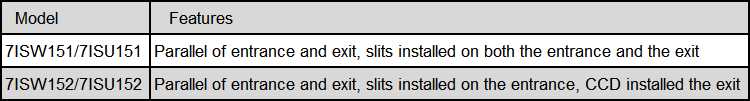

Model description:

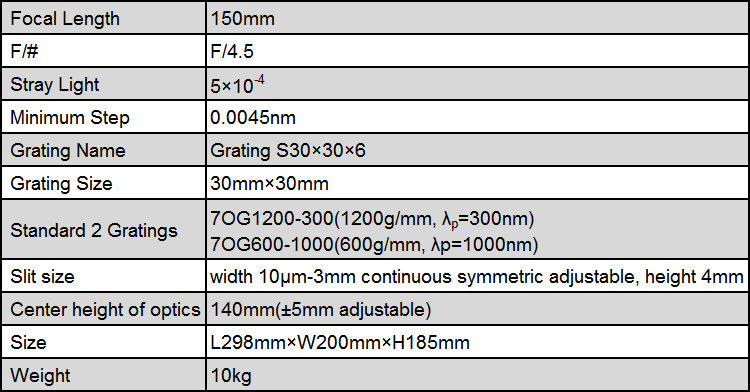

Specifications:

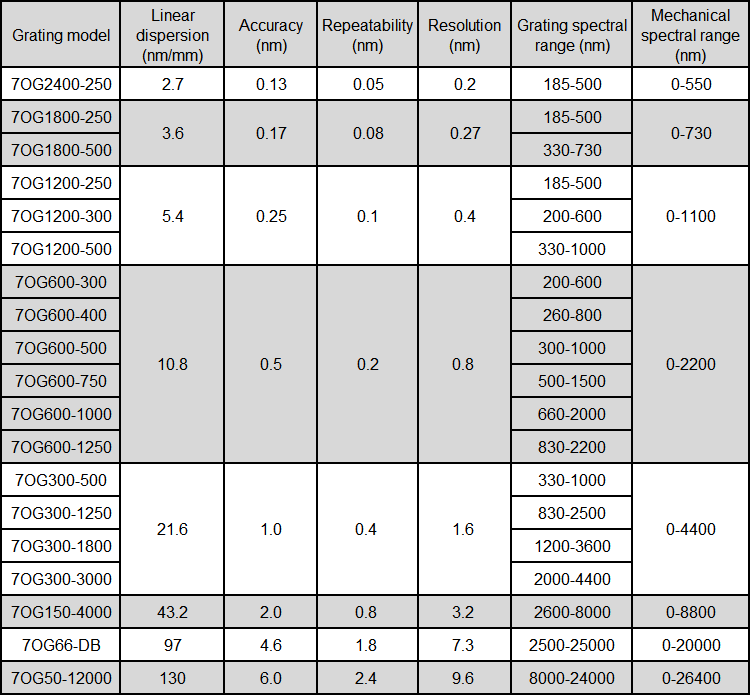

Specifications with different gratings:

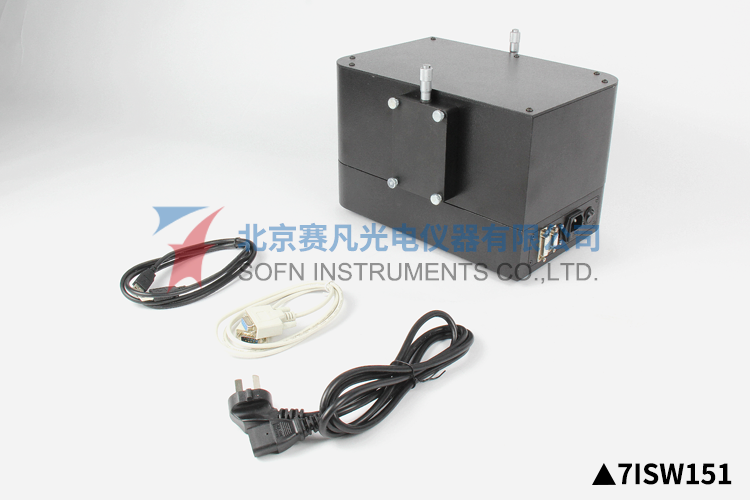

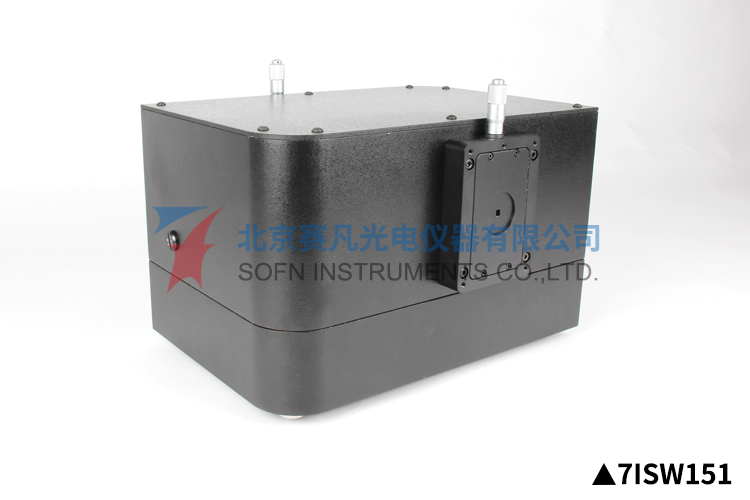

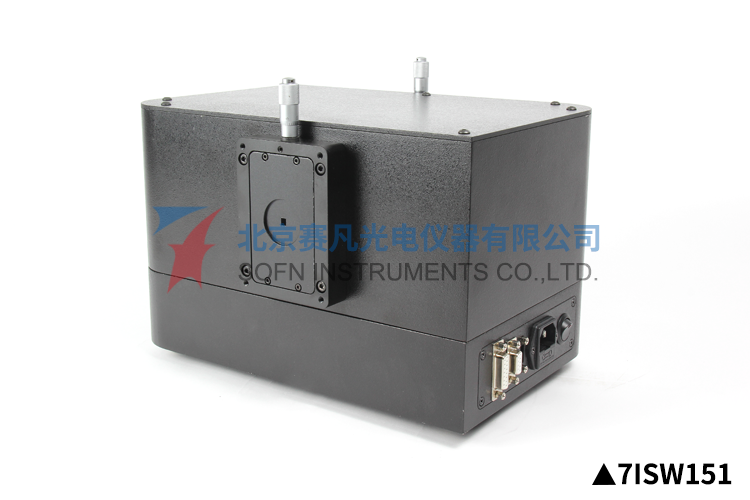

Product drawing:

7ISW151、7ISU151、7ISW152、7ISU152
