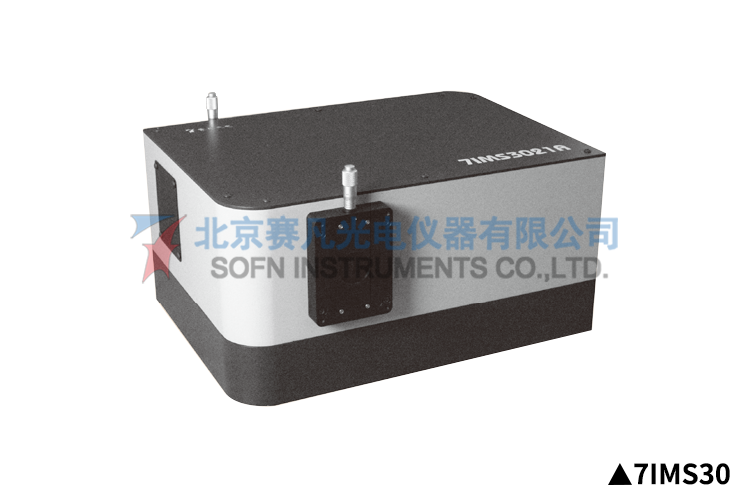

7IMS30/7IMU30 series single grating scanning monochromators
7IMS3011B、7IMU3011、7IMS3021B、7IMU3021、7IMS3012
1、Asymmetrical Czerny-Turner optical design eliminates aberration to improve spectral symmetry and resolution; 2、Design of Eliminating second dispersion, effective suppression of stray light; 3、Can be connected with all kinds of lamps produced by our company; 4、Can be equipped with a variety of fiber interface, connection of various kinds of fibers; 5、Can be connected with single point detectors and accessories produced by our company; 6、Precision grinded screw, long life of use, ensure accuracy and reproducibility; 7、Super anti-abrasion linear guide, long life design, stable operation and comfort, low noise; 8、7IMS series through RS232 interface and 7IMU series through USB interface connect with the computer and realize automatic control.
7IMS30/7IMU30 series single grating scanning monochromators
Characteristics:

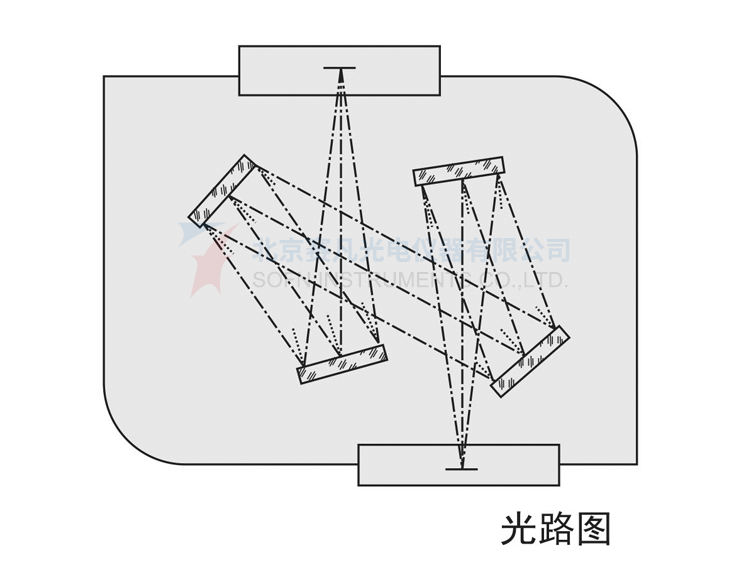

1、Asymmetrical Czerny-Turner optical design eliminates aberration to improve spectral symmetry and resolution;
2、Design of Eliminating second dispersion, effective suppression of stray light;
3、Can be connected with all kinds of lamps produced by our company;
4、Can be equipped with a variety of fiber interface, connection of various kinds of fibers;
5、Can be connected with single point detectors and accessories produced by our company;
6、Precision grinded screw, long life of use, ensure accuracy and reproducibility;
7、Super anti-abrasion linear guide, long life design, stable operation and comfort, low noise;
8、7IMS series through RS232 interface and 7IMU series through USB interface connect with the computer and realize automatic control.
Ancillary products:

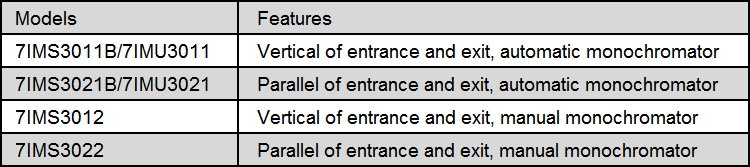

Model description:
Specifications:

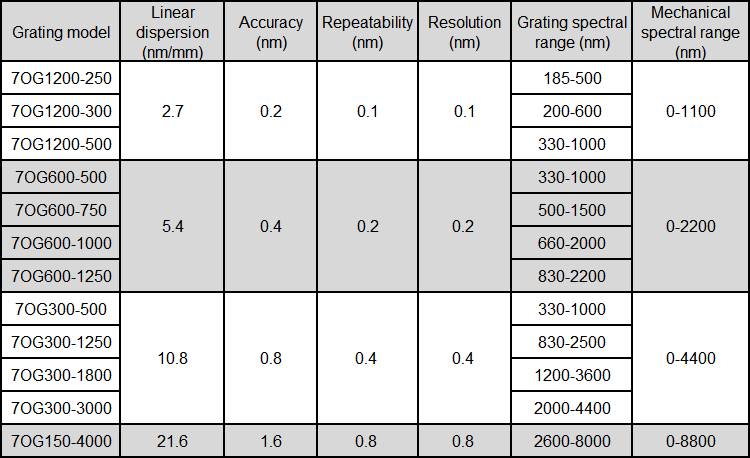

Specifications with different gratings:
Product drawing:
7IMS3011B、7IMU3011、7IMS3021B、7IMU3021、7IMS3012、7IMS3022
