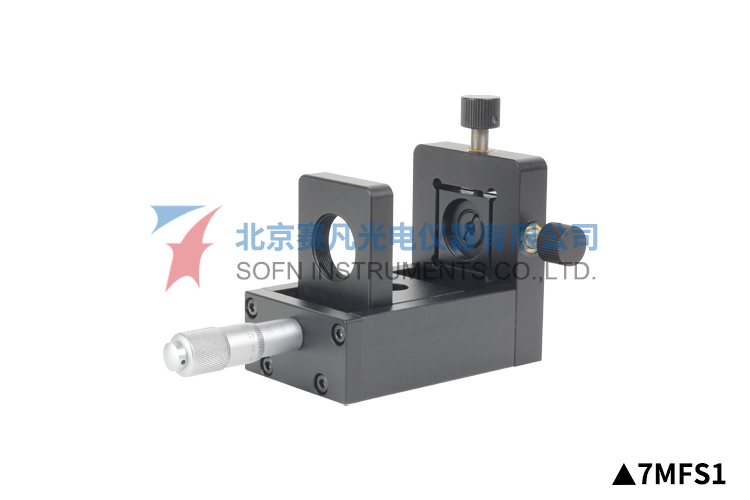

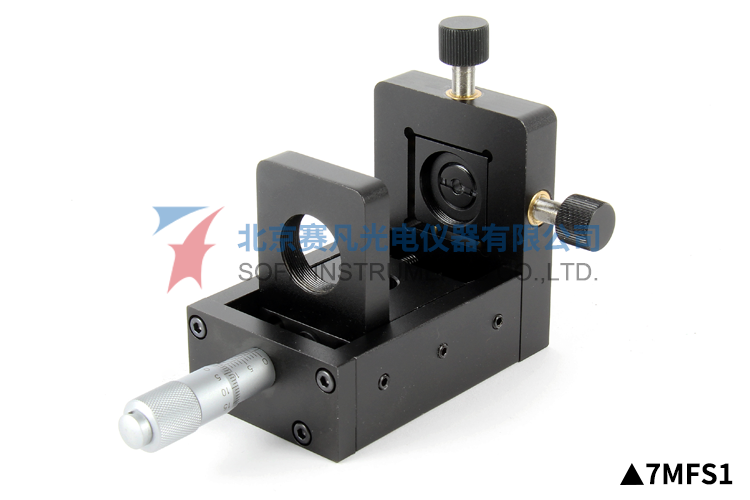

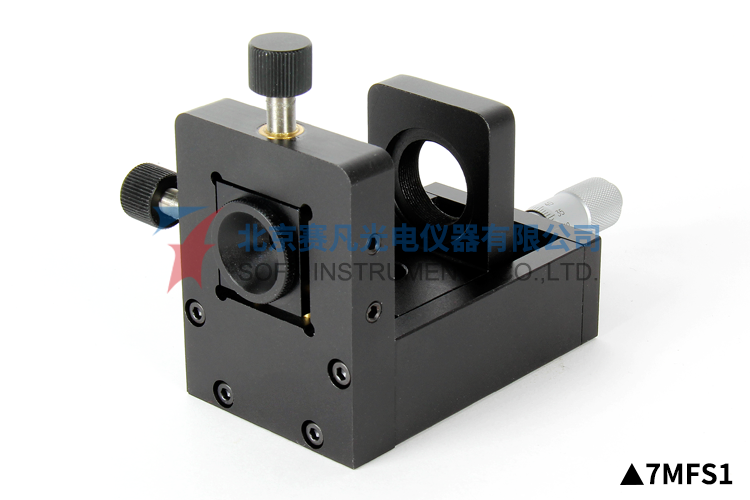

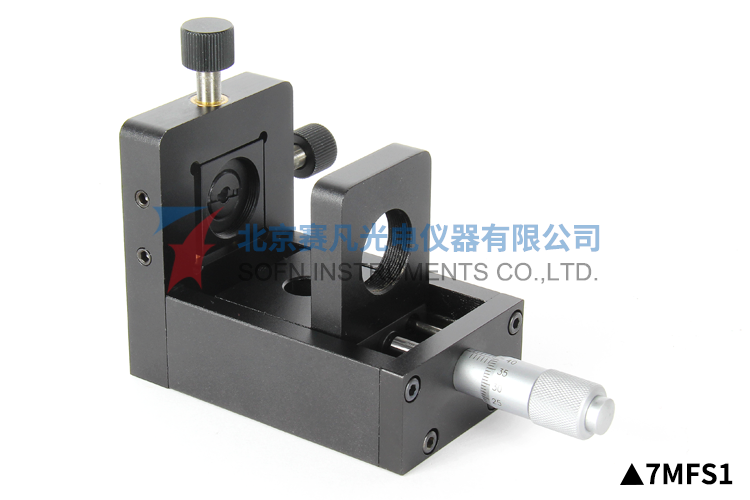

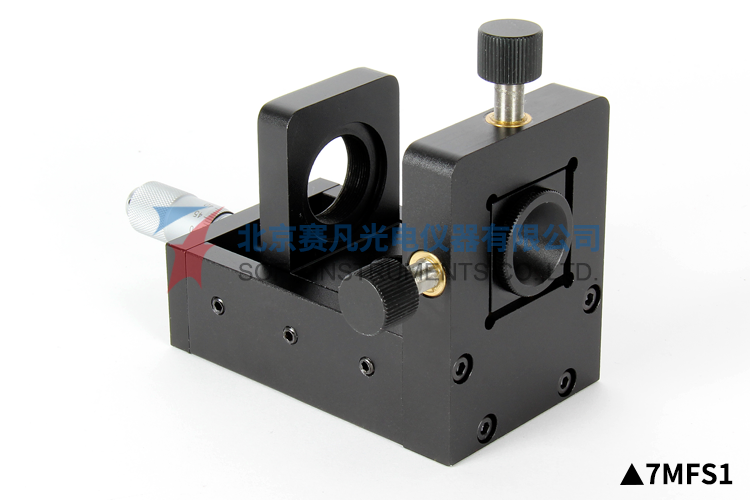

7MFS1 Spatial Filter
7MFS1
1、Equipped with standard mount for microobjective and pinhole; 2、Microobjective mount can be adjusted by micrometer,distance between the microobjective and pinhole is continuous and quantitative; 3、Precision linear ball guide makes stable movement and high precision; 4、Two M6×0.25 fine thread on the pinhole mount to exactly realize two-dimensional translation.
7MFS1 Spatial Filter
Characteristics:
1、Equipped with standard mount for microobjective and pinhole;
2、Microobjective mount can be adjusted by micrometer,distance between the microobjective and pinhole is continuous and quantitative;
3、Precision linear ball guide makes stable movement and high precision;
4、Two M6×0.25 fine thread on the pinhole mount to exactly realize two-dimensional translation.
Ancillary products:

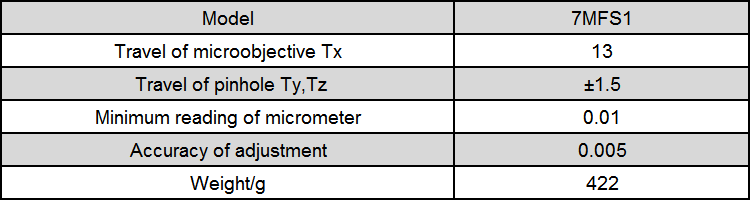

Specifications:

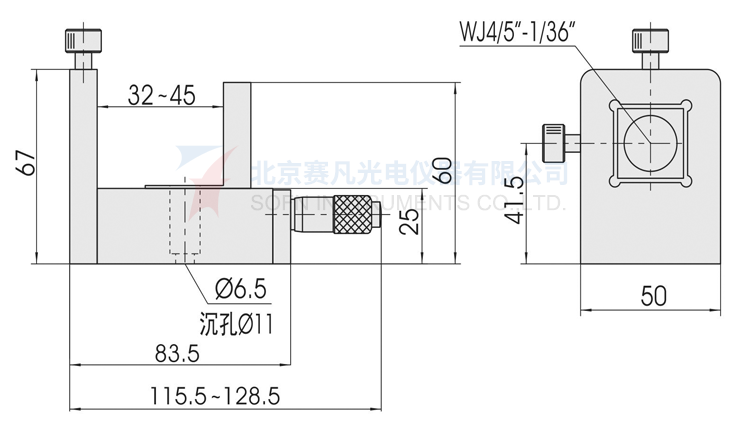

Product drawings:
7MFS1
