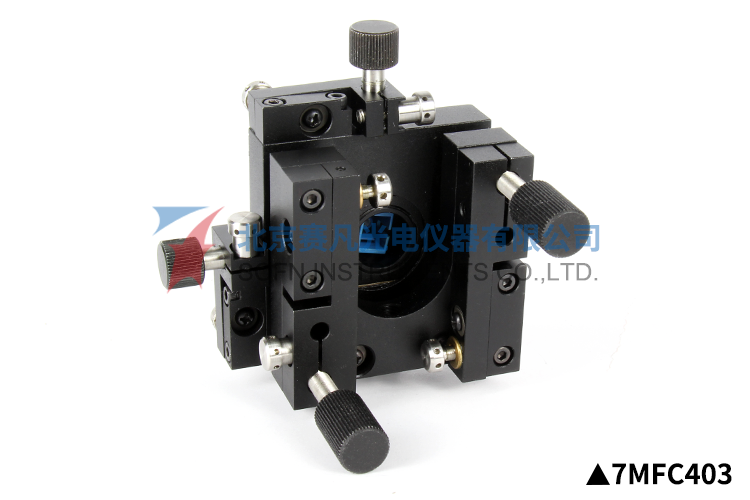

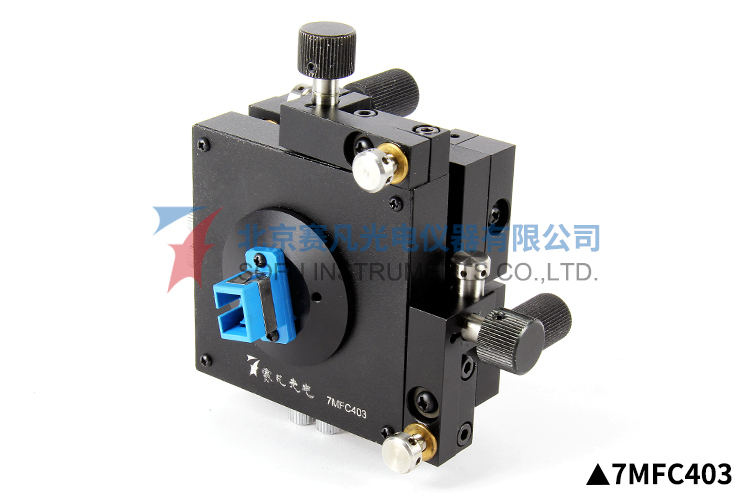

7MFC403 Fiber Coupler
Model：
7MFC403
Characteristics：
This series provide ultra fine adjustment for the fiber in four dimentios.Because of subdivided structure the resolution can reach 0.01μm in Ty,Tz direction and 0.00001° in θy and θz angle adjustment, more fine and more accurate.
7MFC403 Fiber Coupler
Characteristics:
This series provide ultra fine adjustment for the fiber in four dimentios.Because of subdivided structure the resolution can reach 0.01μm in Ty,Tz direction and 0.00001° in θy and θz angle adjustment, more fine and more accurate.
Ancillary products:

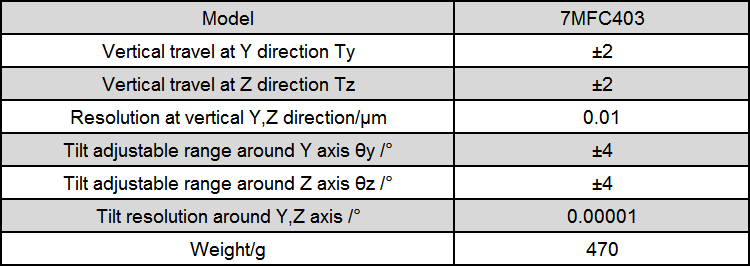

Specifications:

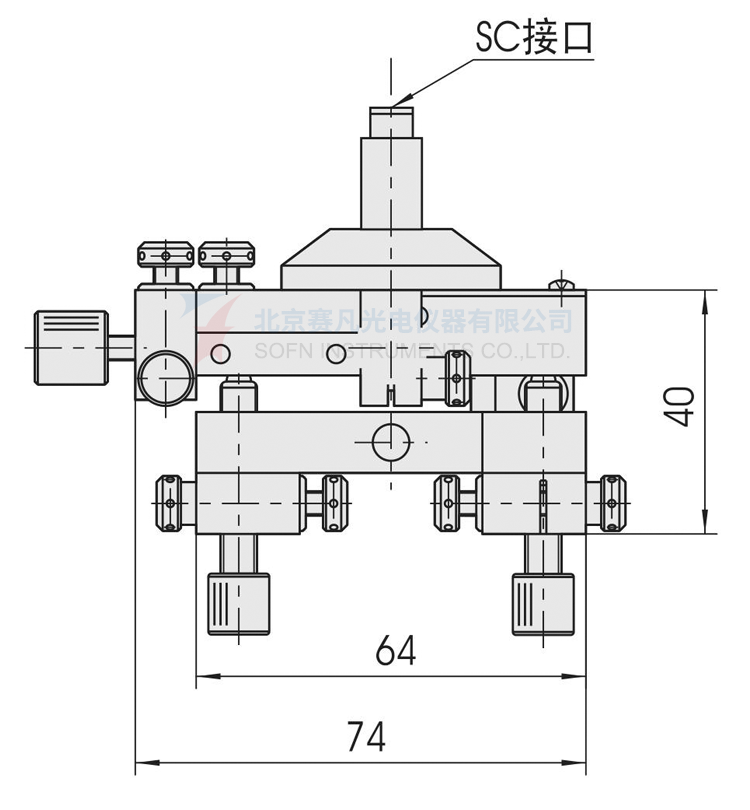

Product drawings:
7MFC403
