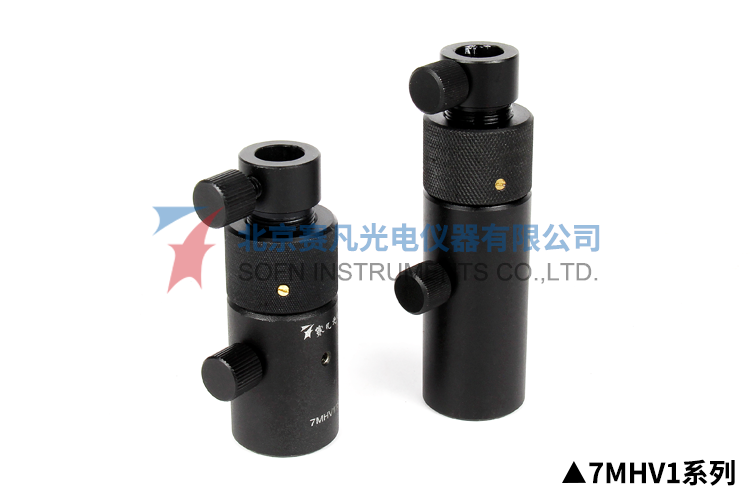

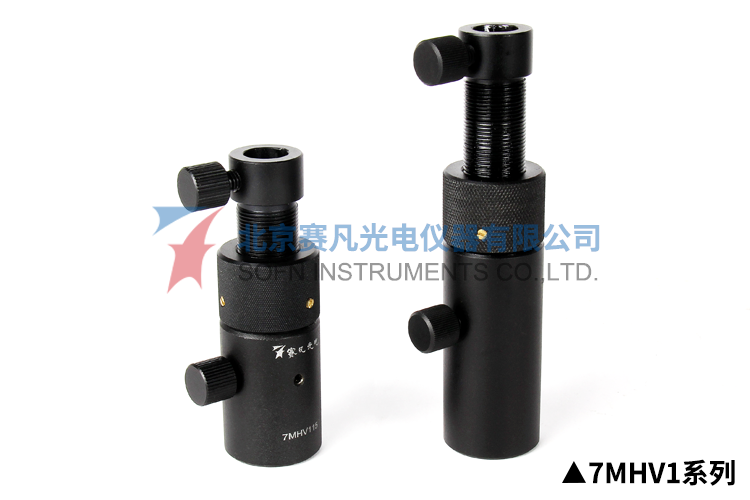

7MHV1 Series Lifting Post Holders
7MHV115、7MHV125
1、Adjusting the height of the post without changing the phase angle; 2、Fine processed thread for adjusting the height of post; 3、For fixing 7MP1~7MP4 series support posts at different height; 4、V-shape slot by the center hole makes no positioning change during adjusting and stable clamping; 5、Both the support post and the rotating part can be stably clamped; 6、M6 screw hole on bottom is convenience for connecting with other opto-mechanics.
7MHV1 Series Lifting Post Holders
Characteristics:
1、Adjusting the height of the post without changing the phase angle;
2、Fine processed thread for adjusting the height of post;
3、For fixing 7MP1~7MP4 series support posts at different height;
4、V-shape slot by the center hole makes no positioning change during adjusting and stable clamping;
5、Both the support post and the rotating part can be stably clamped;
6、M6 screw hole on bottom is convenience for connecting with other opto-mechanics.
Ancillary products:

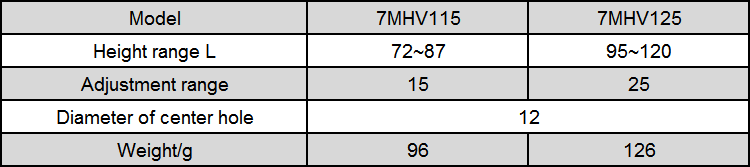

Specifications:
Product drawing:
7MHV115、7MHV125
