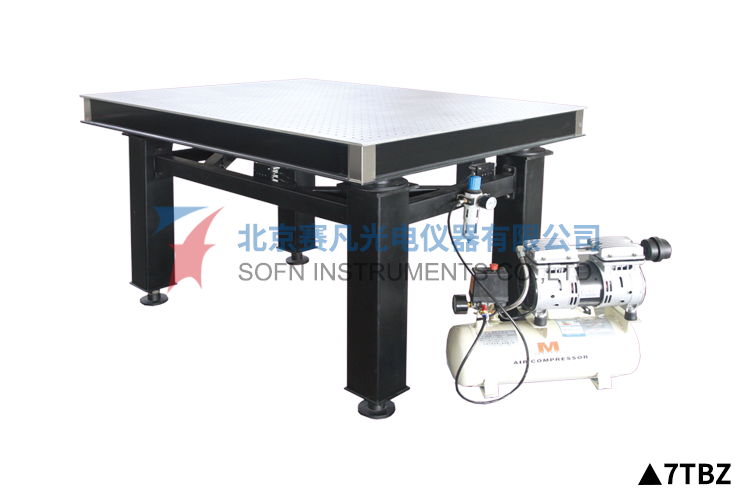

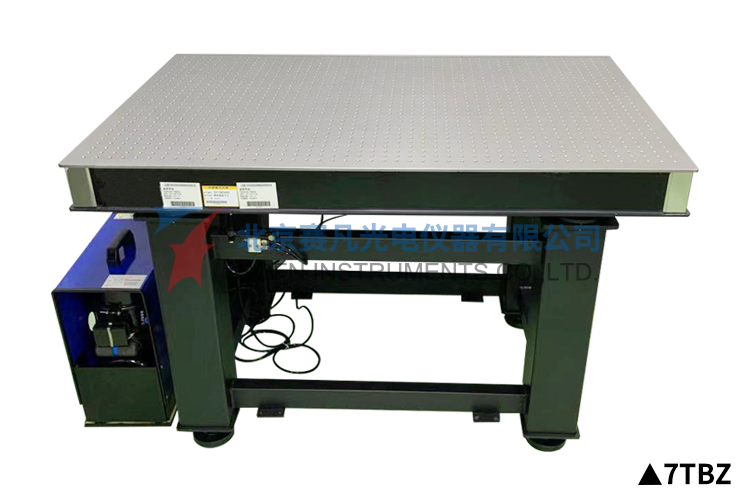

7TBZ Automatic Balanced Flotation Optical Tables
7TBZ
1、Isolation support adopts dual chamber composite membrane bag, damping fluid and air with; 2、Auto leveling and inflation, all pneumatic actuator elements are made in FESTO Germang; 3、Silent air pump, low noise (less than 65 dB); 4、Easy adjustment, stable, reliable and compact; 5、Suitable for high vibration-isolation requirement.
7TBZ Automatic Balanced Flotation Optical Tables
Characteristics:
1、Isolation support adopts dual chamber composite membrane bag, damping fluid and air with;
2、Auto leveling and inflation, all pneumatic actuator elements are made in FESTO Germang;
3、Silent air pump, low noise (less than 65 dB);
4、Easy adjustment, stable, reliable and compact;
5、Suitable for high vibration-isolation requirement.

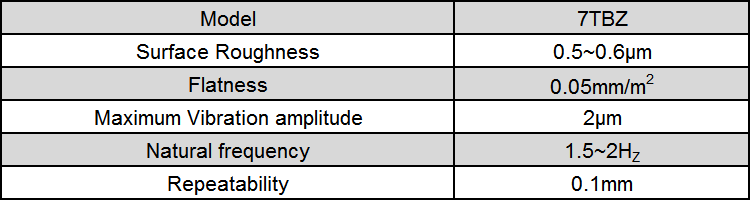

Specifications:
Parameters:

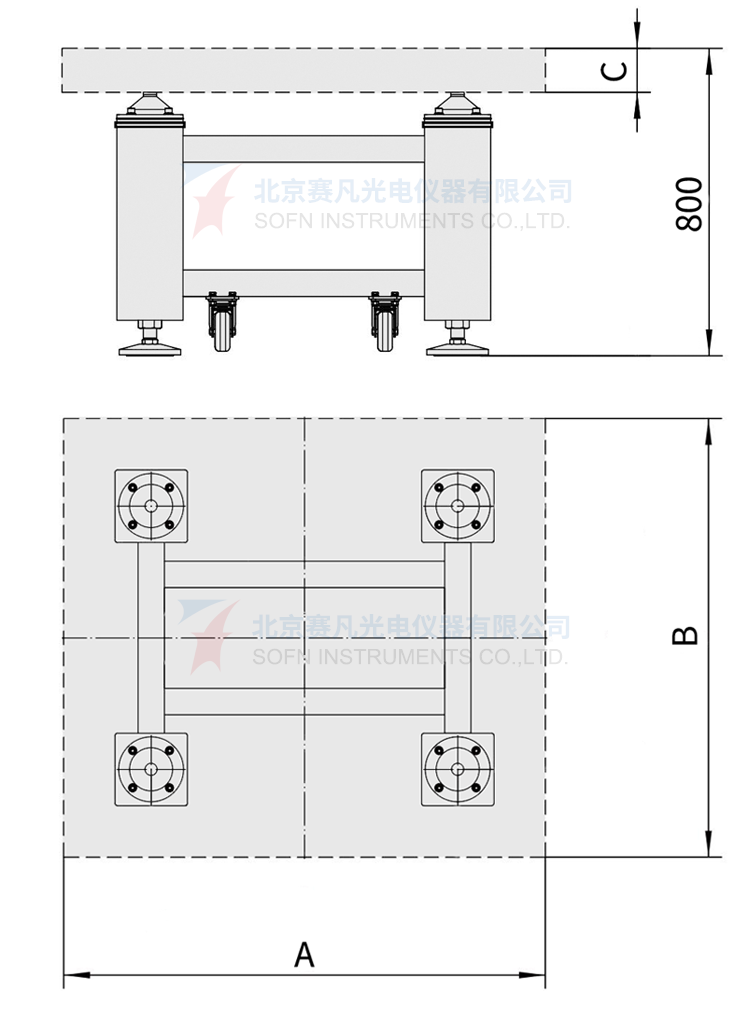

Product drawings:
7TBZ06-06、7TBZ075-075、7TBZ09-06、7TBZ10-07、7TBZ10-08、7TBZ12-08、7TBZ15-09、7TBZ15-10、7TBZ16-09、7TBZ18-12、7TBZ20-10、7TBZ20-12、7TBZ24-12、7TBZ30-10、7TBZ30-12、7TBZ30-15、7TBZ35-12、7TBZ35-15、7TBZ40-15、7TBZ42-15、7TBZ48-15、7TBZ54-15、7TBZ60-15
