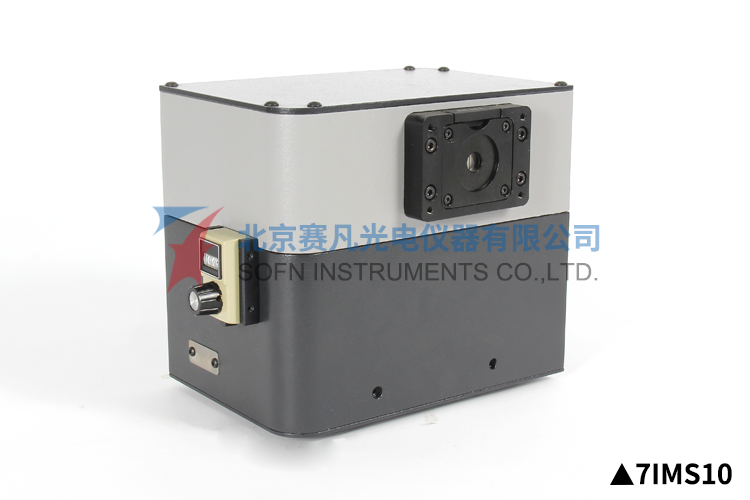

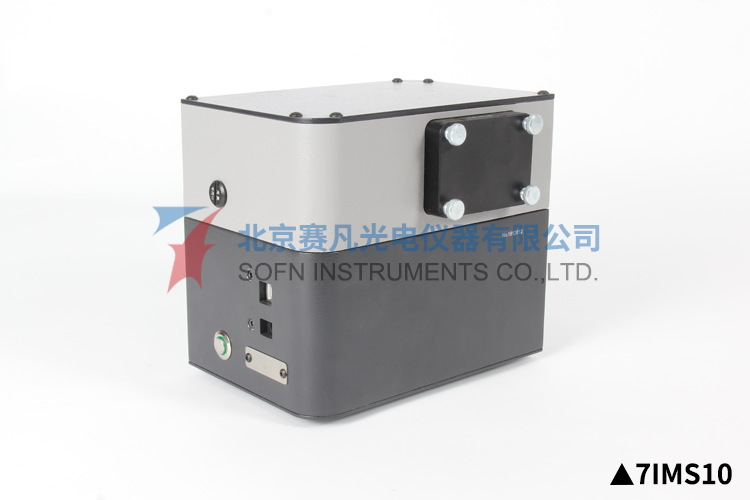

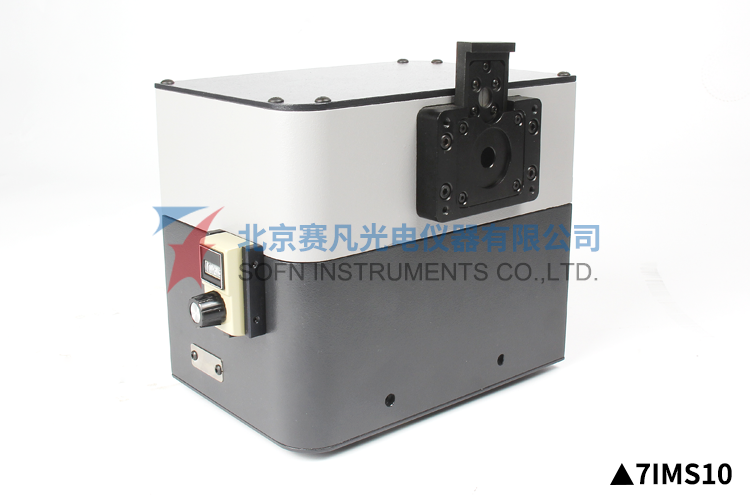

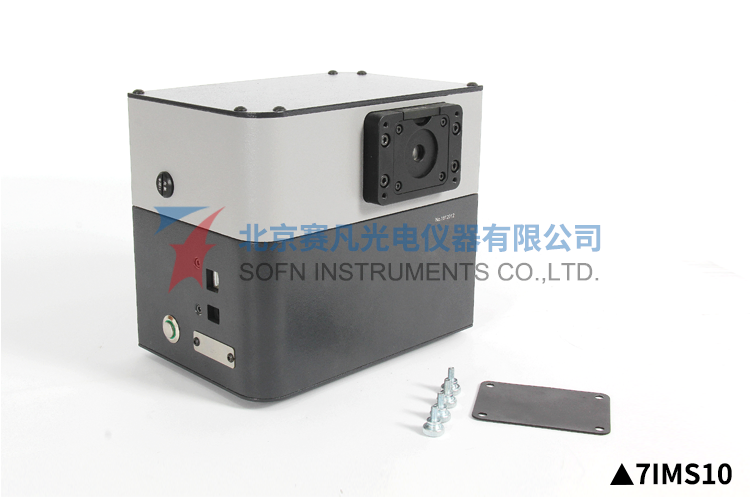

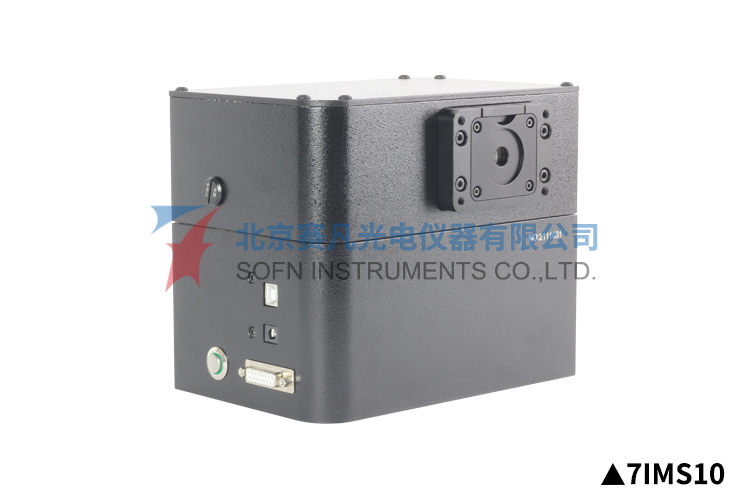

7IMS10/7IMU10 series of single grating scanning monochromators
Characteristics:
1、Asymmetrical Czerny-Turner optical design eliminates aberration to improve spectral symmetry and resolution;
2、Design of Eliminating second dispersion, effective suppression of stray light;
3、Can be connected with all kinds of lamps produced by our company;
4、Can be equipped with a variety of fiber interface, connection of various kinds of fibers;
5、Can be connected with single point detectors and accessories produced by our company;
6、Precision grinded screw, long life of use, ensure accuracy and reproducibility;
7、Super anti-abrasion linear guide, long life design, stable operation and comfort, low noise;
8、7IMS series through RS232 interface and 7IMU series through USB interface connect with the computer and realize automatic control.
Ancillary products:

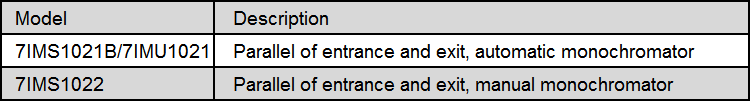

Model description:

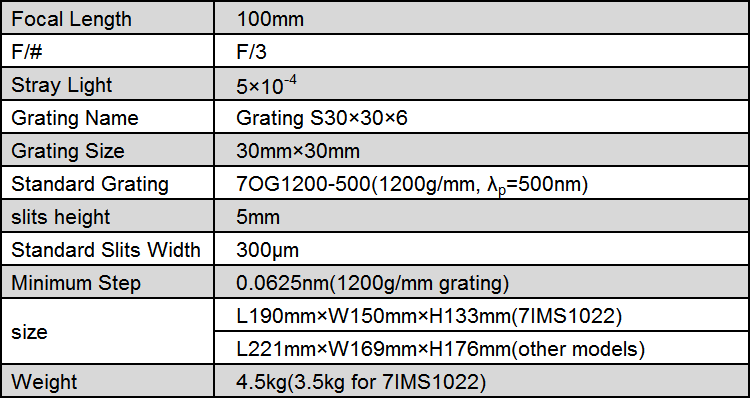

Specifications:

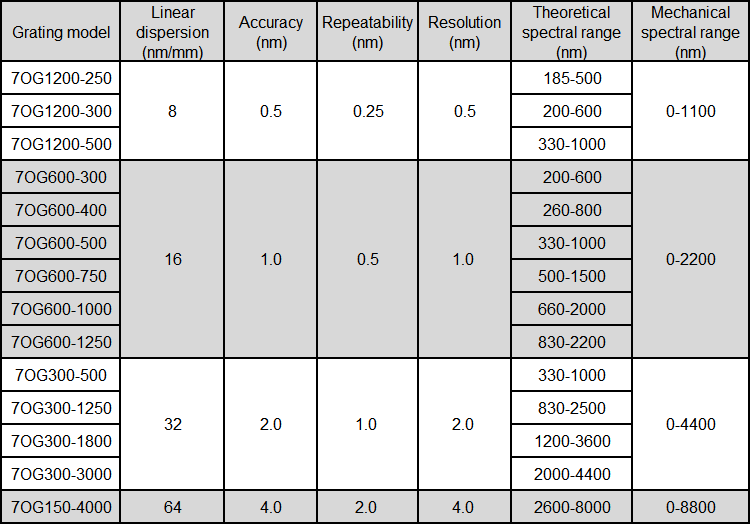

Specifications with different gratings:
Product drawing:
7IMS1021B、7IMU1021、7IMS1022
