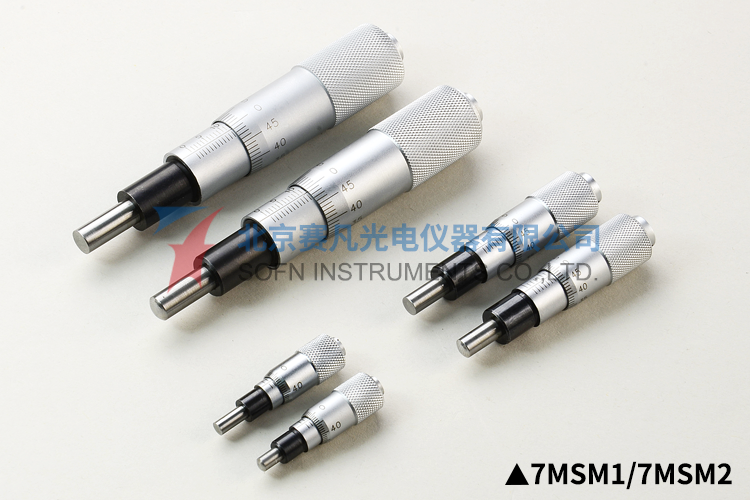

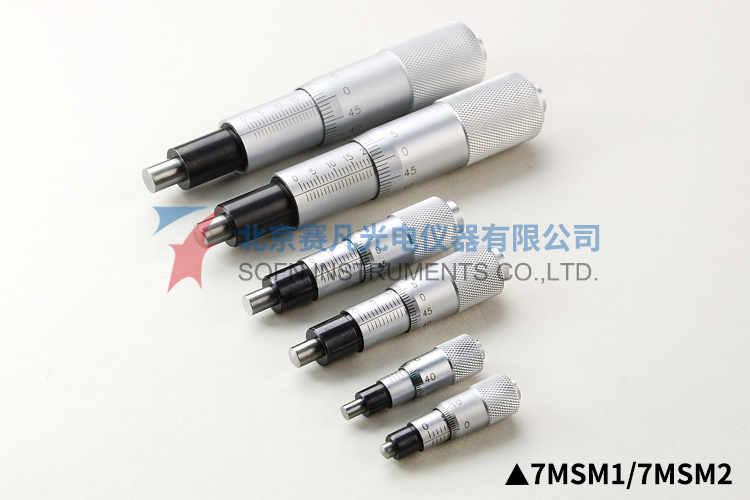

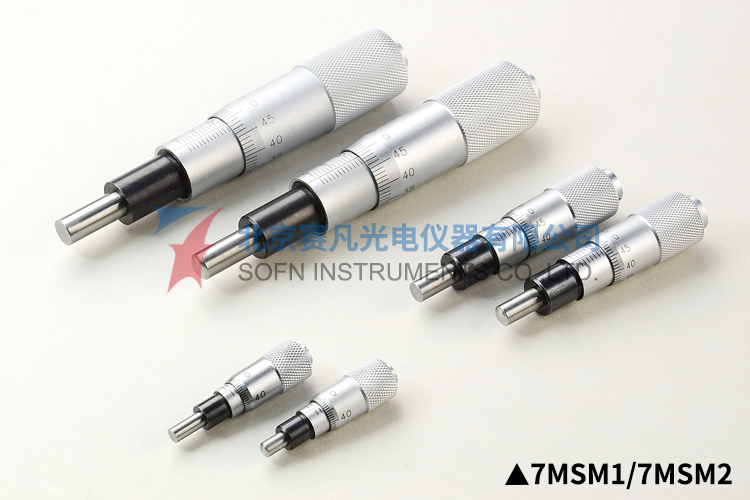

7MSM1/7MSM2 Series Micrometers
7MSM106/7MSM206、7MSM113/7MSM213、7MSM125/7MSM225
1、7MSM series of micrometers has been through the nationl meteoilgical certification and provide accruate resdings,and its rotaion is comfortable with beautiful appearance and durable.It can be choosen for a quantitative measreenent; 2、Ball head on the end (7MSM1 series),suitable for plane surface; 3、Flat head on the end (7MSM2 series),suitable for spherical surface; 4、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by fine adjustment screws.
7MSM1/7MSM2 Series Micrometers



Characteristics:
1、7MSM series of micrometers has been through the nationl meteoilgical certification and provide accruate resdings,and its rotaion is comfortable with beautiful appearance and durable.It can be choosen for a quantitative measreenent;
2、Ball head on the end (7MSM1 series),suitable for plane surface;
3、Flat head on the end (7MSM2 series),suitable for spherical surface;
4、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by fine adjustment screws.
Ancillary products:

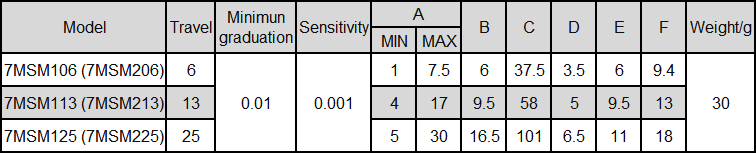

Specifications:

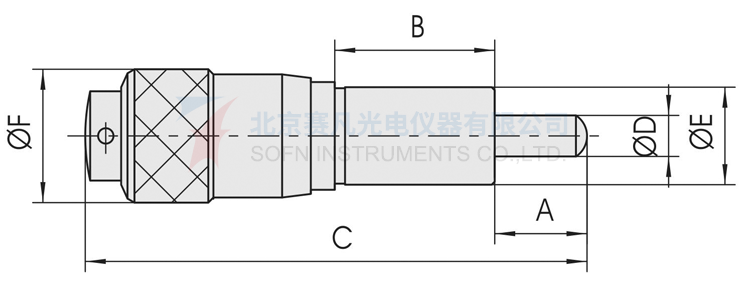

Product drawing:

7MSM106/7MSM206、7MSM113/7MSM213、7MSM125/7MSM225
