7MS1 / 7MS2 Series Fine Screws
7MS106 / 7MS206、7MS125 / 7MS225、7MS150 / 7MS250等
1、Ball head on the end (7MS1 series),suitable for plane surface; 2、Flat head on the end (7MS2 series),suitable for spherical surface; 3、Hand wheel on the tail; 4、Standard nut without locking; 5、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by micrometer.

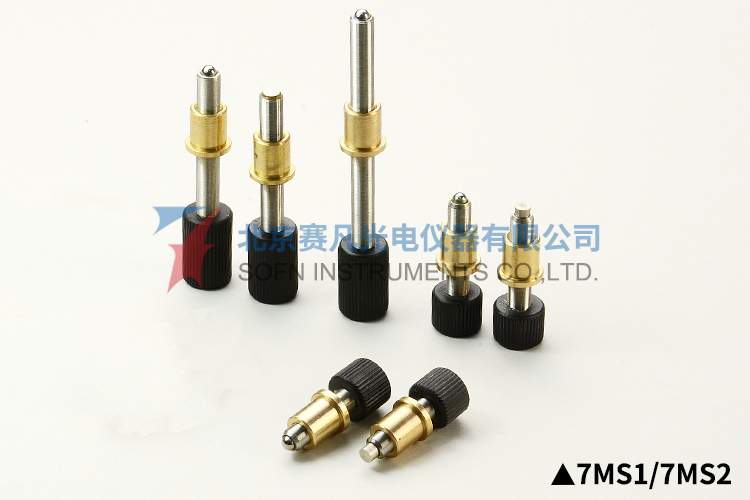

7MS1/7MS2 Series Fine Screws
Characteristics:
1、Ball head on the end (7MS1 series),suitable for plane surface;
2、Flat head on the end (7MS2 series),suitable for spherical surface;
3、Hand wheel on the tail;
4、Standard nut without locking;
5、Standard mounting dimension,can be equipped to the mounts or transmission stages produced by SOFN or interchanged by micrometer.
Ancillary products:

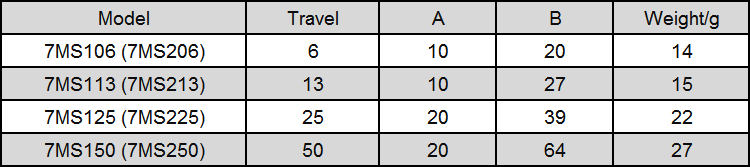

Specifications:

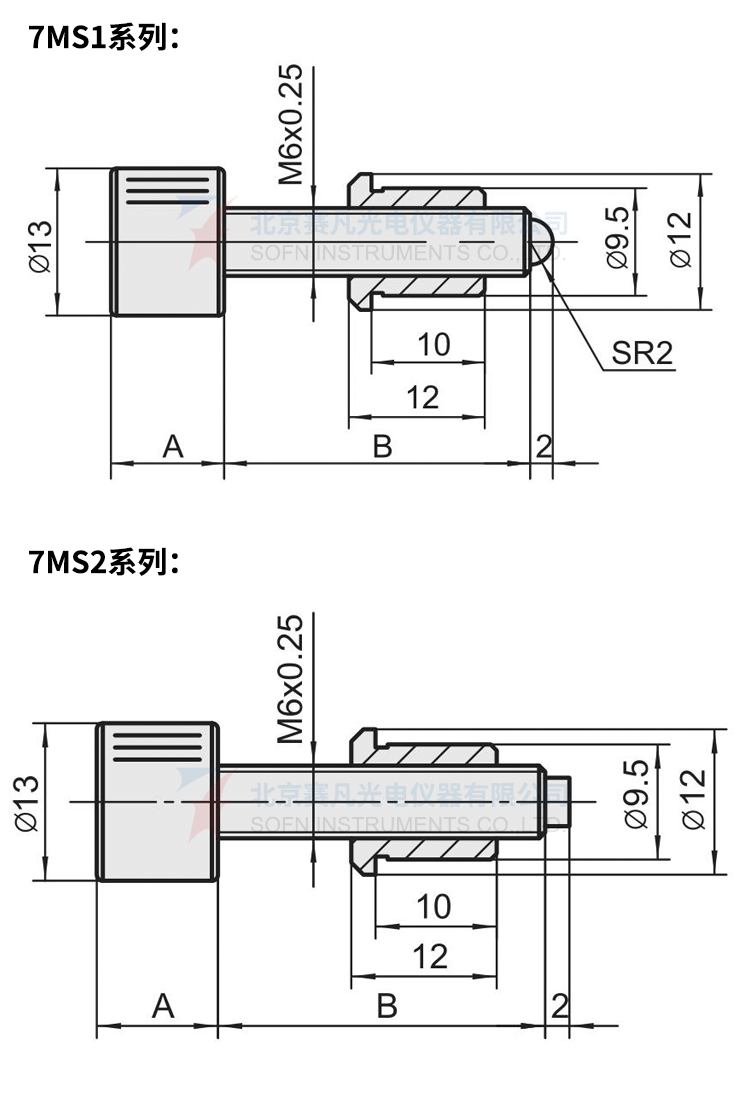

Product drawings:
7MS106、7MS113、7MS125、7MS150、7MS206、7MS213、7MS225、7MS250
