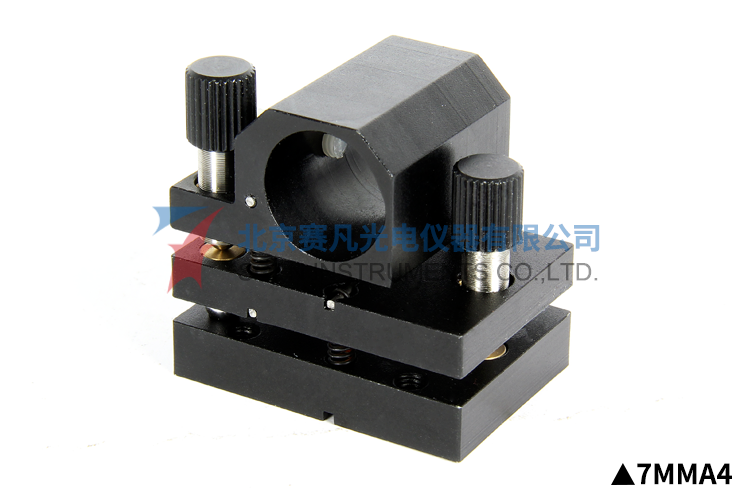

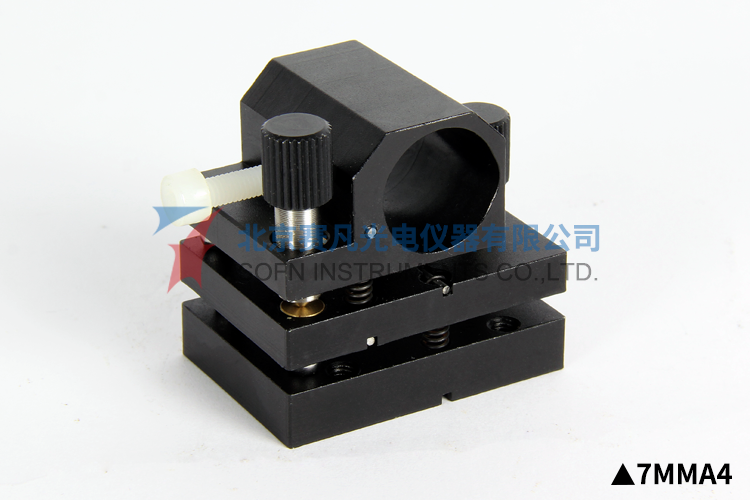

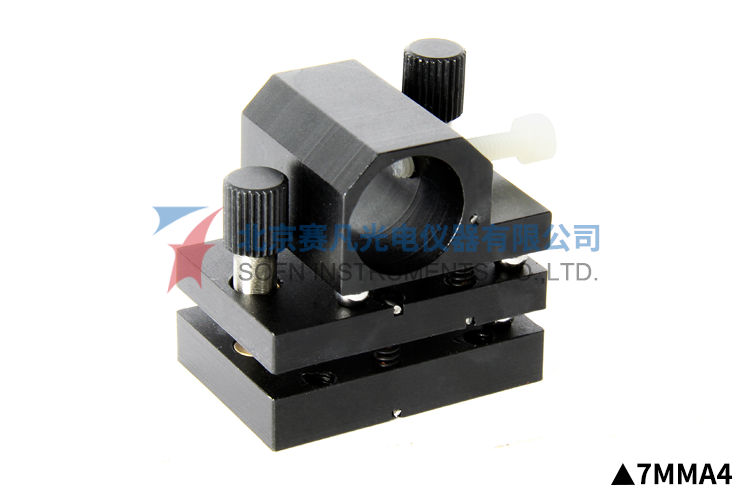

7MMA4 Laser Mount
7MMA4
1、The laser diode can be adjusted on pitch position and also with up or down translation adjustment; 2、Locking screw using non-metallic materials,position to the hole for the locking screw can be made due to a long groove on it.Holding stability and security; 3、Can clamp the laser diodes with different diameters or cylinder; 4、With M6×0.25 fine teeth screw driving,spring reset with high quality.
7MMA4 Laser Mount
Characteristics:
1、The laser diode can be adjusted on pitch position and also with up or down translation adjustment;
2、Locking screw using non-metallic materials,position to the hole for the locking screw can be made due to a long groove on it.Holding stability and security;
3、Can clamp the laser diodes with different diameters or cylinder;
4、With M6×0.25 fine teeth screw driving,spring reset with high quality.
Ancillary products:

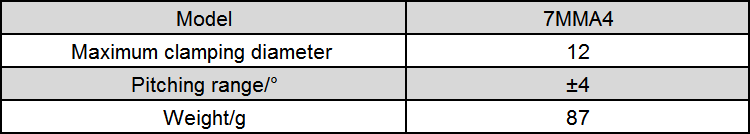

Specifications:

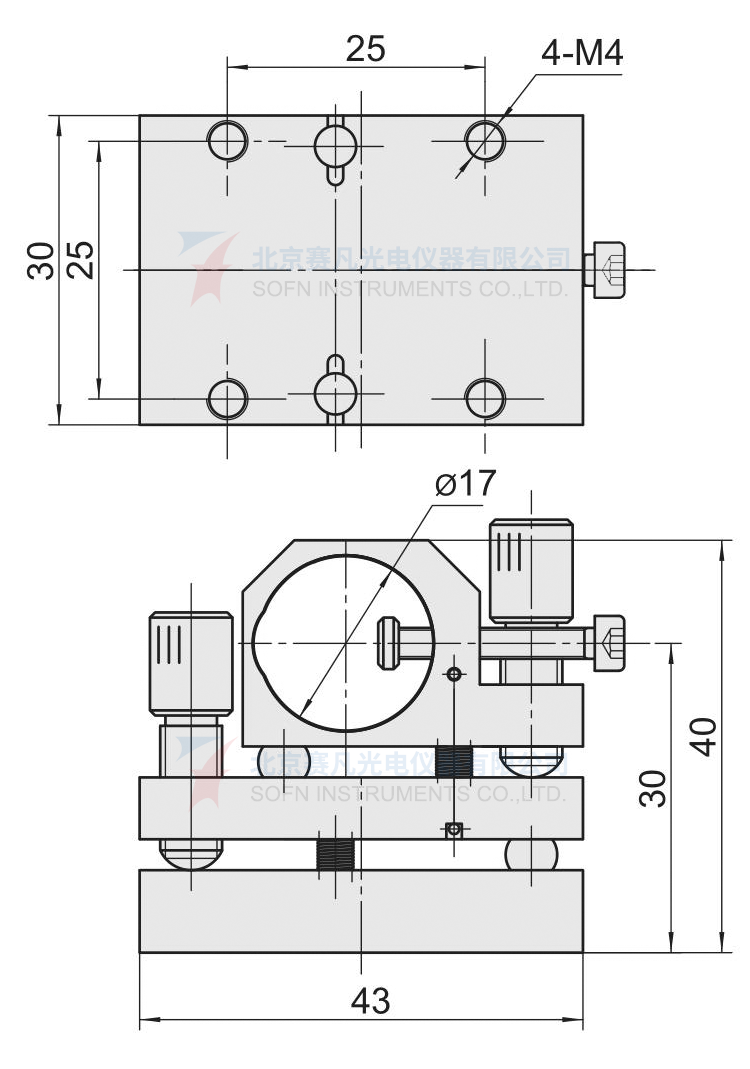

Product drawings:
7MMA4
