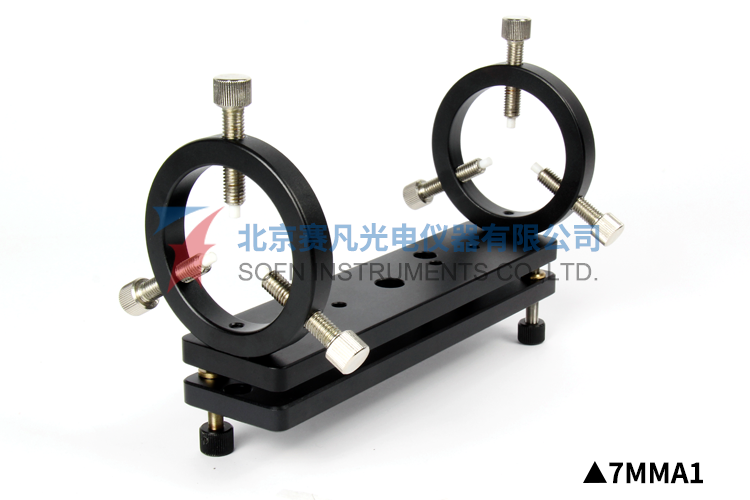

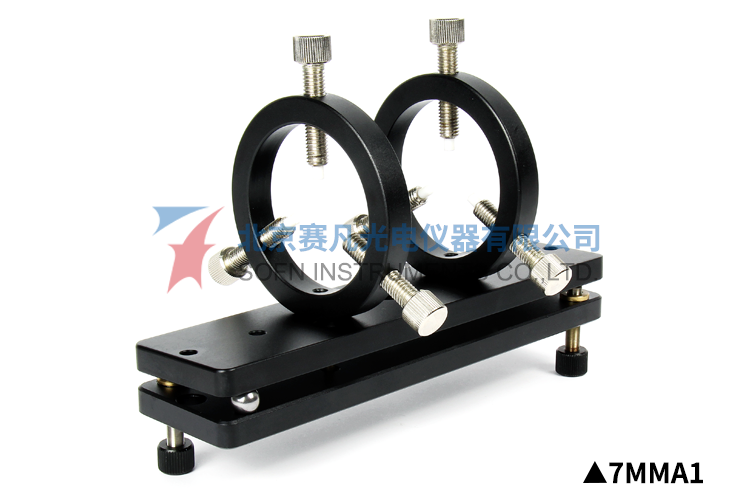

7MMA1 Laser Mount
7MMA1
1、For rotating and pitching laser diode; 2、Three-claw on both the front and the end, stable fixing; 3、For clamping different diameters of the laser diode or cylinder, and the center can be adjusted; 4、The mutual distance between the two three-claw is adjustable, and suitablefor different length of laser diode; 5、M6×0.25 fine thread for adjustment and belleville spring for reset.
7MMA1 Laser Mount
Characteristics:
1、For rotating and pitching laser diode;
2、Three-claw on both the front and the end, stable fixing;
3、For clamping different diameters of the laser diode or cylinder, and the center can be adjusted;
4、The mutual distance between the two three-claw is adjustable, and suitablefor different length of laser diode;
5、M6×0.25 fine thread for adjustment and belleville spring for reset.
Ancillary products:

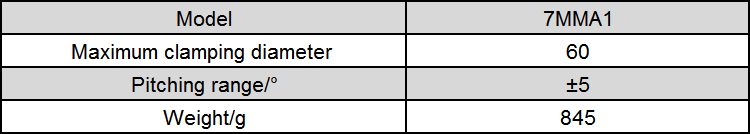

Specifications:

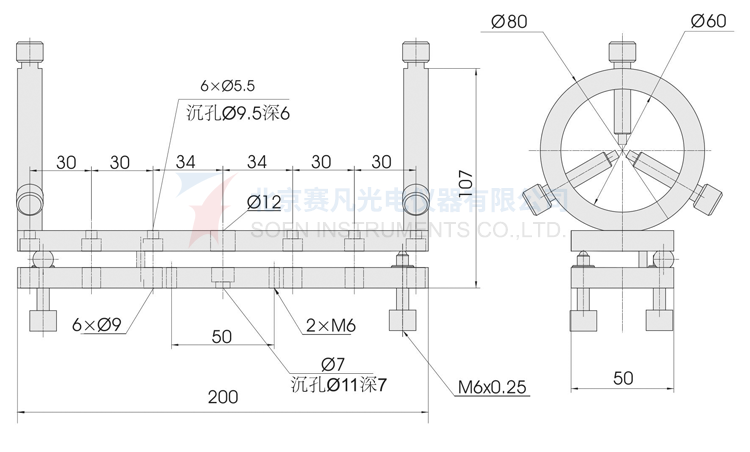

Product drawings:
7MMA1
