Home > PRODUCTS > Opto-mechanics > Adjustable plate holder

    7MMT207/217 Plate Holders

    Model：

    7MMT207、7MMT217

    Characteristics：

    1、For clampng flat optical element; 2、Clamping width can be adjustable and make it versatility.

    Product?Inquiry Product Inquiry
    CAD?Download CAD Download
    Overviews Details

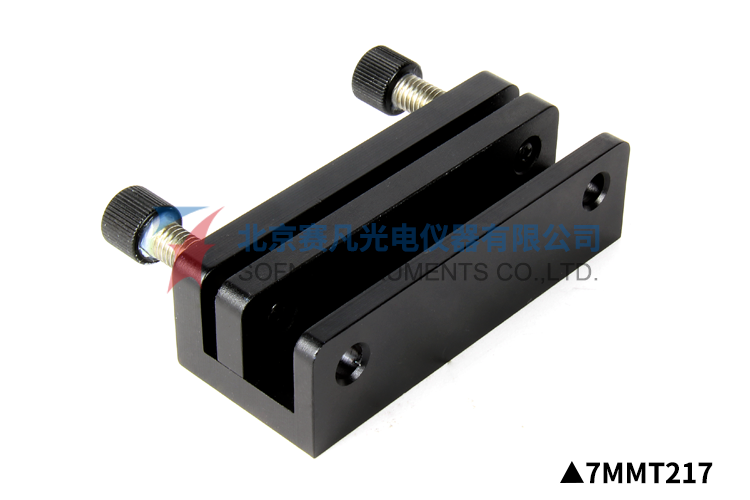

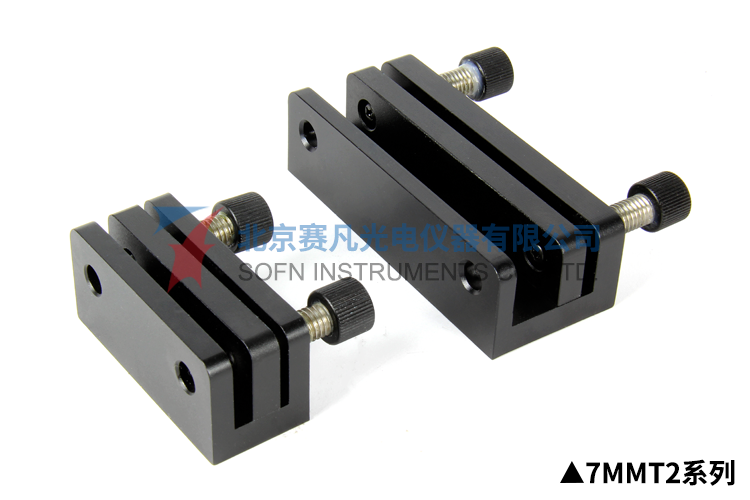

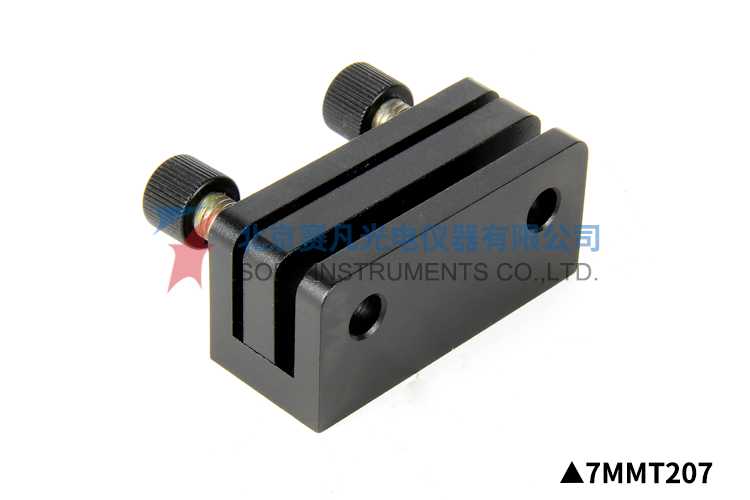

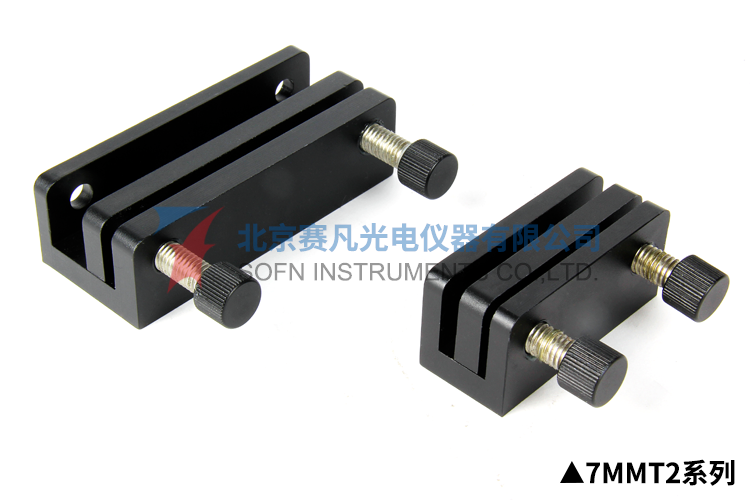

    7MMT207/217 Plate Holders


    Characteristics:

    1、For clampng flat optical element;

    2、Clamping width can be adjustable and make it versatility.


    Ancillary products:

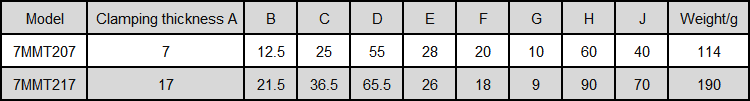

    Specifications:

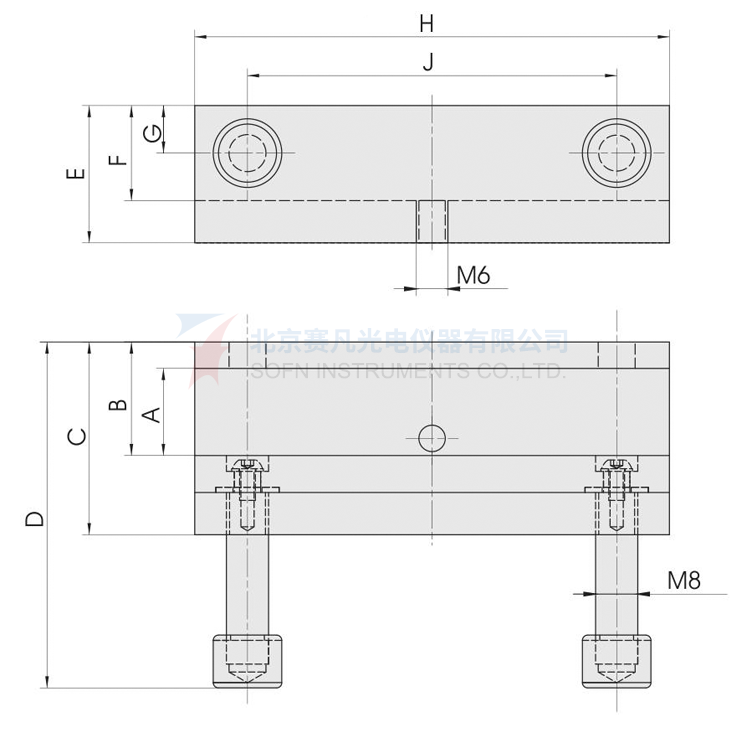

    Product drawings:

    7MMT207、7MMT217
