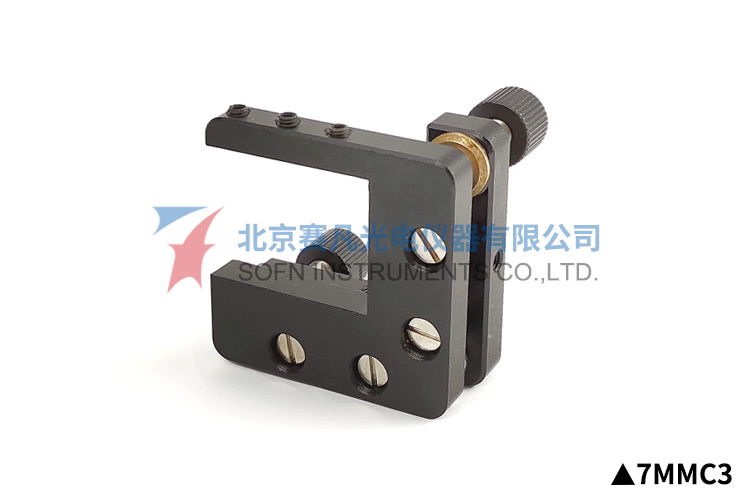

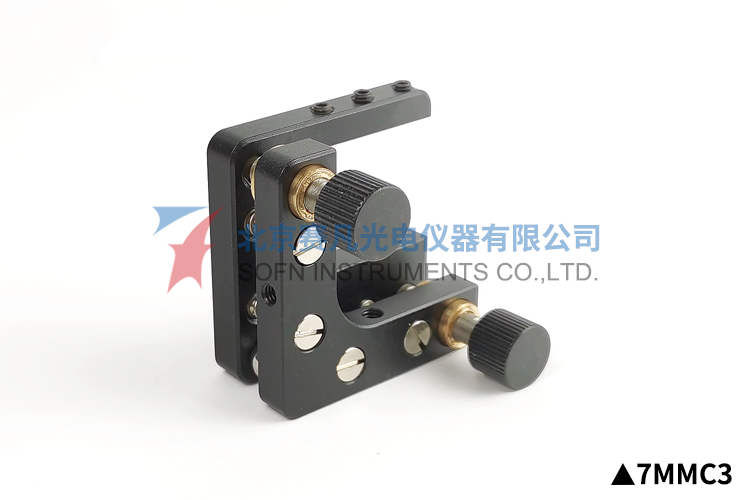

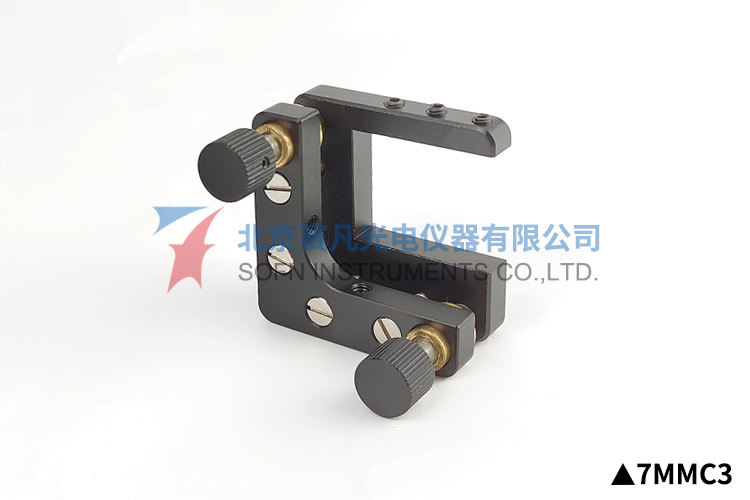

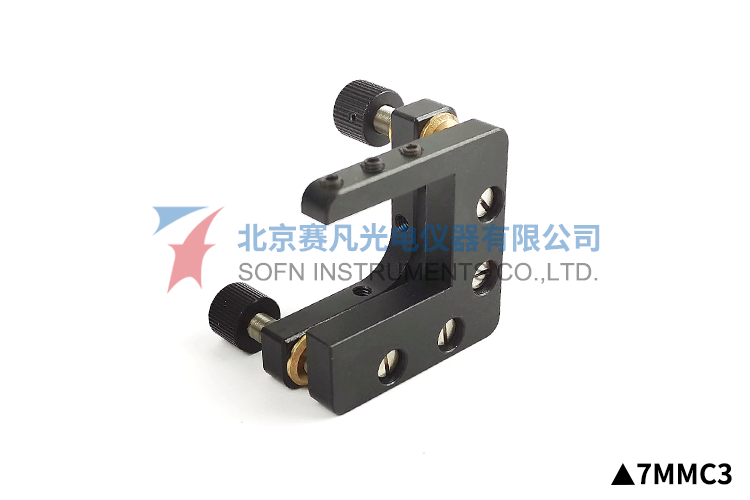

7MMC3 Series Two-dimensional Cylindrical Lens Holders
Model：
7MMC3254、7MMC330
Characteristics：
1、Two-dimensional tilt range of ±3°; 2、M6×0.25 fine thread for adjustment with special copper nut; 3、High performance tension spring for reset with uniform resetting force to reduce stress; 4、Mounting holes in two directions,suitable for different optical path.
7MMC3 Series Two-dimensional Cylindrical Lens Holders
Characteristics:
1、Two-dimensional tilt range of ±3°;
2、M6×0.25 fine thread for adjustment with special copper nut;
3、High performance tension spring for reset with uniform resetting force to reduce stress;
4、Mounting holes in two directions,suitable for different optical path.

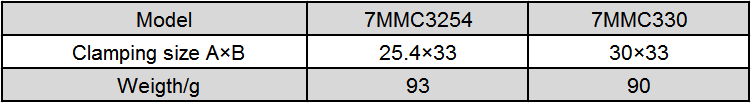

Specifications:

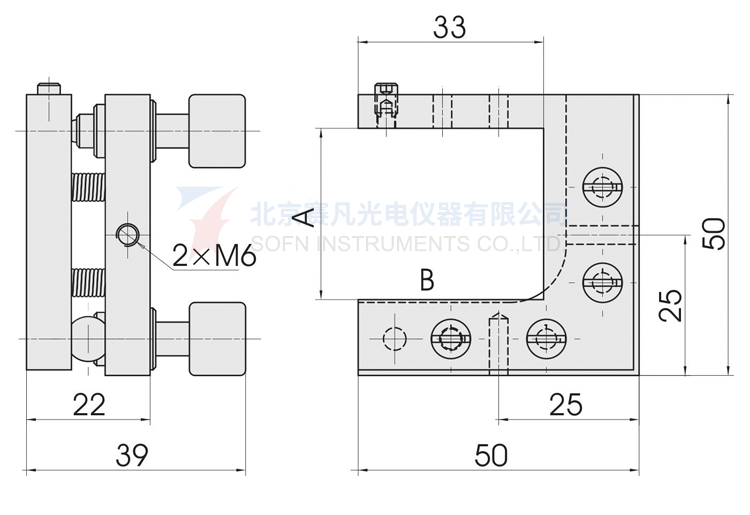

Product drawings:
7MMC3254、7MMC330
