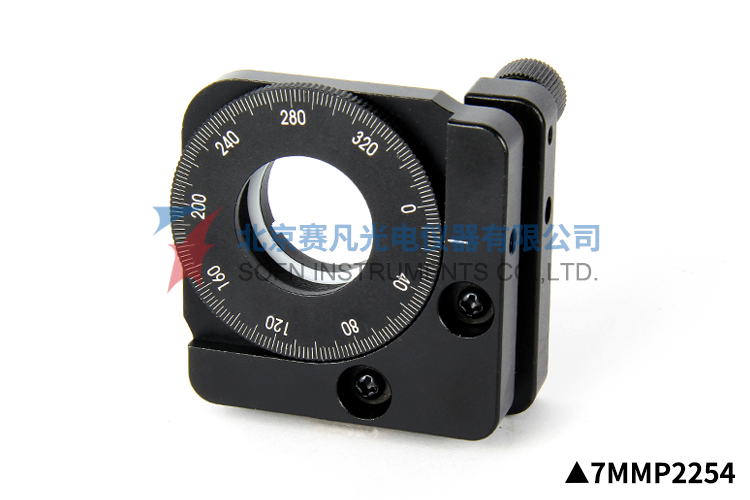

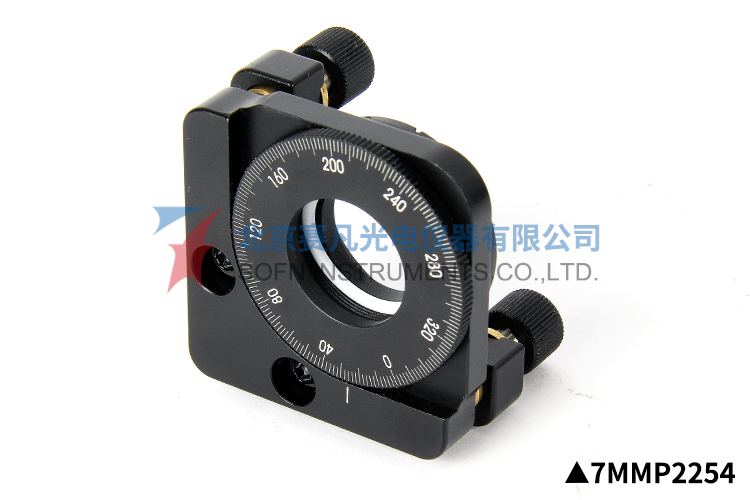

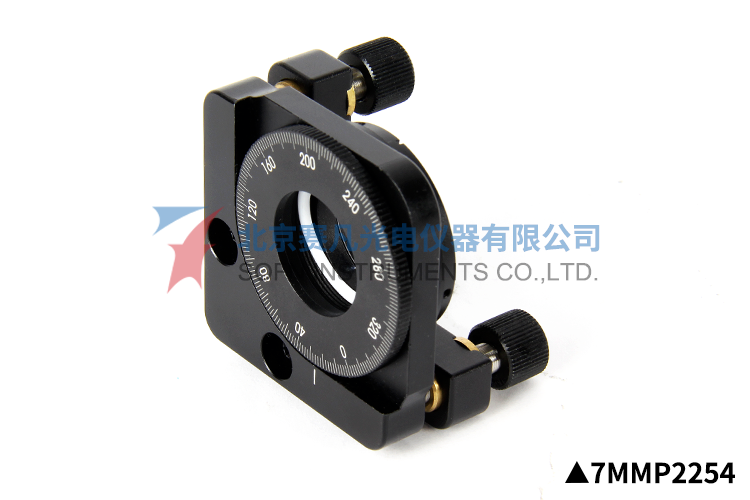

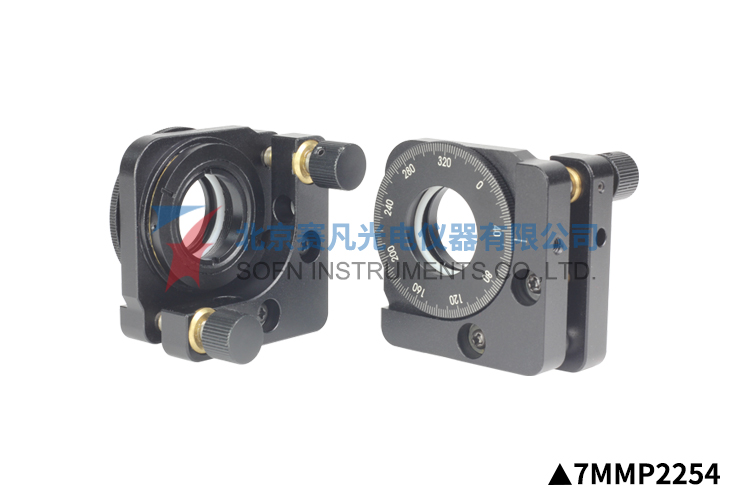

7MMP2254 Polarizer Holder
7MMP2254
1、For mounting 1inch(25.4mm) diameter polarizer,locking by pressure ring; 2、Precision shafting for rotating adjustment,stable and reliable; 3、Circumferential characterization in 360°,convenient for reading; 4、Two-dimensional tilt range ±3°; 5、M6×0.25 fine thread for adjustment with belleville spring for reset,reset force can be adjusted from zero to rigidity.
7MMP2254 Polarizer Holder
Characteristics:
1、For mounting 1inch(25.4mm) diameter polarizer,locking by pressure ring;
2、Precision shafting for rotating adjustment,stable and reliable;
3、Circumferential characterization in 360°,convenient for reading;
4、Two-dimensional tilt range ±3°;
5、M6×0.25 fine thread for adjustment with belleville spring for reset,reset force can be adjusted from zero to rigidity.
Ancillary products:
Specifications:

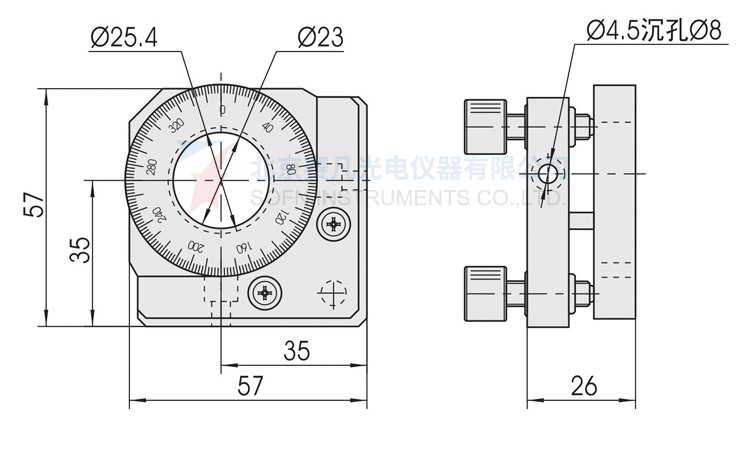

Product drawings:
7MMP2254
