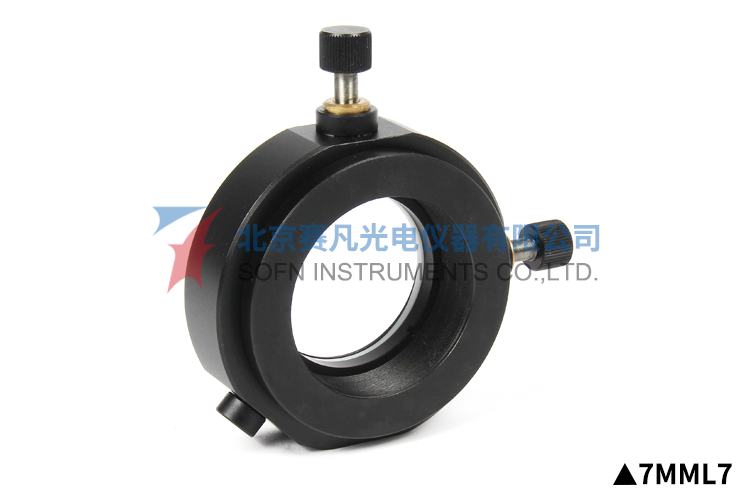

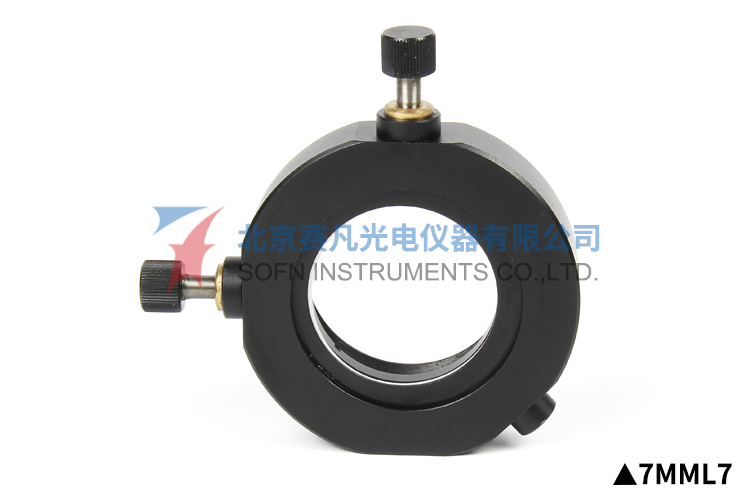

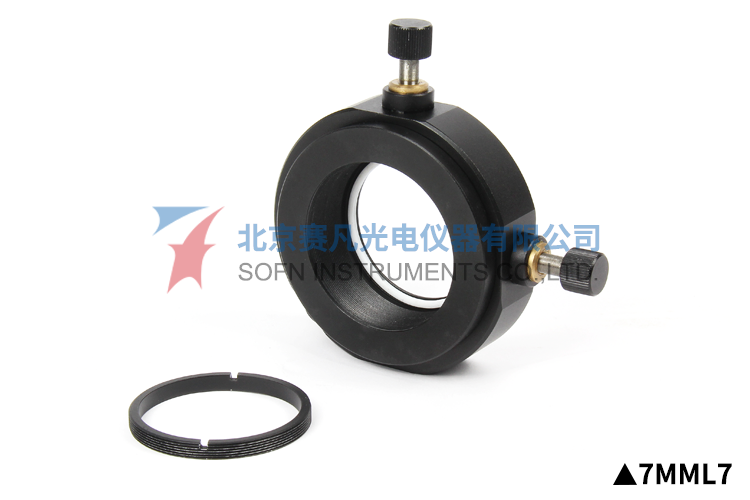

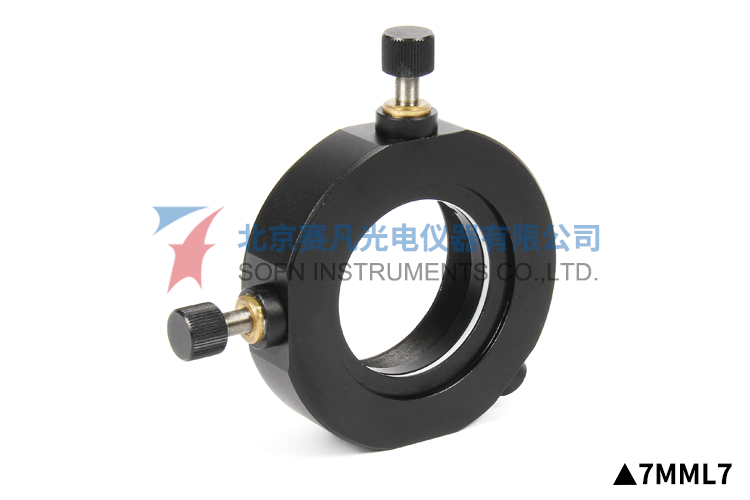

7MML7 Series Two-dimensional Lens Holders
Model：
7MML720、7MML7254、7MML730、7MML740、7MML750、7MML7508
Characteristics：
1、Two-dimensional translations (horizontal and vertical); 2、Pressure spring for reset,detail design to minimize the interference beween the two-dimensional translations; 3、M6×0.25 fine thread for adjustment with special copper nut to keep accuracy.
7MML7 Series Two-dimensional Lens Holders
Characteristics:
1、Two-dimensional translations (horizontal and vertical);
2、Pressure spring for reset,detail design to minimize the interference beween the two-dimensional translations;
3、M6×0.25 fine thread for adjustment with special copper nut to keep accuracy.
Ancillary products:

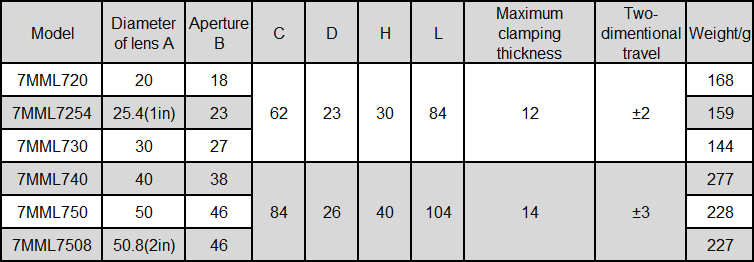

Specifications:

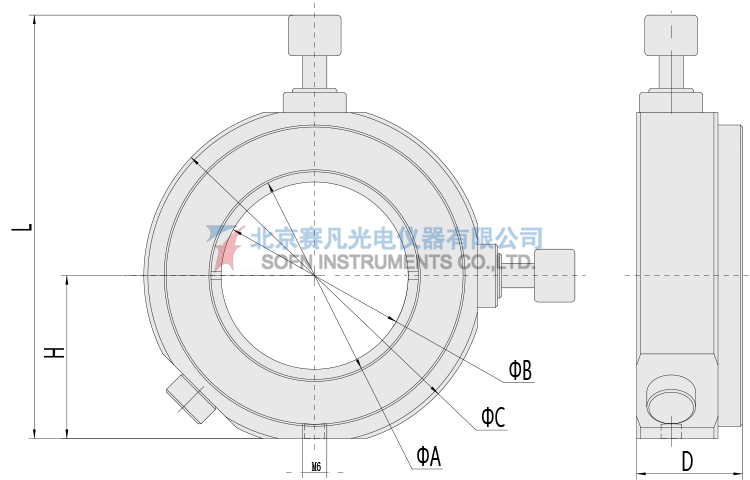

Product drawings:
7MML720、7MML7254、7MML730、7MML740、7MML750、7MML7508
