7MM1050 Two-dimensional Mirror Mount
Model：
7MM1050
Characteristics：
1、Three-dimensional translation and two-dimensional rotation; 2、The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed; 3、Fine thread for adjustment,high resolution; 4、M52×1 standard thread hole,mounting for 50.8mm or 50mm diameter lens,or other products.
7MM1050 Two-dimensional Mirror Mount
Characteristics:
1、Three-dimensional translation and two-dimensional rotation;
2、The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed;
3、Fine thread for adjustment,high resolution;
4、M52×1 standard thread hole,mounting for 50.8mm or 50mm diameter lens,or other products.
Ancillary products:

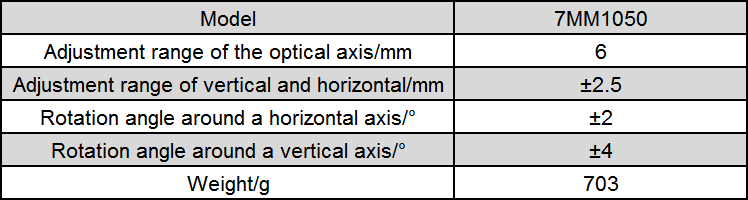

Specifications:

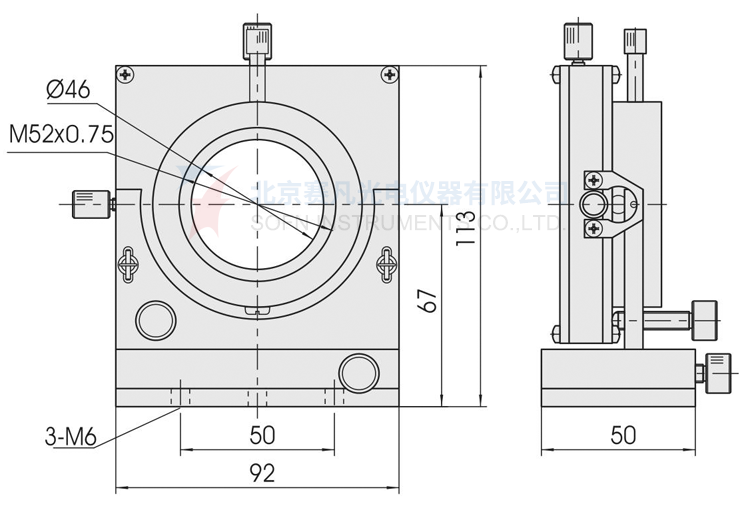

Product drawings:
7MM1050
