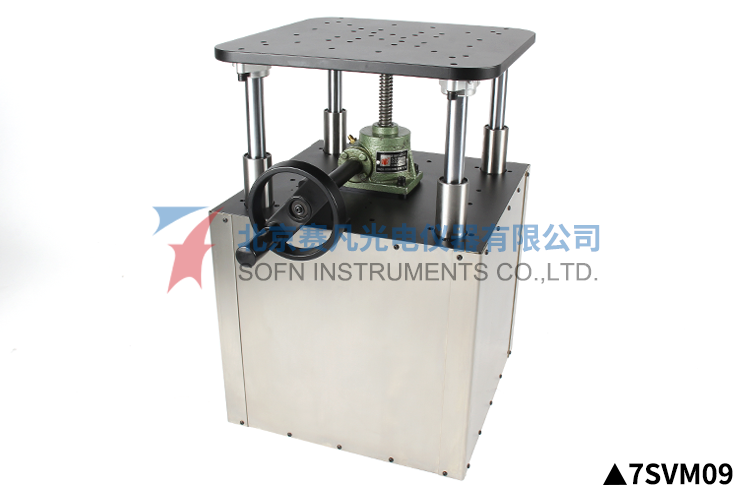

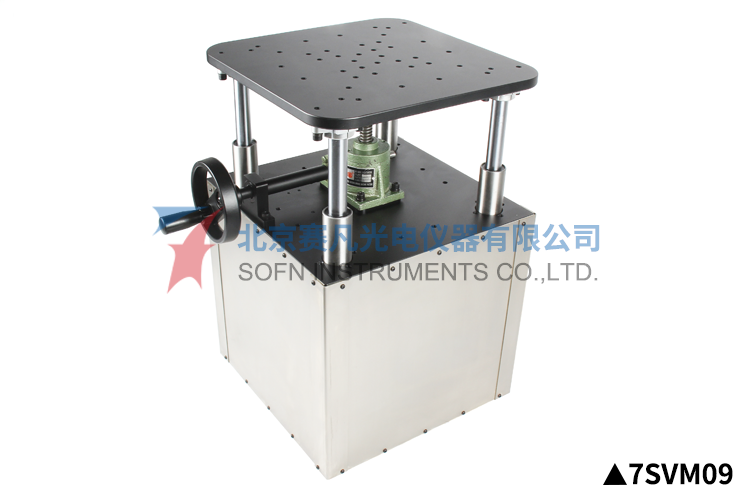

7SVM09 Series Precision Vertical Translation Stages
Model：
7SVM0950、7SVM09100、7SVM0200、7SVM09300、7SVM09400等
Characteristics：
1、Driving force is in the center of horizontal platform without unbalance loading problem; 2、Precision worm gear reducer,big load,fast lifting; 3、Trapezoidal screw rod with self-locking function; 4、Linear bearing guide rail,comfortable movement.
7SVM09 Series Precision Vertical Translation Stages
Characteristics:
1、Driving force is in the center of horizontal platform without unbalance loading problem;
2、Precision worm gear reducer,big load,fast lifting;
3、Trapezoidal screw rod with self-locking function;
4、Linear bearing guide rail,comfortable movement.
Ancillary product:

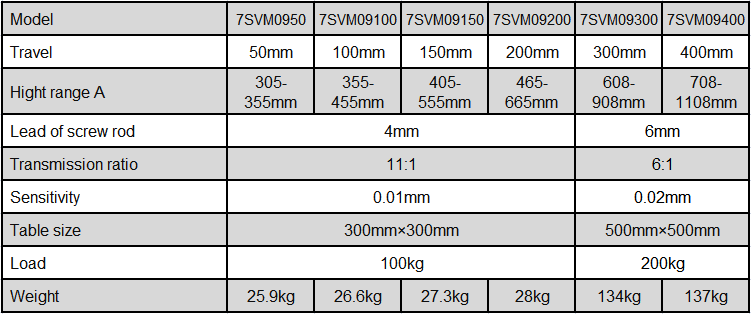

Specifications:

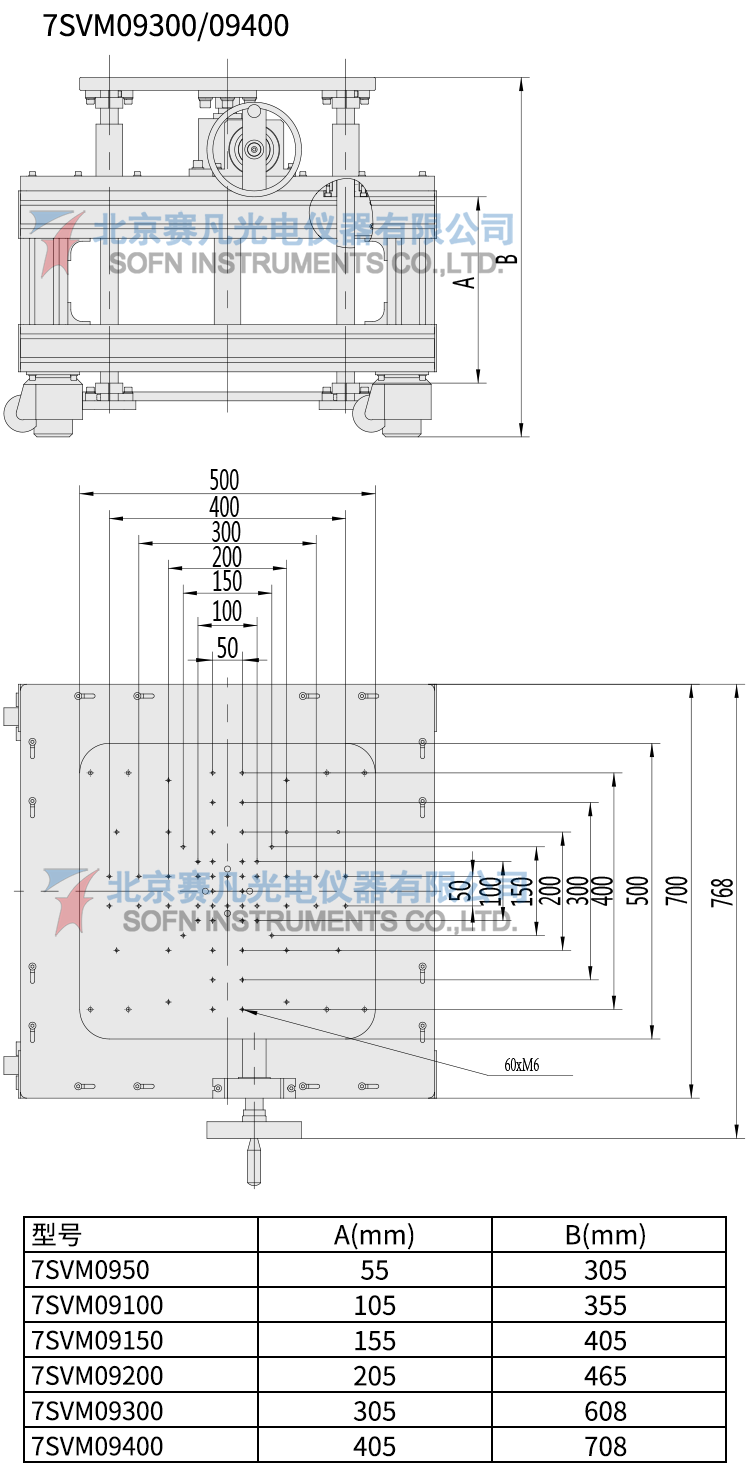

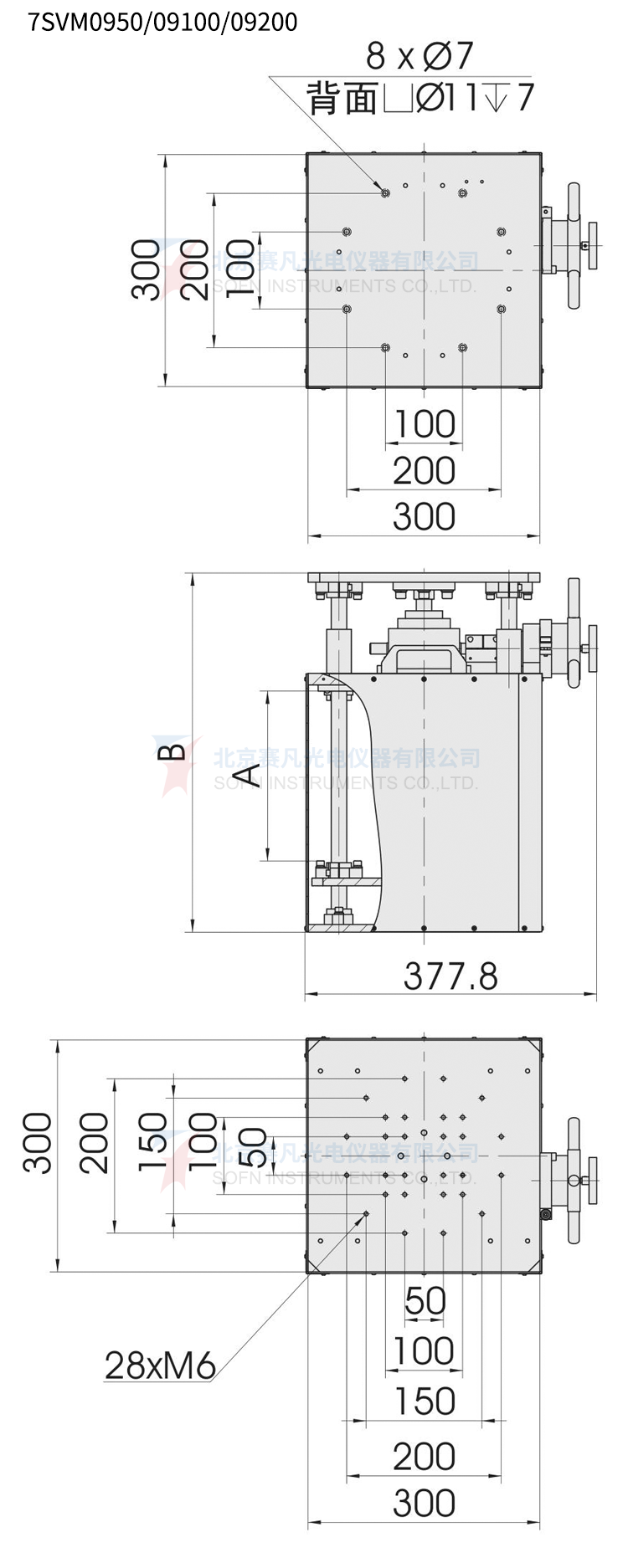

Product drawings:
7SVM0950、7SVM09100、7SVM09150、7SVM09200、7SVM09300、7SVM09400
