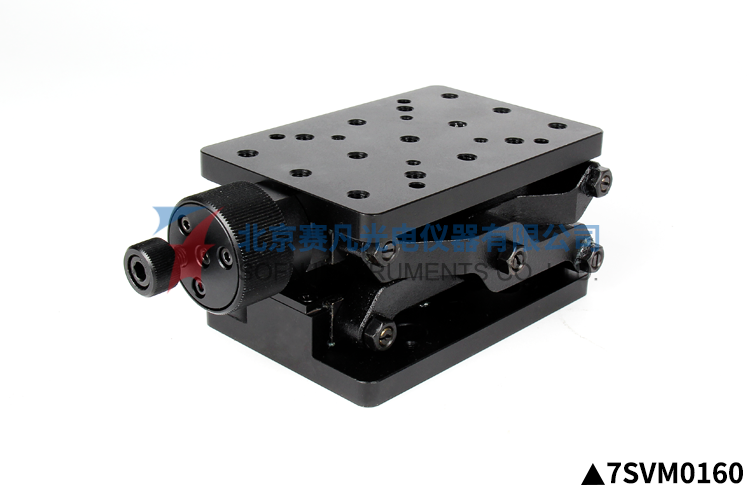

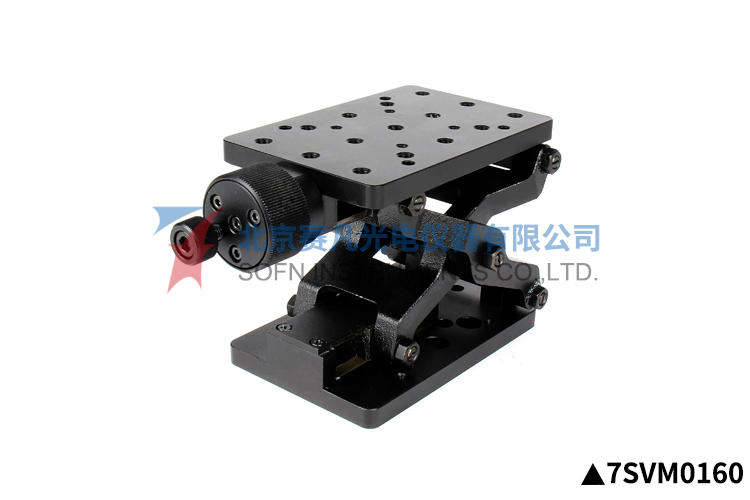

7SVM0160 Precision Vertical Translation Stage
7SVM0160
1、Big travel,not quantitative,vertical translation with heavy load; 2、Scissor support,driving by precision grinding screw rod,dual guide rails with five axes over-location ensures absolute smooth,comfortable,high precision and big load; 3、Multi holes on both upper and lower surfaces,either one can be the installation surface;4、Hand wheel for locking,safe and reliable.
7SVM0160 Precision Vertical Translation Stage
Characteristics:
1、Big travel,not quantitative,vertical translation with heavy load;
2、Scissor support,driving by precision grinding screw rod,dual guide rails with five axes over-location ensures absolute smooth,comfortable,high precision and big load;
3、Multi holes on both upper and lower surfaces,either one can be the installation surface;
4、Hand wheel for locking,safe and reliable.
Ancillary product:

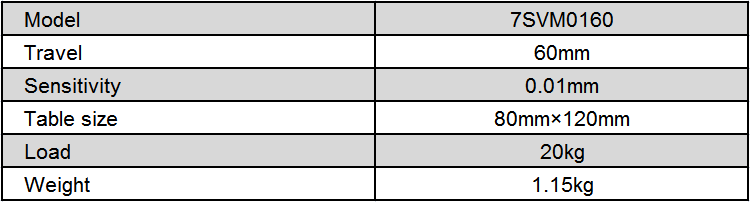

Specifications:

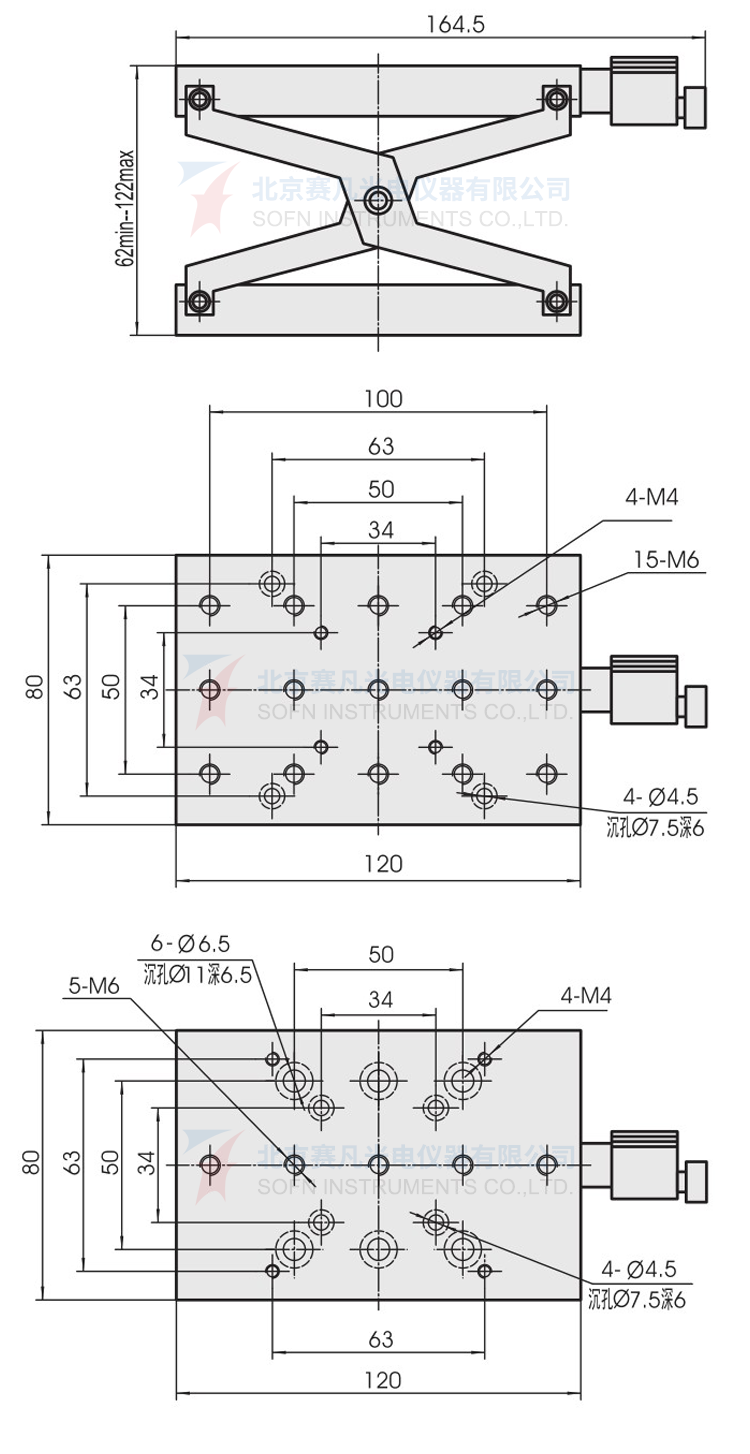

Product drawings:
7SVM0160
