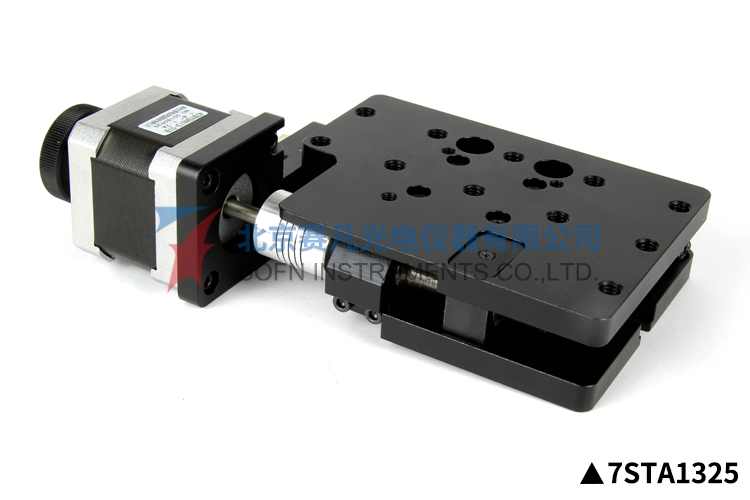

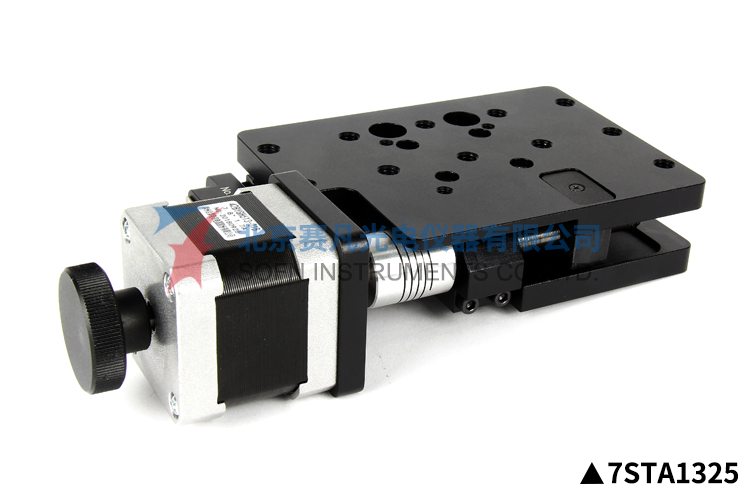

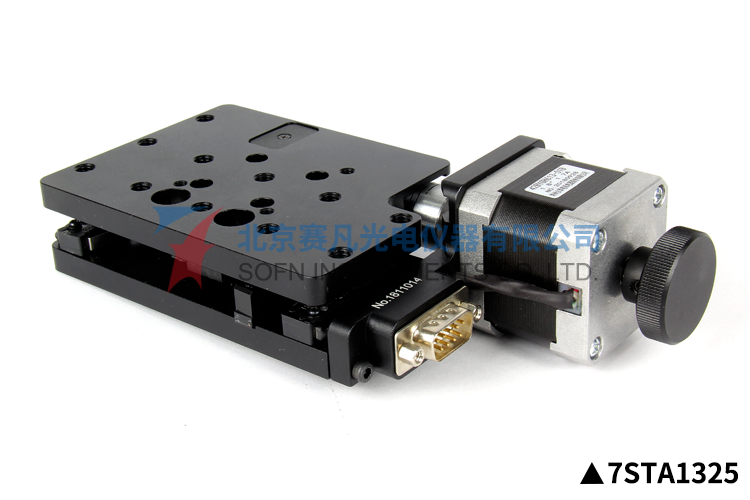

7STA1325 Motorized Precision Translation Stage
7STA1325
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;2、Precision grinding screw rod,high resolution;3、Ultra-thin design with super-thin linear guide,high precision motion;4、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;5、It is equippde with a hand wheel,easy to asjust;6、Hand wheel to adjust by manual;
7STA1325 Motorized Precision Translation Stage
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Precision grinding screw rod,high resolution;
3、Ultra-thin design with super-thin linear guide,high precision motion;
4、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
5、It is equippde with a hand wheel,easy to asjust;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes with standard distance are distributed on the surface and the base for installation and combination.
Ancillary products:

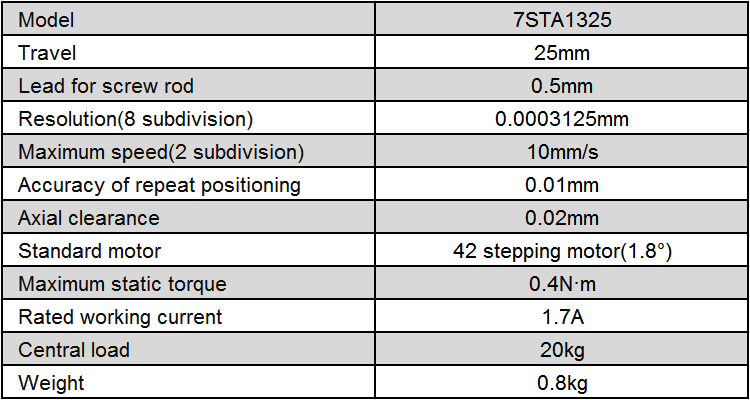

Specifications:

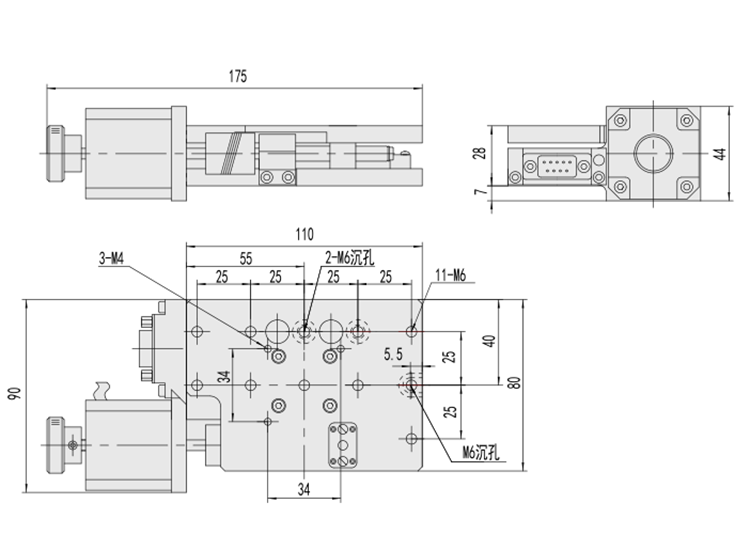

Product drawings:
7STA1325
