7SWM0501/7SWM0502 Five-Axis Translation Stage
7SWM0501（右手型）/7SWM0502（左手型）
1、Compact structure design,three-axes translation,pitch and rotation; 2、Precision steel ball with grinding steel rods,high precision and comfortable movement; 3、Micrometer drive for three-axes translation,quantitative reading,spring reset,eliminates backlash; 4、Pitching and rotation drive by M6×0.25 fine screw rod,high-quality dish spring reset,firm stability; 5、Design for pair of hands,both micrometers are arranged in the same horizontal plane,convenient to operte; 6、Vertical axis rigidly drives lifting,much larger than spring lifting load bearing.

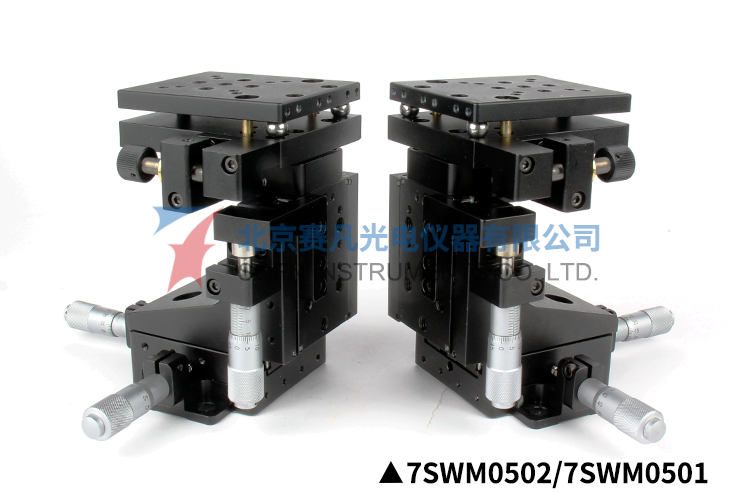

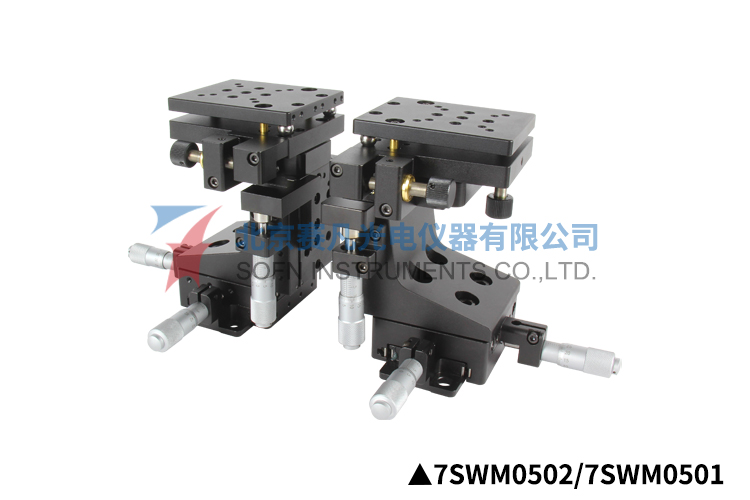

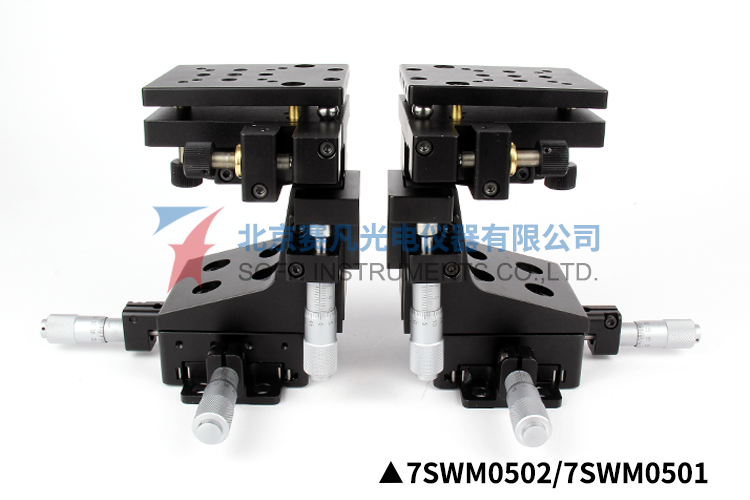

7SWM0501 Five-axis Translation stage (right-hand)

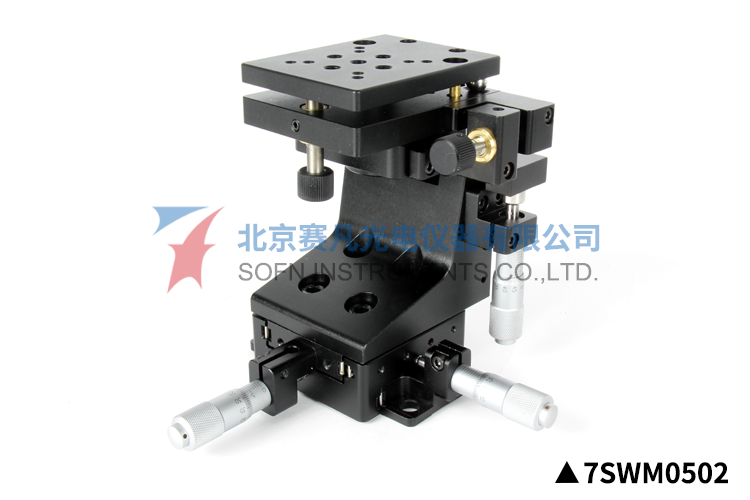

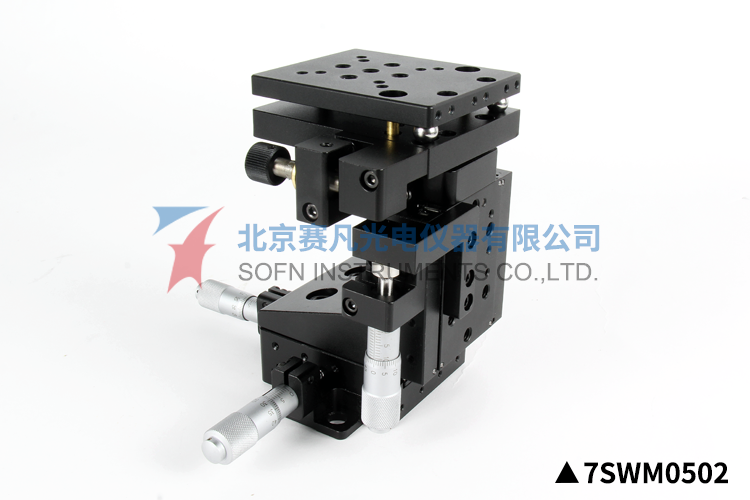

7SWM0502 Five-axis Translation stage (left-hand)
Characteristics:
1、Compact structure design,three-axes translation,pitch and rotation;
2、Precision steel ball with grinding steel rods,high precision and comfortable movement;
3、Micrometer drive for three-axes translation,quantitative reading,spring reset,eliminates backlash;
4、Pitching and rotation drive by M6×0.25 fine screw rod,high-quality dish spring reset,firm stability;
5、Design for pair of hands,both micrometers are arranged in the same horizontal plane,convenient to operte;
6、Vertical axis rigidly drives lifting,much larger than spring lifting load bearing.
Ancillary products:

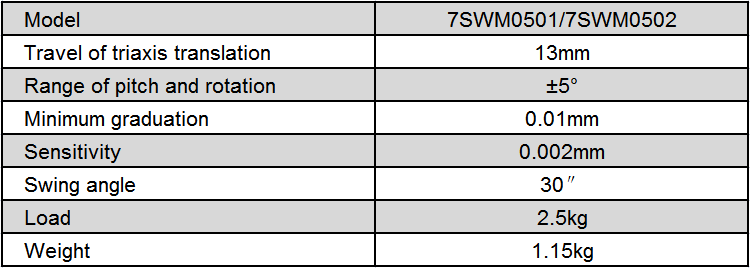

Specifications:

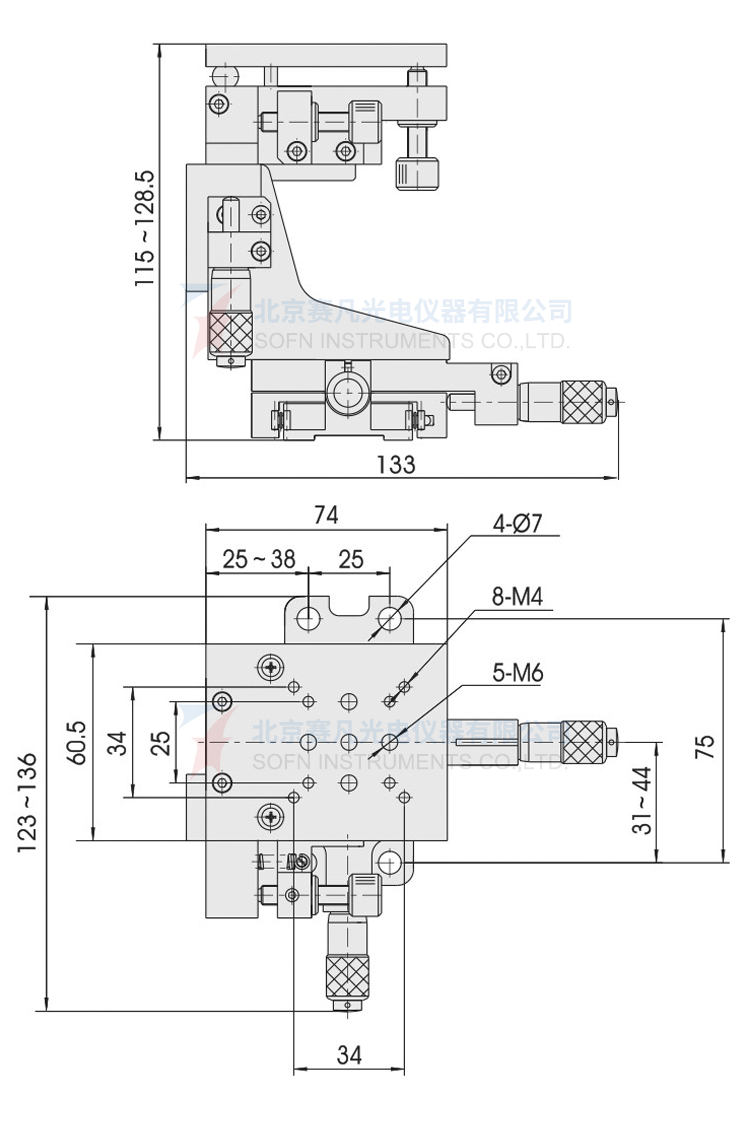

Product drawings:
7SWM0501、7SWM0502
