7SWM01 series Biaxial Translation Stages
7SWM01113（右手型）/7SWM01213（左手型）
1、Compact structure design, two axes translation adjustment in small space, high precision of orthogonal; 2、Precision steel ball with grinding steel rods, high precision and comfortable movement; 3、Micrometer drive for quantitative reading spring reset, eliminates backlash; 4、Design for pair of hands, both micrometers are arranged in the same horizontal plane, conventent to operate.

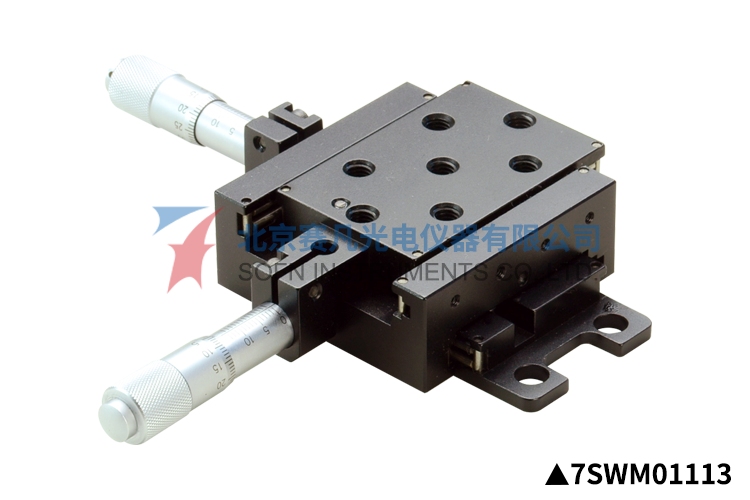

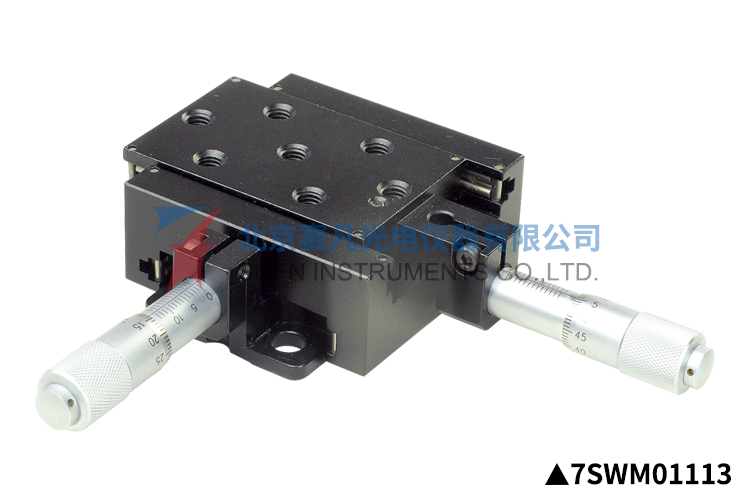

7SWM01113 Biaxial Translation Stage (right-hand)

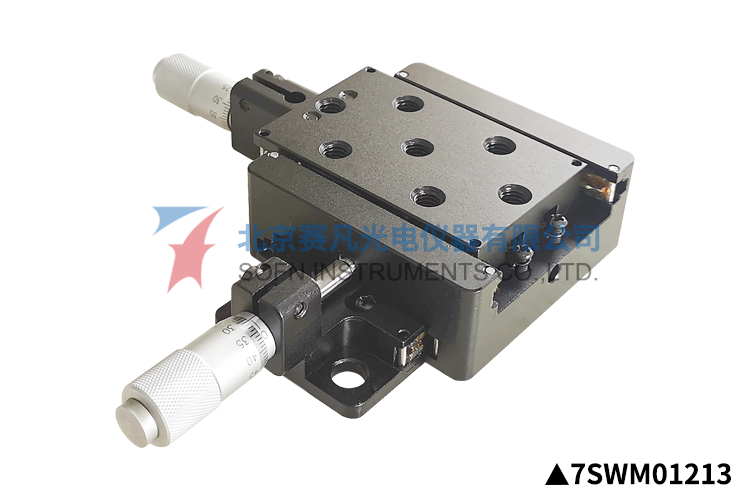

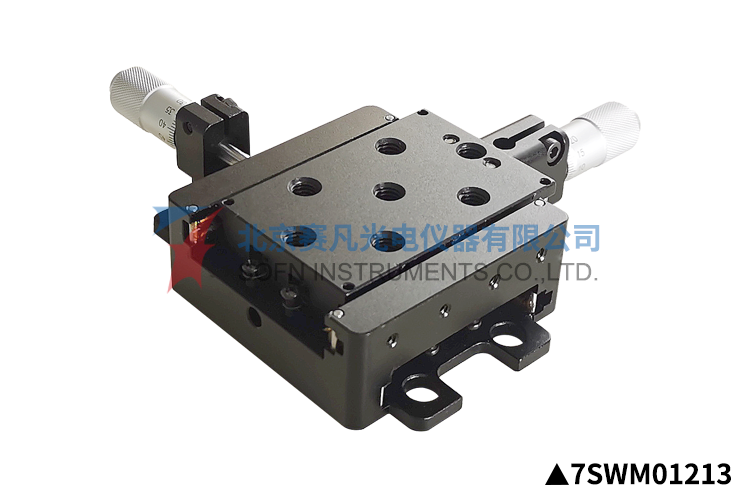

7SWM01213 Biaxial Translation Stage (left-hand)
Characteristics:
1、Compact structure design, two axes translation adjustment in small space, high precision of orthogonal;
2、Precision steel ball with grinding steel rods, high precision and comfortable movement;
3、Micrometer drive for quantitative reading spring reset, eliminates backlash;
4、Design for pair of hands, both micrometers are arranged in the same horizontal plane, conventent to operate.

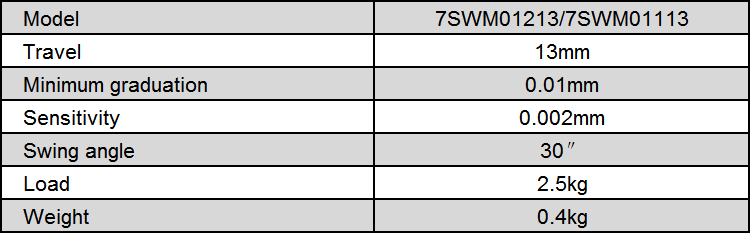

Specifications:

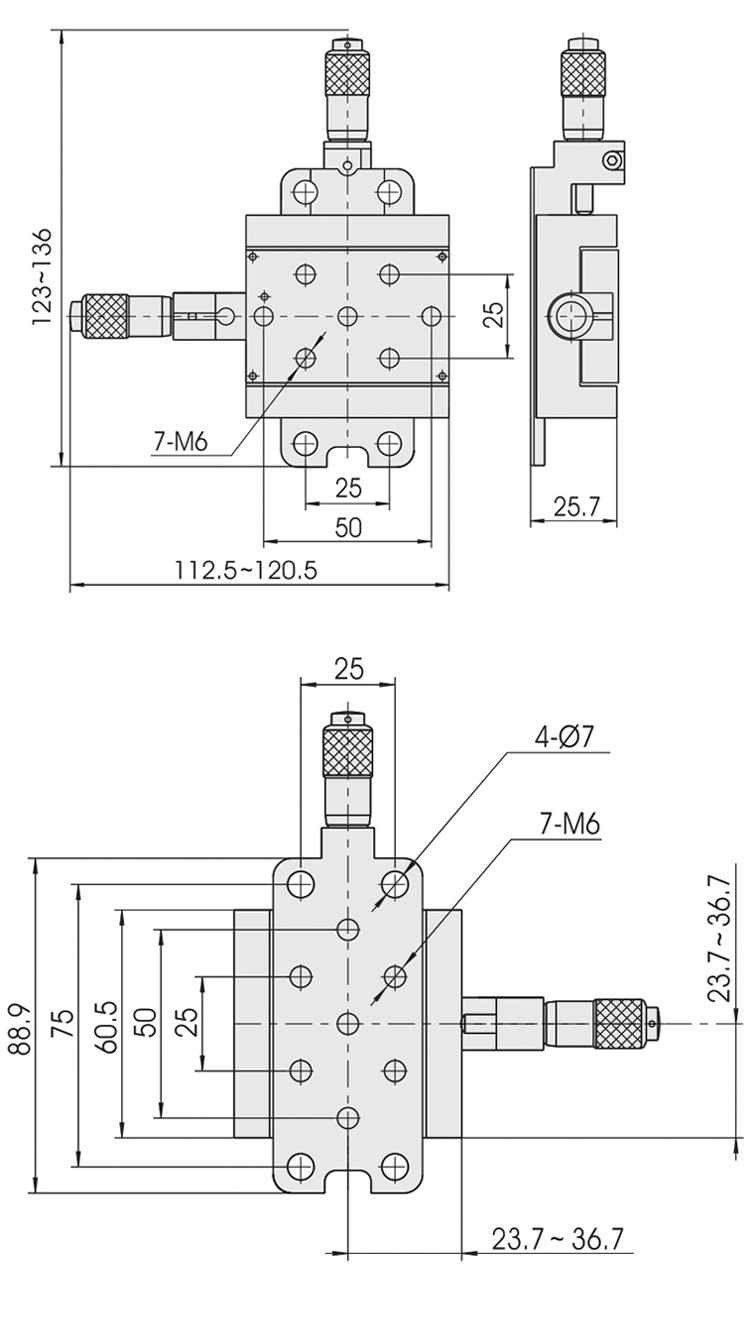

Product drawings:
7SWM01113、7SWM01213
