7STM0655 Precision Translation Stage
7STM0655
1、Dovetail guid with big load bearing; 2、Ttanslation adjustment by helical gear and slant rack with large driving force; 3、Large handwheels on both sides,reliable and flexible rotation; 4、Handwheel for reliable locking; 5、Vernier reading,adjusts the quantitative reading; 6、Mounting holes with standard distance are distributde on the surface and the base for installation and combination; 7、Can be combined with other series stages to compose a multi dimensional adjusting rack.
7STM0655 Weight Precision Translation Stage
Characteristics:
1、Dovetail guid with big load bearing;
2、Ttanslation adjustment by helical gear and slant rack with large driving force;
3、Large handwheels on both sides,reliable and flexible rotation;
4、Handwheel for reliable locking;
5、Vernier reading,adjusts the quantitative reading;
6、Mounting holes with standard distance are distributde on the surface and the base for installation and combination;
7、Can be combined with other series stages to compose a multi dimensional adjusting rack.
Specifications:

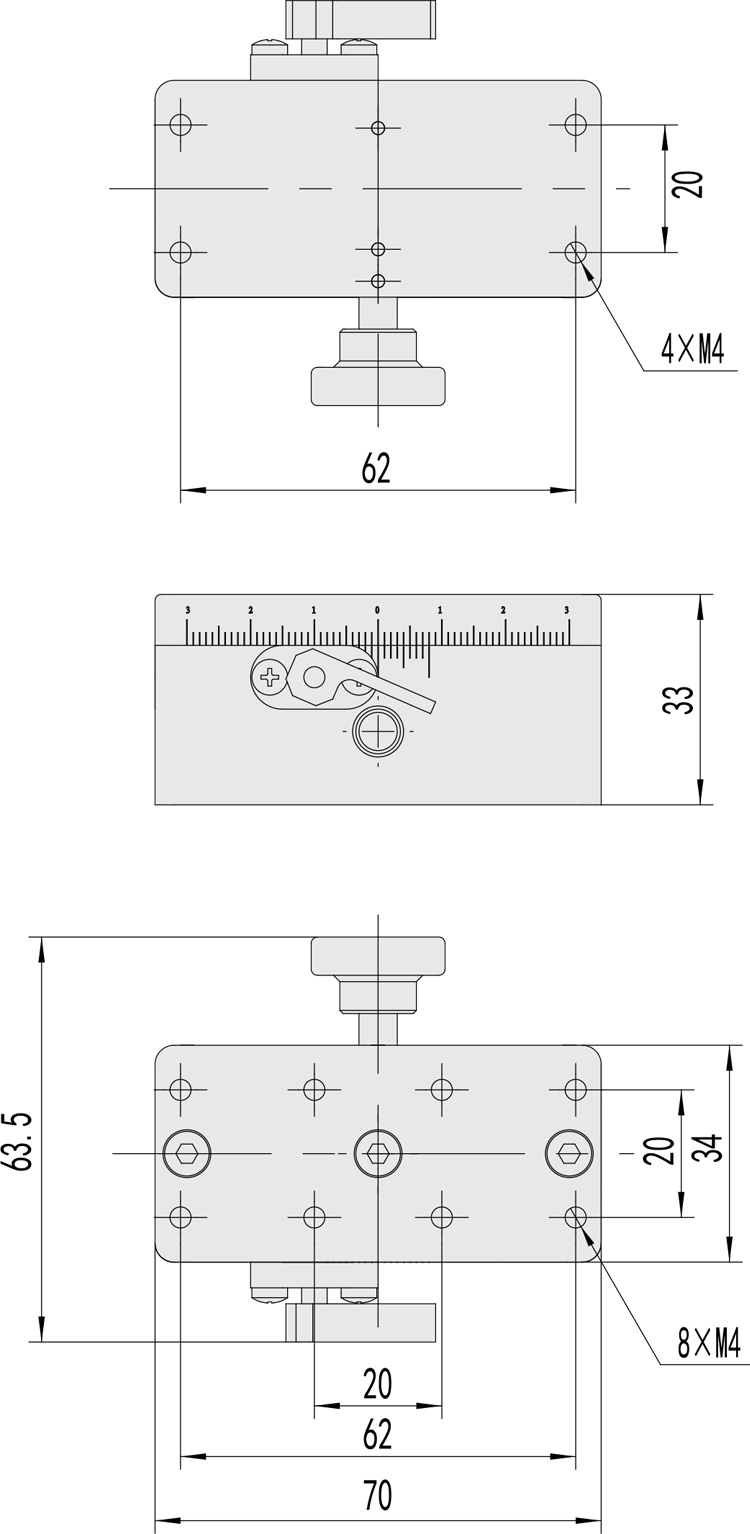

Product drawings:
7STM0655
